In modern industrial and electronic equipment, connectors are key components to achieve electrical transmission and signal transmission. With the advancement of technology, various types of connectors are widely used in different fields, and the M16 welded circular connector, as a high-performance, high-reliability connector, is favored by many industries for its stability, durability and a wide range of application scenarios. So, what is the M16 welded circular connector?
一、 The definition of M16 welded circular connector
The M16 welded circular connector is a circular connector in the M16 dimension (i.e., 16 mm external thread diameter) that uses welding technology to connect the cable to the connector terminal. The "welded" nature of these connectors means that they are electrically connected by welding, providing greater connection stability than traditional plug and pull connectors, especially for applications requiring high current transmission, vibration resistance, and high temperature resistance.
1.M16 size: The "16" of the M16 connector refers to the external thread size of the connector is 16mm. This size is suitable for medium current transmission requirements.
2. Welded connection: Welded connector uses welding technology to connect the wire end of the cable to the connector terminal. The welding method has higher stability and longer service life than the plug and pull connection method.
3. Round design: M16 welded connectors are usually designed with a round shape and have a compact, robust structure, which is easy to install and fix in a variety of equipment.
二、 The main characteristics of M16 welded circular connector
The M16 welded circular connector is widely used in various industrial and electrical systems because of its unique design and excellent performance. Here are a few notable features of the connector:
1. Stability of welding connection：M16 welded connectors are welded in a way that gives them greater stability than plug-in connectors. Welded connections can effectively avoid electrical failures caused by vibration or poor contact, especially for equipment requiring long-term stable operation.
2. High current carrying capacity：M16 welded connectors typically support higher currents (e.g., 10A to 50A) and are suitable for applications that require higher power transmission. Its strong current carrying capacity makes it ideal for many industrial equipment, power systems and high power equipment.
3. High protection performance：The M16 welded circular connector is usually designed with a high level of protection, such as IP67 or IP68, which means that it can effectively prevent the intrusion of water and dust, suitable for use in harsh environments, and ensure long-term stable operation.
4. High temperature and corrosion resistance：M16 welded connectors with metal housing perform well in high temperature environments and have strong high temperature resistance. At the same time, some models also use corrosion resistant materials, so that they can be used for a long time in the ocean or more corrosive environment.
5. Compact design：The M16 connector has a circular design and compact size, making it easy to install and secure in tight Spaces. This makes it useful in many space-constrained applications.
SKM16 Series M16 Connectors Regular Overmolded 2PIN Male Solder Type M16*0.75 With Short Shield

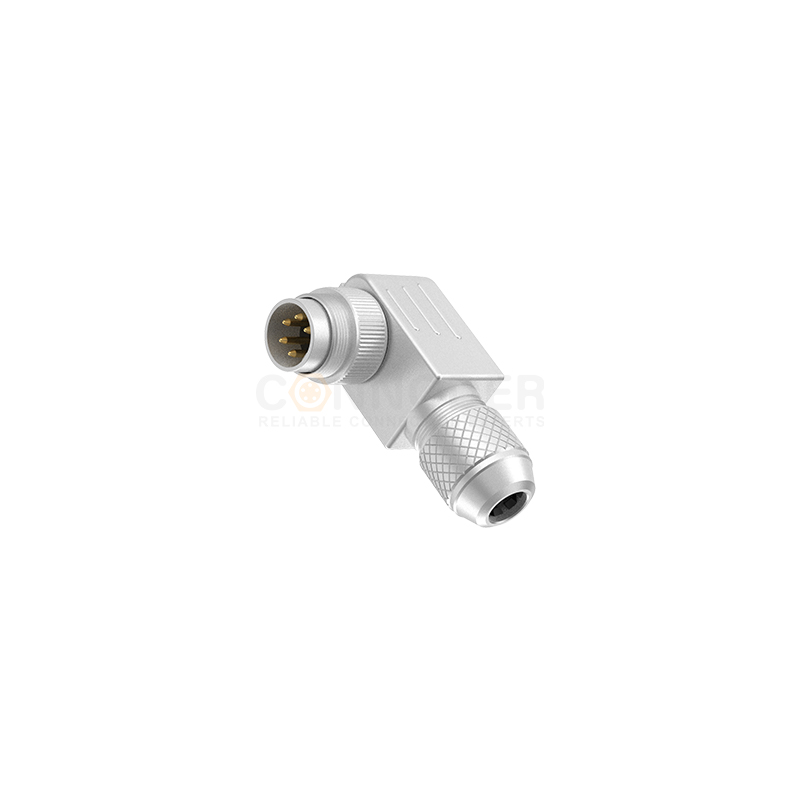

SKM16 Series M16 Connectors Right Angle Metal Assembled 8PIN Male Solder Type PG9"
SKM16 Series M16 Connectors Right Angle Metal Assembled 5PIN Male Solder Type PG9"
SKM16 Series M16 Connectors Regular Overmolded 19PIN Male Solder Type M18*0.75 With Short Shield
SKM16 Series M16 Connectors Regular Overmolded 2PIN Male Solder Type With Short Shield
SKM16 Series M16 Connectors Regular Overmolded 4PIN Male Solder Type M16*0.75 With Short Shield
SKM16 Series M16 Connectors Regular Overmolded 3PIN Male Solder Type M16*0.75 With Short Shield
SKM16 Series M16 Connectors Right Angle Metal Assembled 19PIN Male Solder Type PG9
SKM16 Series M16 Connectors Regular Overmolded 8PIN Male Solder Type M16*0.75 With Short Shield
