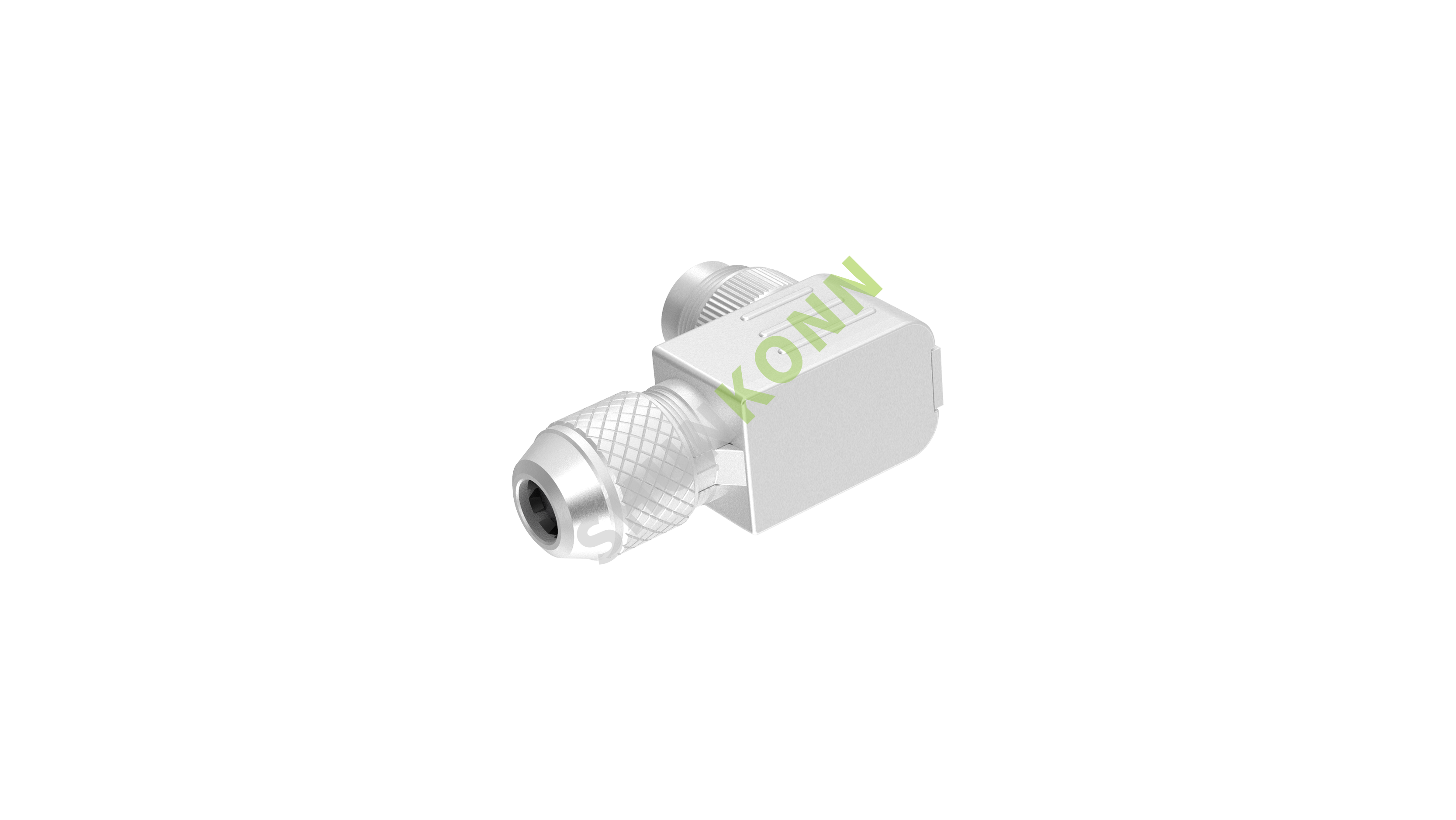

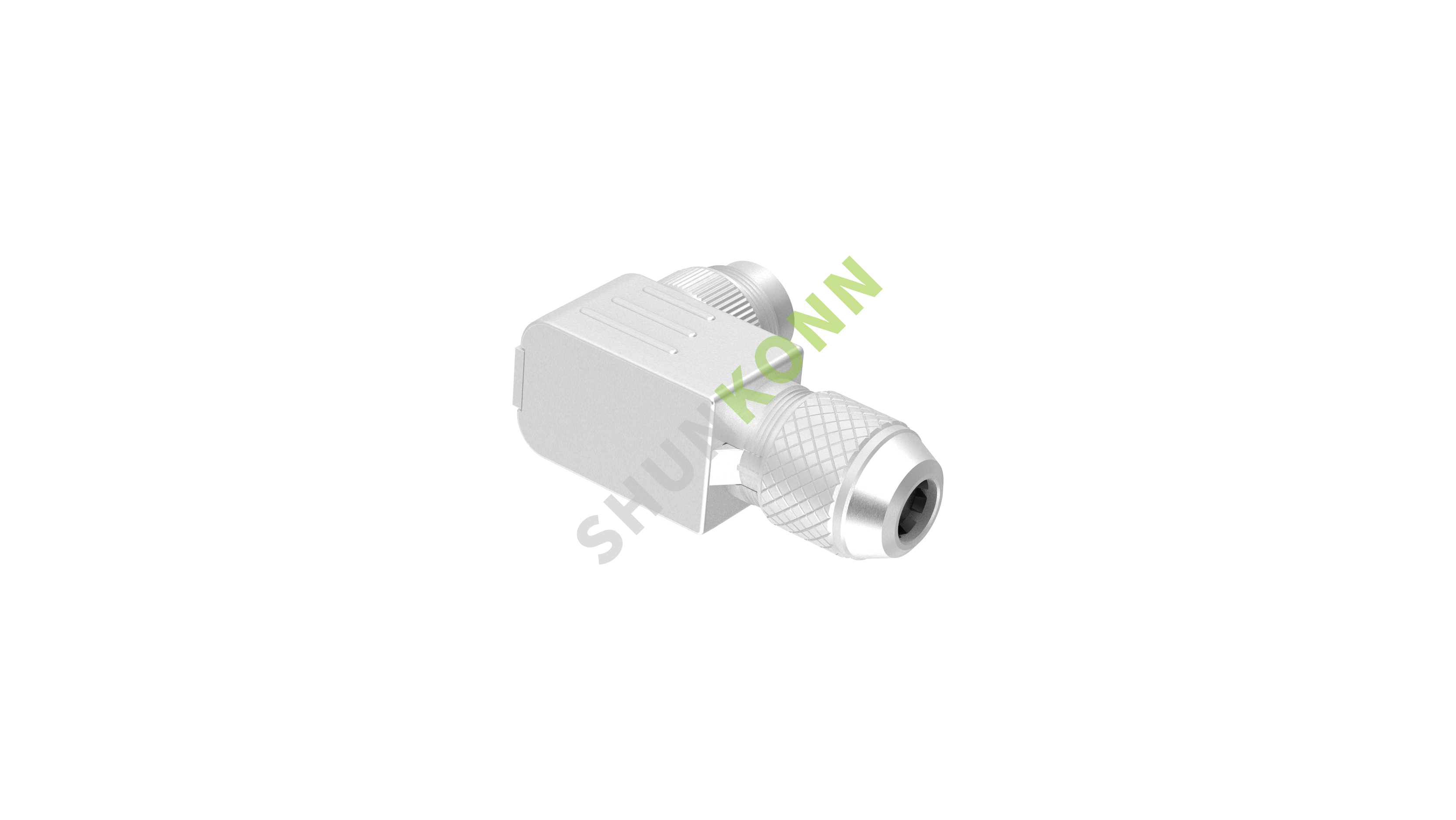

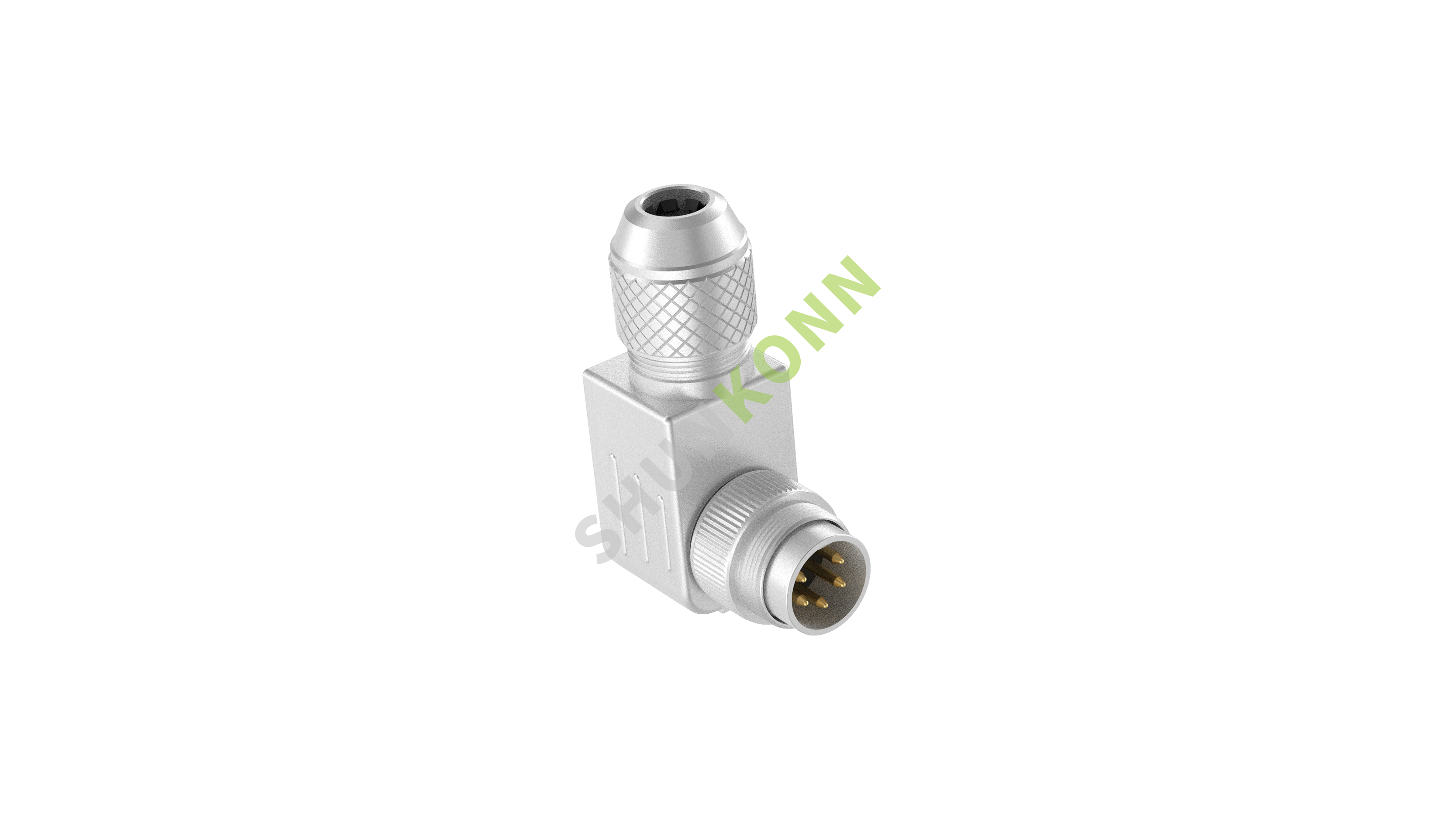

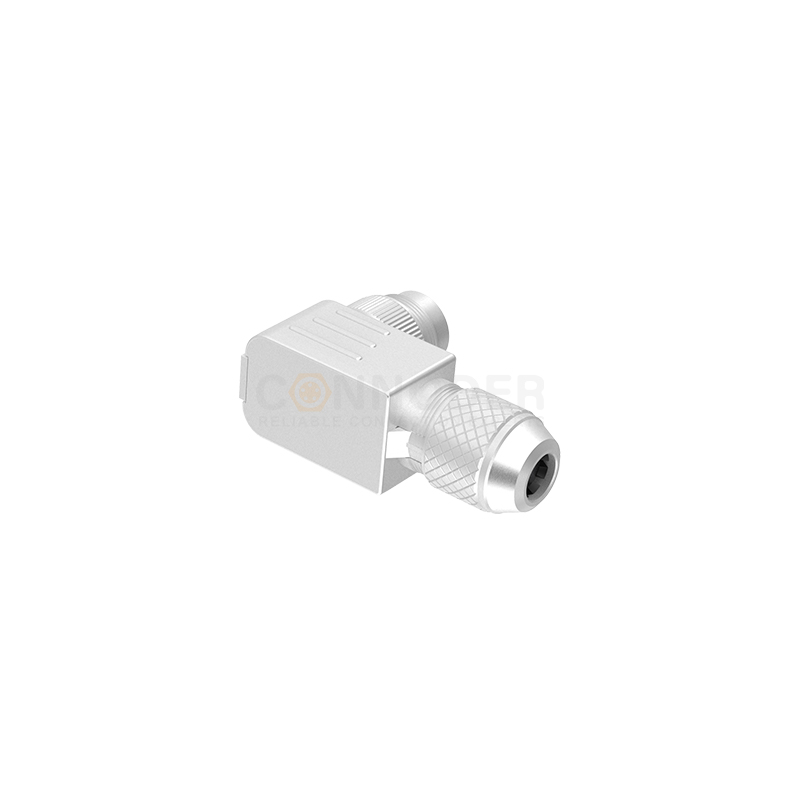

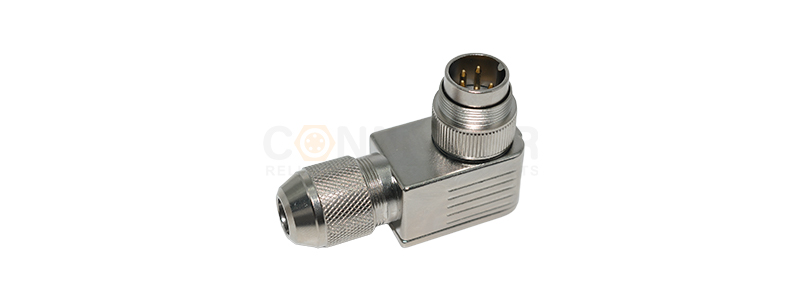

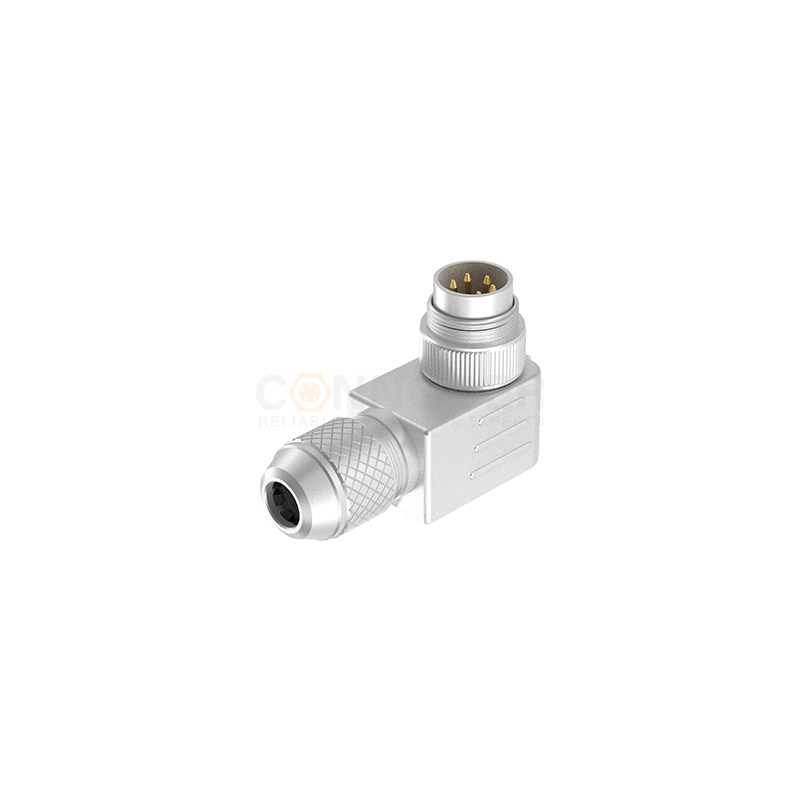

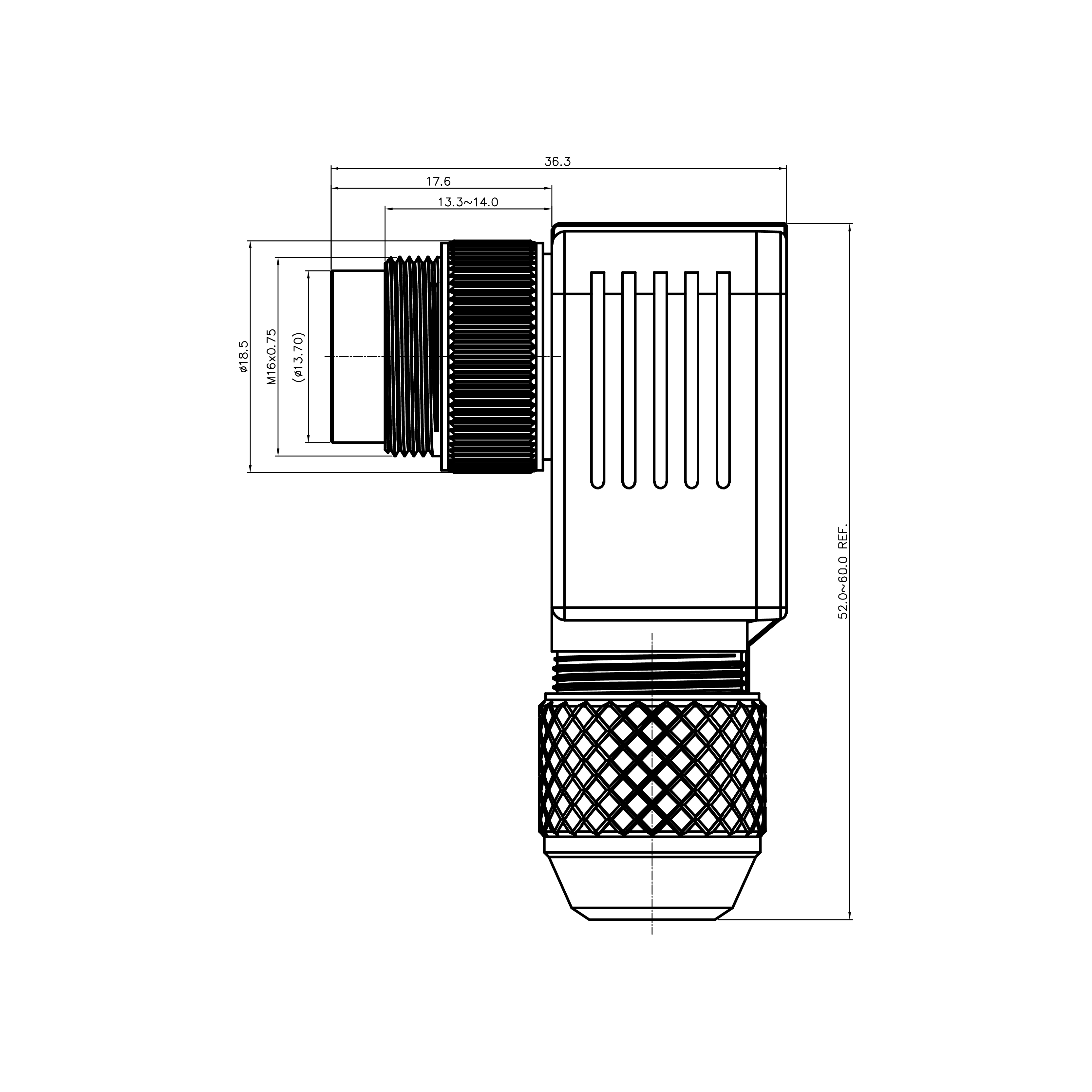

The male end of the M16 connector features a bent - angle design and is made of zinc - alloy material. It combines structural strength with space adaptability. Paired with M16*0.75 standard threads, it ensures stable installation and saves wiring space. With the flexibility to choose from 2 - 24 cores, it can meet different signal and circuit transmission requirements. The wire - soldering connection guarantees a tight fit between the wire and the terminal, reducing transmission losses. Its industrial - grade specifications are suitable for various equipment interfaces. It is widely used in scenarios such as instruments, meters, and automation equipment, providing reliable connection solutions for complex wiring environments.

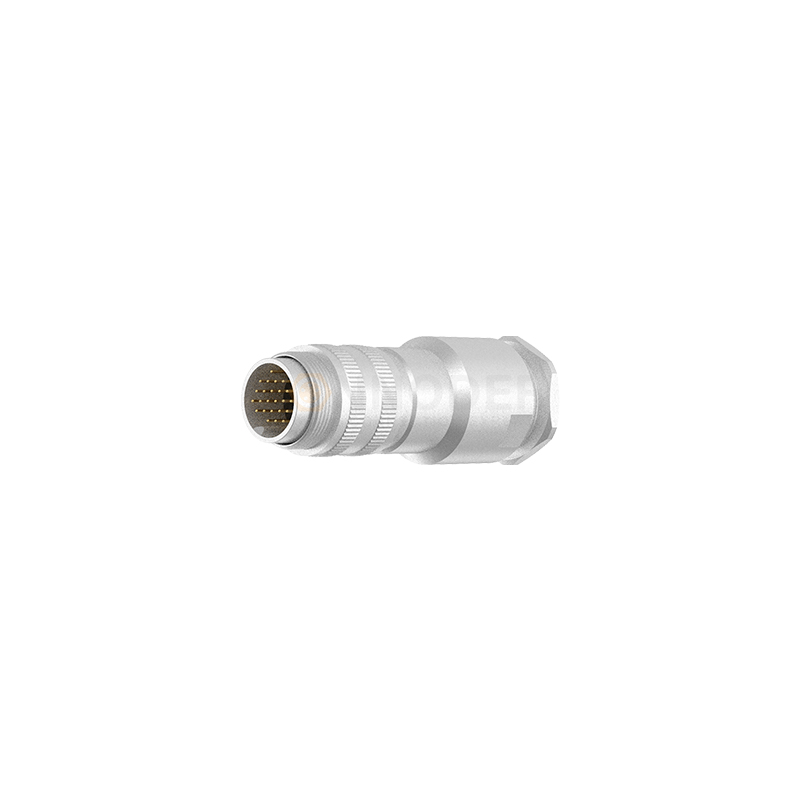

☑ The male end of the M16 circular connector is equipped with a full - metal housing, boasting a sturdy structure and impact resistance. Paired with M160.75 threads and PG13.5 specifications, it is dust - proof and waterproof, suitable for harsh industrial environments.
☑ The male M16 connector with a full - metal housing features a threaded - locking design that precisely conforms to the M160.75 standard. With the addition of the PG13.5 sealing structure, it ensures smooth insertion and extraction, as well as a secure connection with interference - free signal transmission.☑ The M160.75 threads combined with the PG13.5 cable - outlet specifications make the full - metal male connector easy to install. It is compatible with various cable types, allowing for flexible layout in automation equipment.
☑ The full - metal housing endows the male M16 connector with excellent corrosion and aging resistance. The M160.75 and PG13.5 specifications have strong adaptability, enabling the connector to maintain stable performance even after long - term use.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
