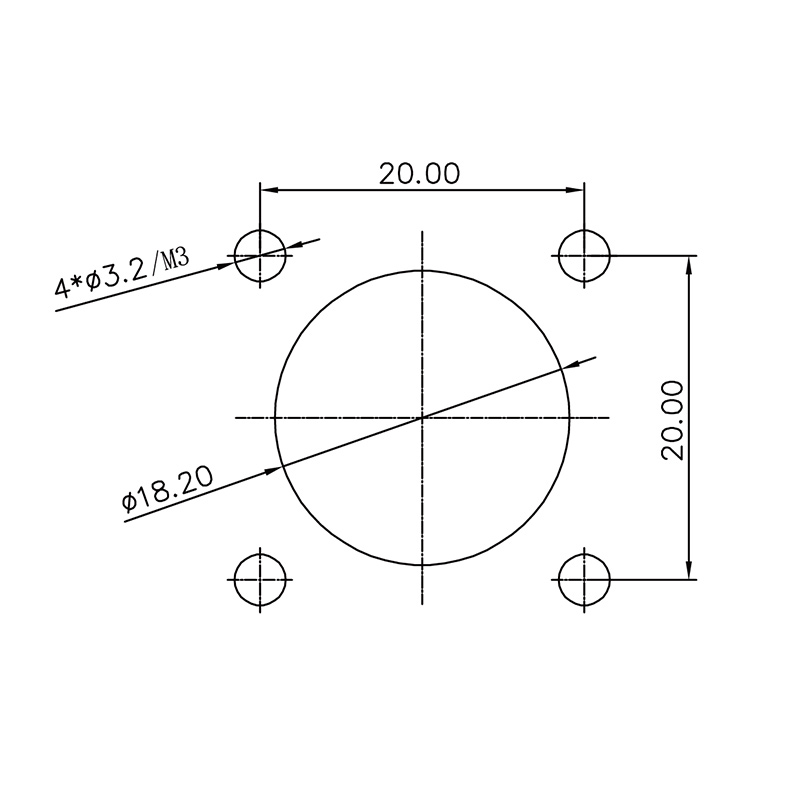

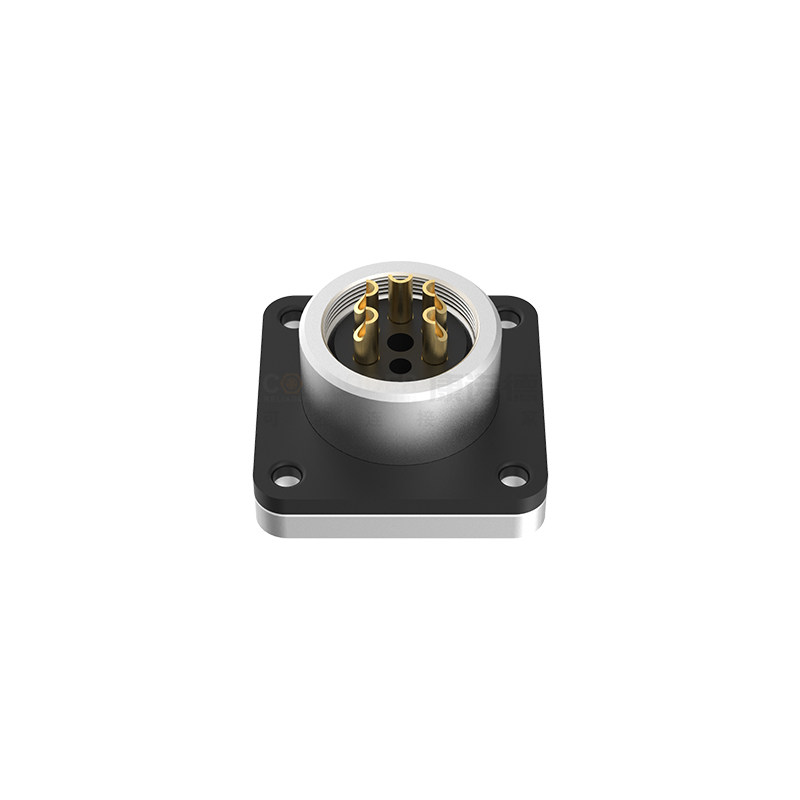

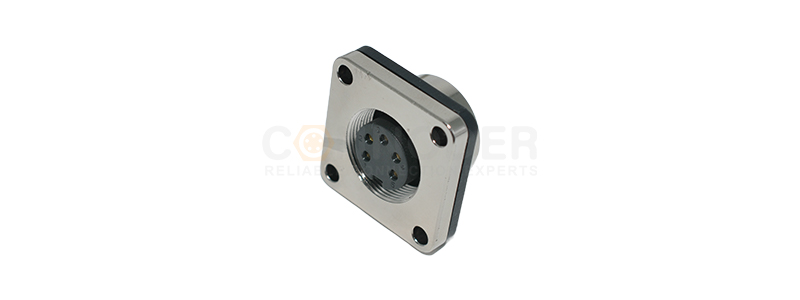

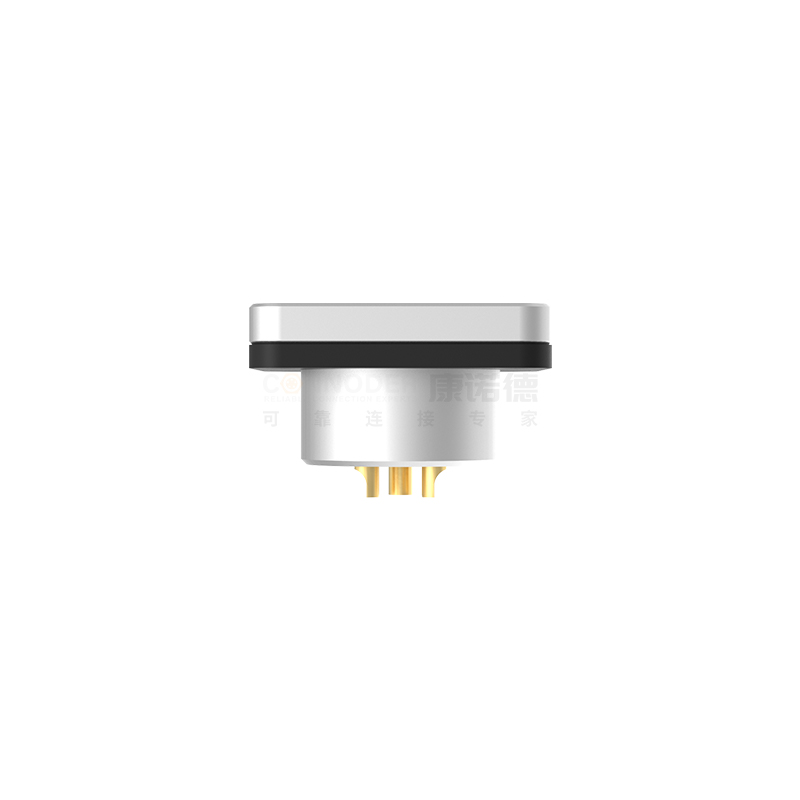

The M16 female - end connector features a square flange design, along with M16*0.75 standard threads. It enables precise installation positioning and secure fixation, and is suitable for most industrial panel openings. The product allows flexible selection of 2 - 24 cores, meeting different signal and circuit transmission requirements. The wire - soldering connection ensures a tight bond between the wire and the terminal, reducing transmission losses. With its industry - standard dimensions and stable performance, it is widely used in fields such as automation equipment and instruments, providing reliable connection solutions for complex working conditions.

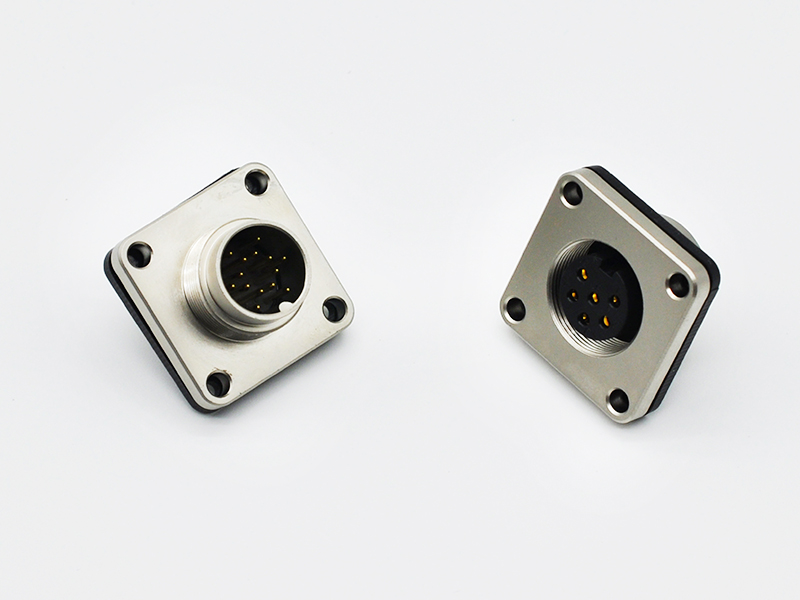

☑ The square flange of the M16 circular connector is highly suitable for demanding industrial applications such as industrial automation, aerospace, marine, and telecommunication systems.☑ The square flange of the M16 circular connector comes in the type of quick - locking wiring components, with an IP67 protection rating and an anti - vibration screw design.☑ The square flange series of the M16 circular connector features a robust metal housing, making it an ideal solution to ensure reliable power and signal connections in harsh environments and industrial applications.☑ The square flange of the M16 circular connector is manufactured in accordance with the AISG standard (AISG C 485). It offers 2 to 24 cores and supports connection methods such as dip soldering, crimping, screw - clamping, soldering, and stranded wire connection. There are also models with molded cables. Some models can be shielded, with a plug - and - unplug cycle life of over 500 times.

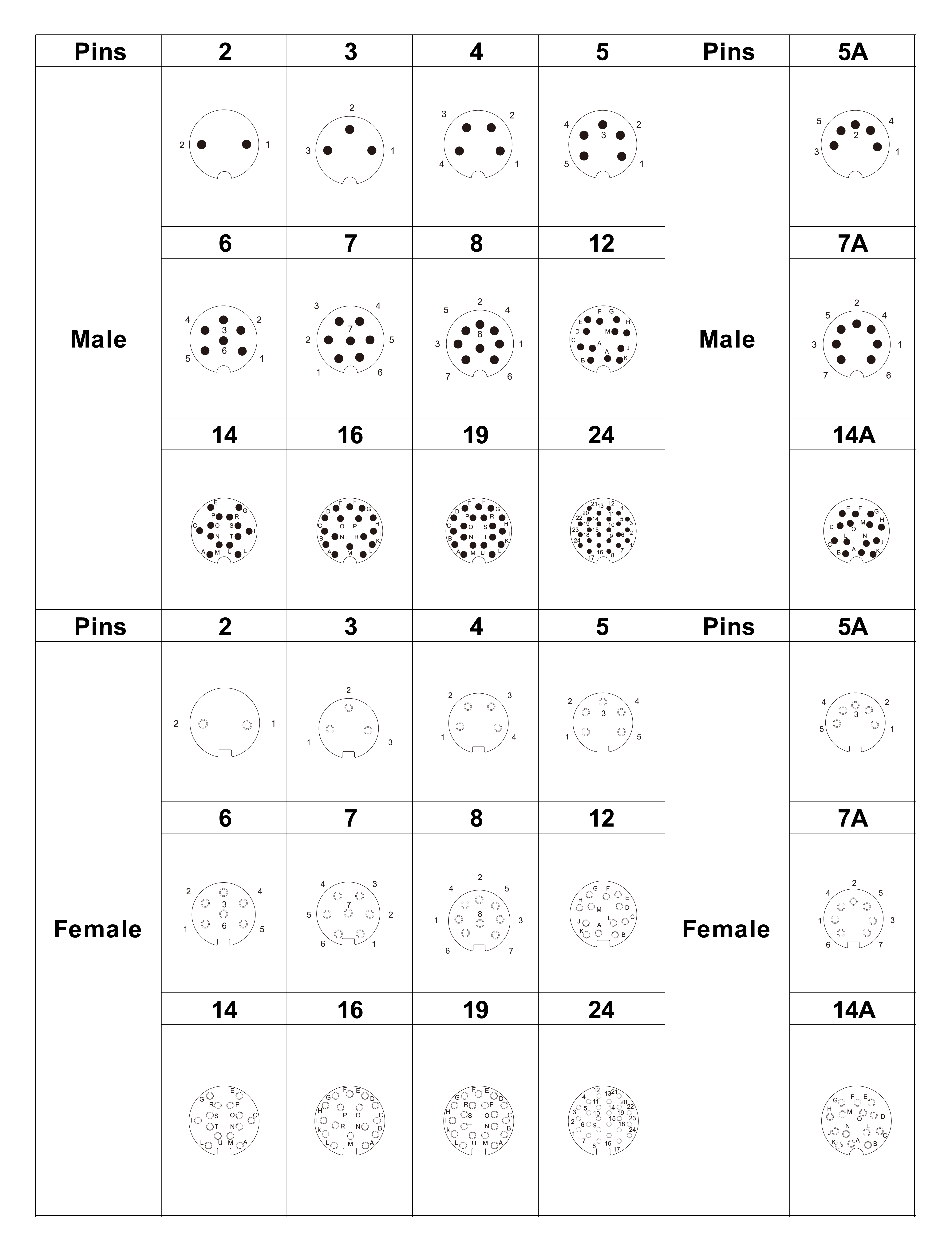

| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
