The M16 circular connector is a commonly used electronic connector. It has a cylindrical appearance and is typically applied in fields such as data transmission, communication, measurement, and control. Its performance characteristics include load resistance, waterproof and dust - proof capabilities, corrosion resistance, and vibration resistance. It is widely used in industries like automotive, rail transit, aerospace, defense, and industrial automation.

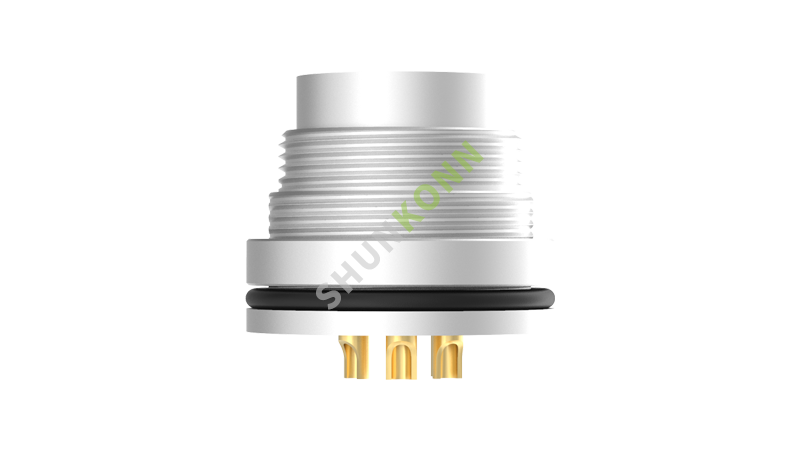

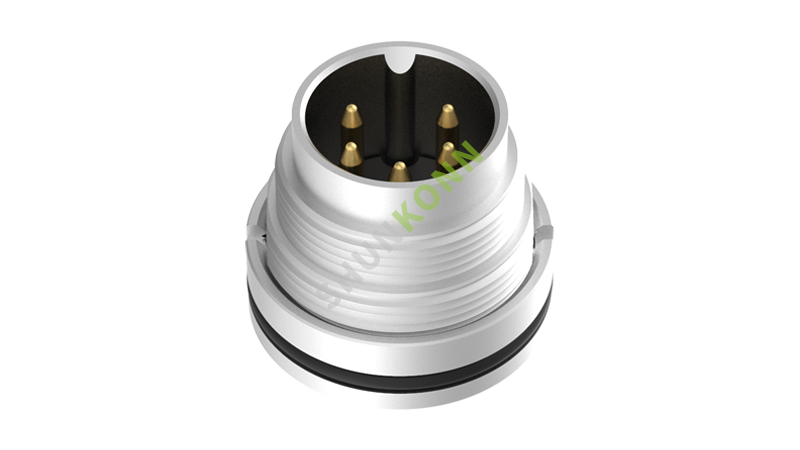

☑ The M16 male - end connector features a rear - mounted on - panel design. It is fixed from the back of the panel, thus not occupying the front - side space. With M160.75 standard threads, it fits the corresponding openings, ensuring stable installation and saving the front - side layout area of the equipment.
☑ This connector supports the selection of 2 - 24 core specifications, which can meet different signal or circuit transmission requirements. The wire - soldering connection reduces the risk of contact failures, ensuring stable current and signal transmission with low loss.
☑ The product strictly adheres to the M160.75 thread size standard, with high precision, enabling accurate connection to industrial - common panels. The male - end interface is designed to fit the female - end requirements, providing smooth plug - and - unplug operations and being compatible with most matching connectors of the same specification.☑ Thanks to its compact rear - mounted design and stable transmission performance, it is widely used in instruments, meters, and industrial control equipment. Inside equipment with limited space, it provides a reliable solution for circuit connections, suitable for use in complex working conditions.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
