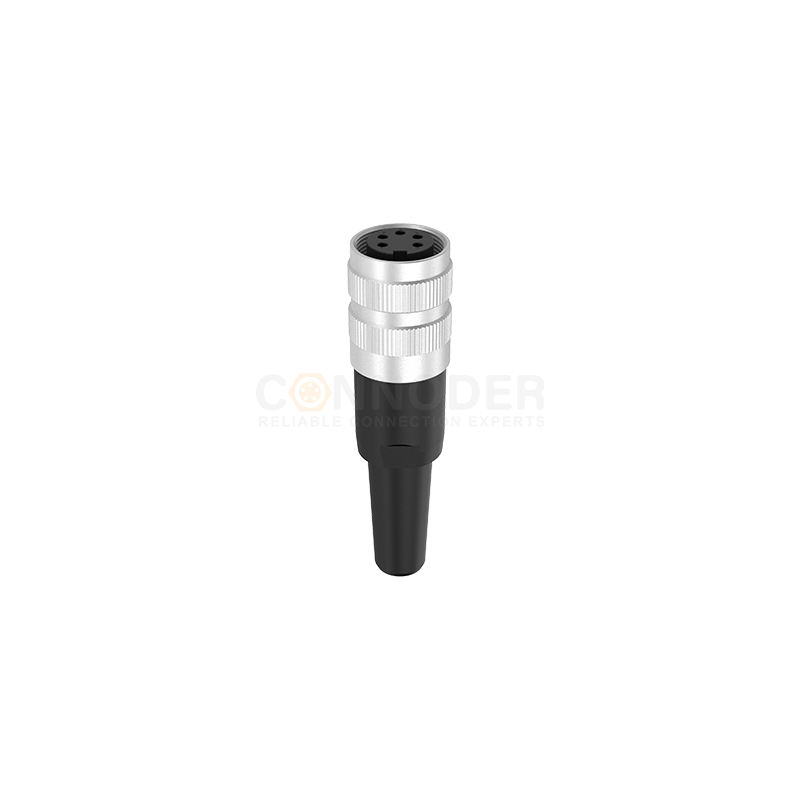

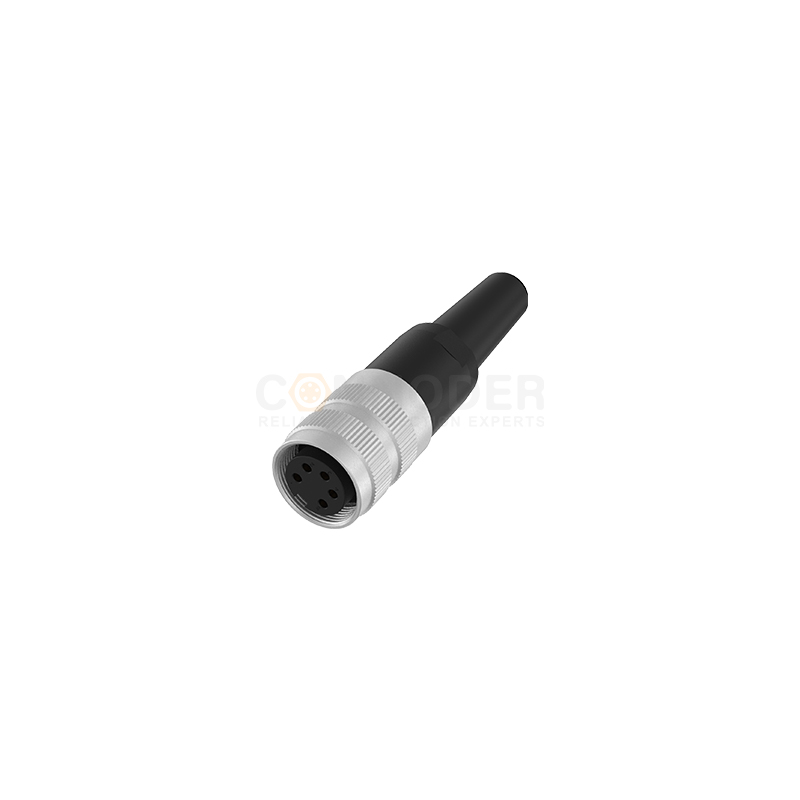

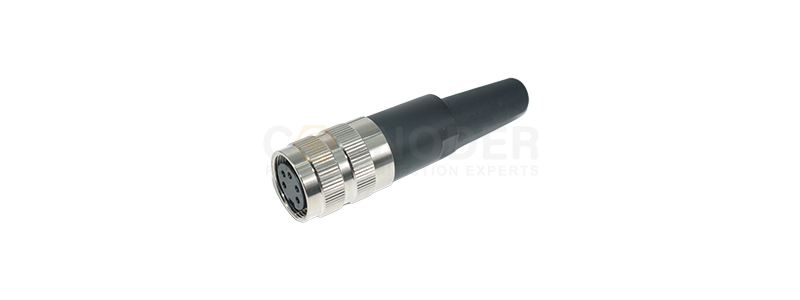

The female end of the M16 connector features a combined design of a metal housing and a plastic tail tube. The metal housing ensures structural stability and electromagnetic - interference resistance. The plastic tail tube facilitates cable protection and wiring. Paired with M16*0.75 standard threads, it enables precise installation and has high adaptability. With the flexibility to choose from 2 - 24 cores, it can meet different signal and circuit transmission requirements. The wire - soldering connection guarantees a tight fit between the wire and the terminal, reducing transmission losses. Its industrial - grade specifications are suitable for various equipment interfaces, and it is widely used in scenarios such as instruments, meters, and automation equipment, providing reliable connection solutions for complex working conditions.
☑ The female end of the M16 connector adopts a combination of a metal housing and a plastic tail tube. The metal housing enhances structural stability and interference resistance, while the plastic tail tube is suitable for cable protection. With the M160.75 thread design, the installation is precise and highly adaptable.
☑ The product offers a variety of specifications with 2 - 24 cores, meeting the transmission requirements from single - channel to multi - channel signals and circuits. The wire - soldering connection ensures a tight fit between the wire and the terminal, guaranteeing stable transmission with low losses.
☑ The plastic tail tube provides good cable protection, reducing bending damage. The metal housing improves impact and corrosion resistance, enabling it to handle complex industrial working conditions with ease.
☑ It strictly adheres to the M160.75 thread standard, and its dimensional accuracy conforms to industrial common interfaces. It is widely used in instruments, meters, automation equipment, etc., providing reliable connections for various electronic devices.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
