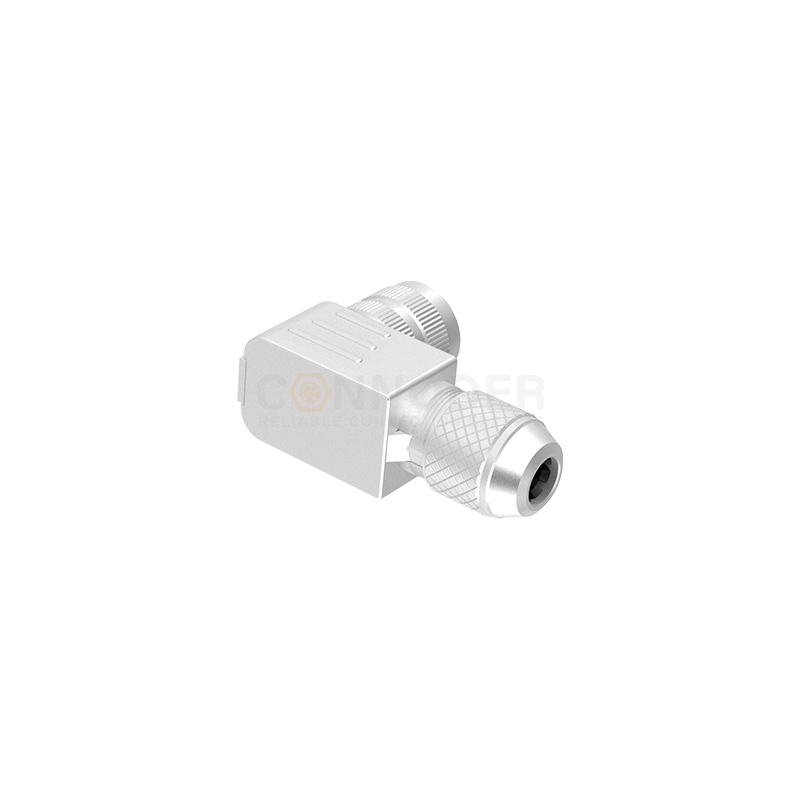

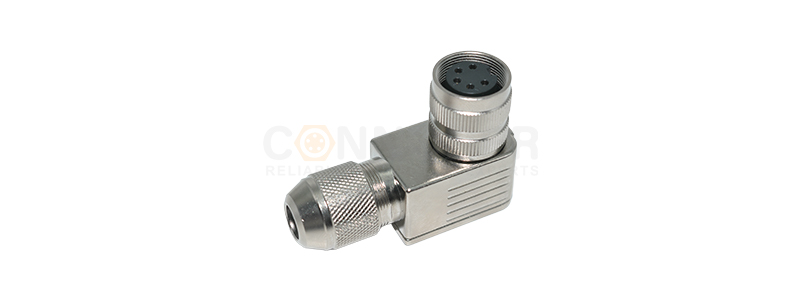

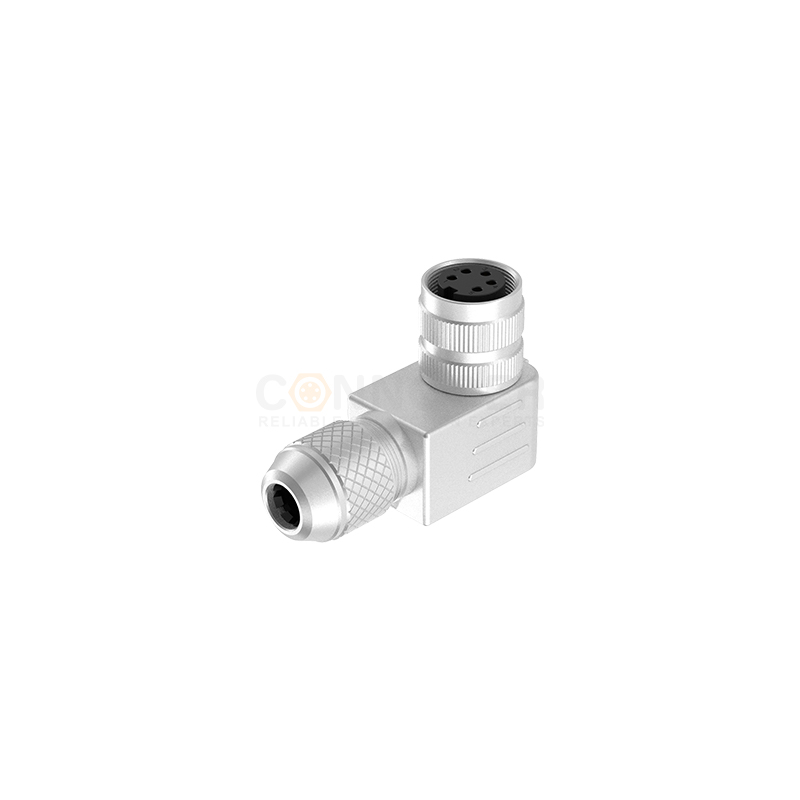

The female end of the M16 circular connector features a bent - angle design and a zinc - alloy housing, combining structural strength and space adaptability. Paired with M16*0.75 standard threads, it ensures stable installation and saves wiring space. It offers flexible selection of 2 - 24 cores to suit different signal and circuit transmission requirements. The wire - soldering connection guarantees a tight fit between the wire and the terminal, reducing transmission losses. With its industrial - grade specifications, it is compatible with various equipment interfaces and is widely used in scenarios such as instruments, meters, and automation equipment, providing reliable connection solutions for complex wiring environments.
☑ The female end of the M16 circular connector has a bent - angle shape with a zinc - alloy housing, boasting excellent mechanical strength. The M160.75 standard threads ensure stable installation, enabling it to be well - adapted to small spaces and optimize the wiring layout.
☑ The product allows for flexible selection of 2 - 24 cores, meeting the transmission requirements from single - channel to multi - channel signals and circuits. The wire - soldering connection process ensures a tight combination of wires and terminals, guaranteeing stable transmission with low losses.
☑ The zinc - alloy housing has remarkable compressive and corrosion resistance, and the surface treatment enhances its oxidation resistance. It can withstand the impacts and abrasion in complex industrial environments, extending the product's service life.
☑ It strictly adheres to the M160.75 thread standard, and its dimensional accuracy conforms to industrial common interfaces. It is widely applicable to instruments, meters, and automation equipment, providing reliable connection solutions for scenarios with limited space.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
