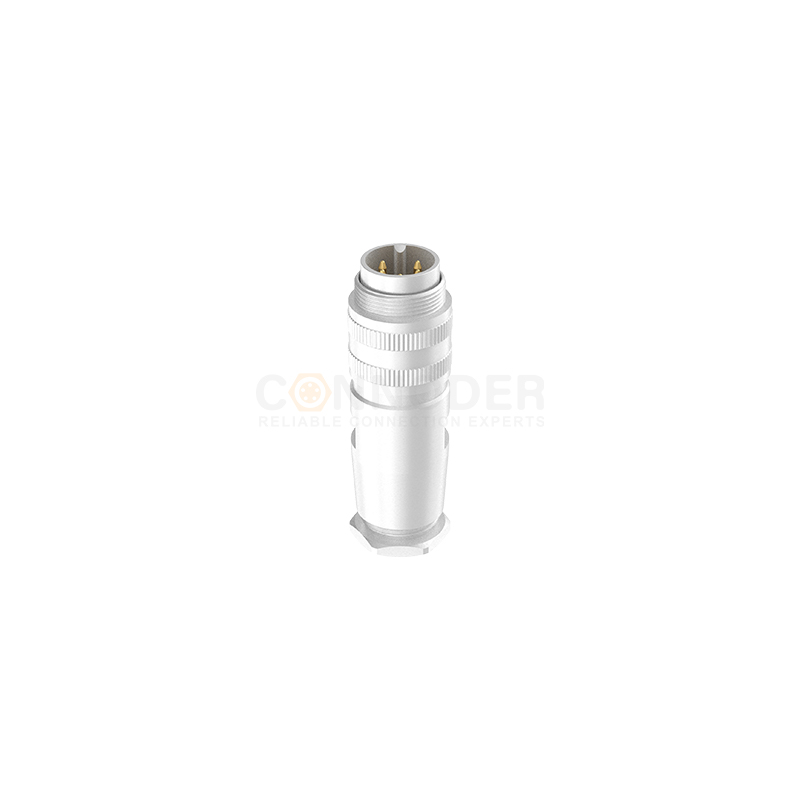

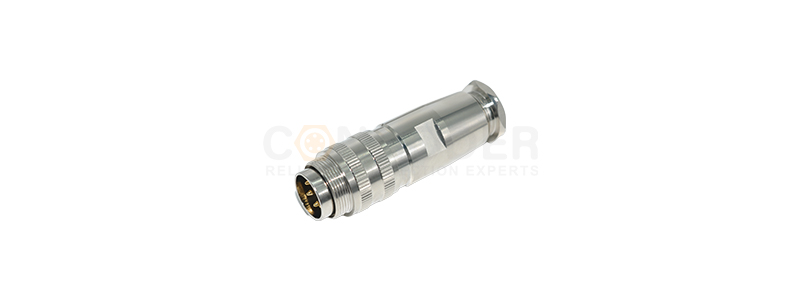

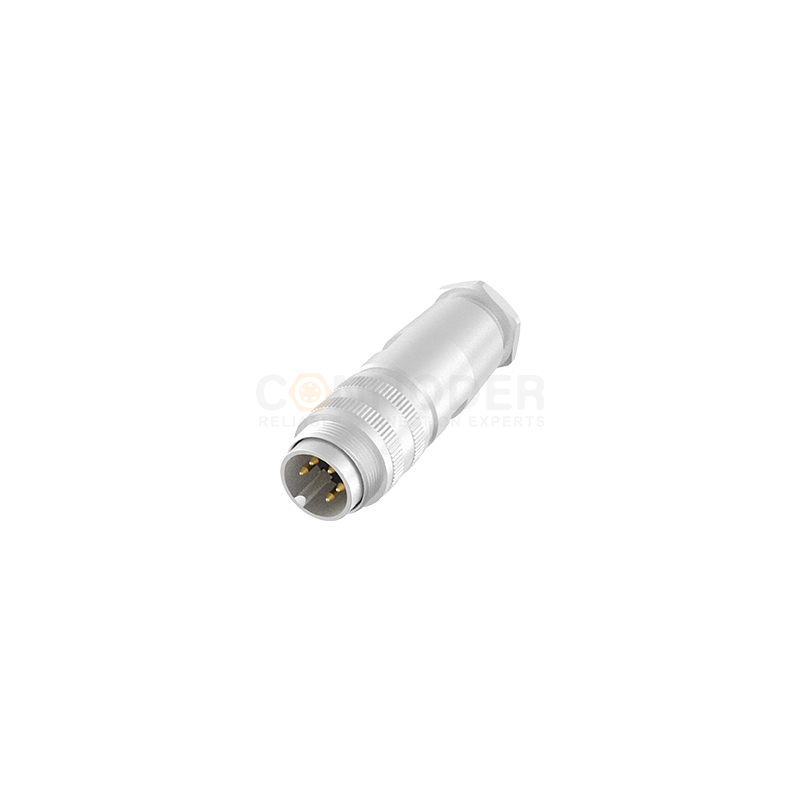

The male end of the M16 connector adopts a full - metal housing design, featuring excellent structural strength, electromagnetic interference resistance, and corrosion resistance. Equipped with M16*0.75 standard threads, it ensures stable installation and high adaptability. It allows for flexible selection of 2 - 24 cores to meet different signal and circuit transmission requirements. The wire - soldering connection ensures a tight fit between the wire and the terminal, reducing transmission losses. With its industrial - grade specifications, it is suitable for various equipment interfaces and is widely used in scenarios such as instruments, meters, and automation equipment, providing reliable connection solutions for complex working conditions.
☑ The male end of the M16 connector is made of a full - metal housing, boasting high structural strength and electromagnetic interference resistance. With M160.75 standard threads, it can be stably installed and is not prone to loosening, adapting well to harsh industrial environments.
☑ The product offers multiple specifications from 2 - 24 cores, covering the needs from single - channel signal to multi - channel circuit transmission. The wire - soldering connection process ensures a tight combination of wires and terminals, providing stable transmission with low losses.
☑ The full - metal housing has excellent impact resistance, corrosion resistance, and oxidation resistance. It can withstand the influence of complex working conditions such as humidity and vibration, effectively extending the product's service life.
☑ It strictly follows the M160.75 thread standard, and its dimensional accuracy is in line with industrial common interfaces. It is widely used in instruments, meters, automation equipment, etc., ensuring reliable connections for scenarios with high - reliability requirements.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
