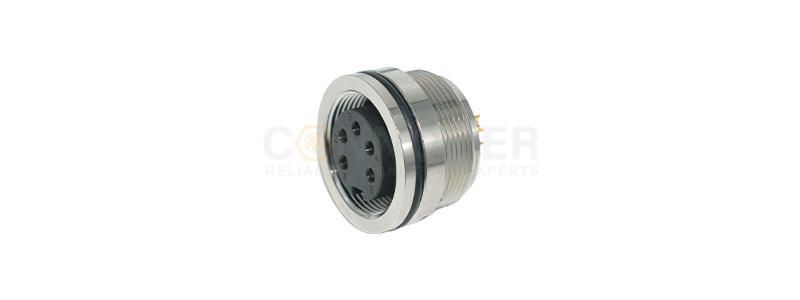

The M16 series female - end connectors feature a panel - type structure with a front - mounted installation method. This not only simplifies the installation process but also ensures stable installation. They support the selection of 2 - 24 core specifications to meet different transmission requirements. The wire - soldering connection technology improves the stability of electrical conductivity and signal transmission. The thread specifications strictly adhere to the M16*0.75 standard, enabling precise matching with panel interfaces. They are suitable for fields such as automation equipment that demand high connection reliability.
☑ The M16 female - end connector has a front - mounted panel - type structure, which is easy to operate and provides precise positioning. With M160.75 standard threads, it can stably fit the corresponding panel openings, enabling quick equipment assembly.
☑ This connector allows flexible selection of 2 - 24 cores, meeting different signal transmission requirements. The wire - soldering connection process effectively reduces contact resistance, ensuring the stability of circuit and signal transmission.
☑ The product strictly follows the M160.75 thread specifications with high - dimensional accuracy, making it suitable for most industrial - standard panels. The female - end design ensures a tight connection with the male end, reducing plug - and - unplug losses and improving connection reliability.☑ Thanks to its structural and performance advantages, this connector is widely used in fields such as industrial control and instrumentation. It can provide stable circuit connections for various electronic devices, meeting the usage requirements under complex working conditions.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
