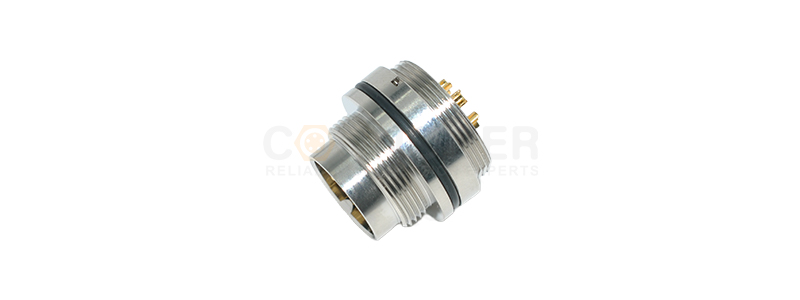

The M16 male connector features a front - of - panel installation design, which is easy to operate and highly adaptable. With an M16*0.75 standard thread, it can accurately fit into the panel openings and be firmly fixed. The product offers a flexible choice of 2 - 24 cores, capable of meeting various signal and circuit transmission requirements. The soldering - type connection process ensures a tight bond between the wire and the terminal, reducing transmission losses. Its performance and dimensions comply with industrial standards, making it widely applicable to instruments, meters, and industrial control equipment, providing reliable connection support for complex working conditions.
☑ The M16 male connector features a front - of - panel installation design. There is no need to disassemble the back of the equipment for operation, which is time - saving and efficient. With an M16*0.75 standard thread, it can accurately match the panel openings and be fixed quickly.
☑ This product offers a flexible choice of 2 - 24 cores, covering transmission requirements from single - channel signals to multi - channel circuits. Different core - number specifications are uniformly compatible with the M16 structure, reducing the difficulty of model selection for multiple application scenarios.
☑ The soldering - type connection process is adopted, ensuring a tight combination of the wire and the terminal. This can effectively reduce the contact resistance, avoid transmission failures caused by loose plug - in, and guarantee stable current and signal transmission.
☑ It strictly follows the M16*0.75 thread standard, and its dimensional accuracy meets the requirements of industrial equipment. It is widely used in the fields of instruments, meters, and automated control, meeting connection needs under complex working conditions.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
