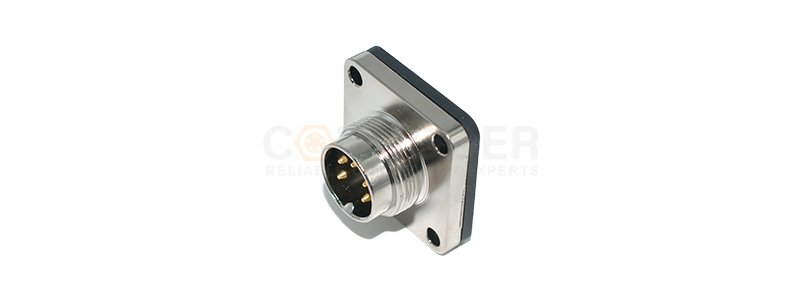

The M16 male - end connector features a square flange structure with M16*0.75 standard threads. It offers precise and stable installation positioning, making it less likely to shift. The product allows flexible choices of 2 - 24 cores, suitable for both simple circuits and multi - signal transmission scenarios. The wire - welding connection ensures a tight bond between the wire and the terminal, reducing transmission losses. Its dimensional accuracy complies with industrial standards, enabling compatibility with most equipment installation interfaces. It is widely used in fields such as automation equipment and instruments, providing a reliable solution for circuit connections under complex working conditions.
☑ The M16 circular connector square flange is highly suitable for demanding industrial applications such as industrial automation, aerospace, marine, and telecommunications systems.☑ The M16 circular connector square flange comes in a quick - locking wiring assembly type, with an IP67 protection rating and an anti - vibration screw design.☑ The M16 circular connector square flange series features a robust metal housing, making it an ideal solution for ensuring reliable power and signal connections in harsh environments and industrial applications.☑ The M16 circular connector square flange is manufactured in accordance with the AISG standard (AISG C 485). It offers 2 to 24 cores and supports connection methods such as dip soldering, crimping, screw clamping, welding, and stranded wire connection. There are also models with molded cables. Some models can be shielded, and they have a plug - and - unplug cycle life of over 500 times.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
