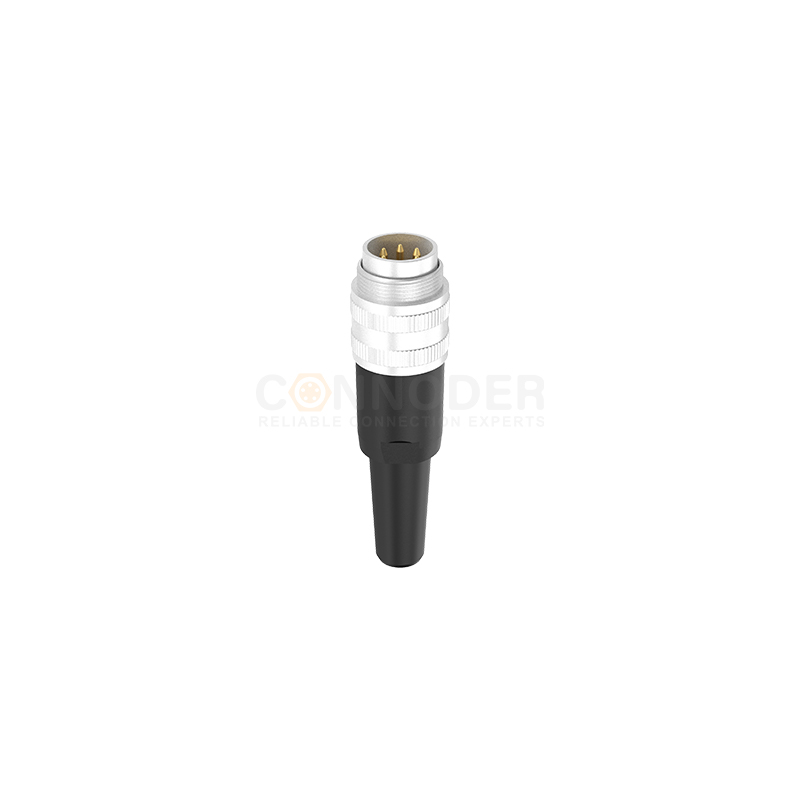

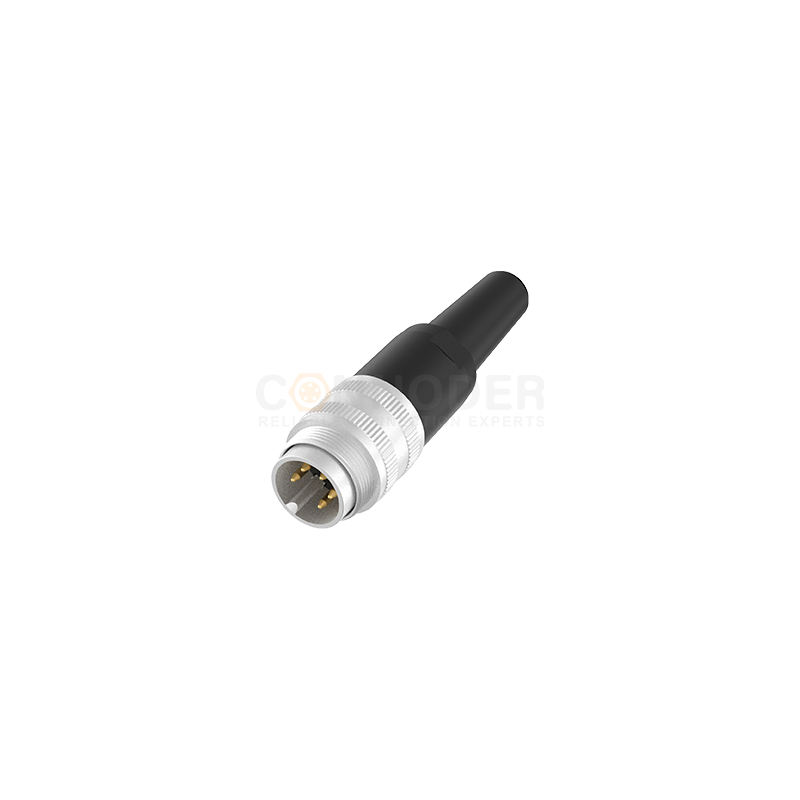

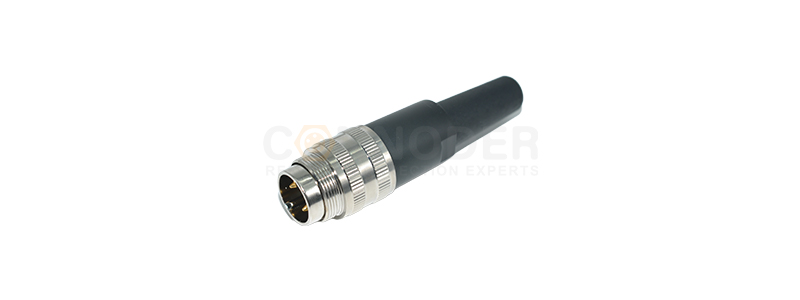

The male end of the M16 connector features a combined design of a metal housing and a plastic tail tube. The metal housing ensures structural strength and interference resistance, while the plastic tail tube facilitates wiring protection. With M16*0.75 standard threads, it offers stable installation and high adaptability. It allows for flexible selection of 2 - 24 cores to meet different signal and circuit transmission requirements. The wire - soldering connection guarantees a tight fit between the wire and the terminal, reducing transmission losses. Its industrial - grade specifications are suitable for various equipment interfaces, and it is widely used in scenarios like instruments, meters, and automation equipment, providing reliable connection solutions for complex working conditions.
☑ The male end of the M16 connector adopts a combination of a metal housing and a plastic tail tube. The metal housing ensures structural strength and electromagnetic interference resistance, while the plastic tail tube flexibly adapts to wiring needs. With the M160.75 thread design, it provides stable installation and high adaptability.
☑ The product offers multiple specifications from 2 - 24 cores, covering the needs from single - channel signal to multi - channel circuit transmission. The wire - soldering connection process enables a tight combination of wires and terminals, ensuring stable transmission with low losses.
☑ The plastic tail tube provides good wiring protection, reducing cable bending damage. The metal housing enhances impact and corrosion resistance, meeting the usage requirements in complex industrial working conditions.
☑ It strictly follows the M160.75 thread standard, and its dimensional accuracy is in line with industrial common interfaces. It is widely used in instruments, meters, automation equipment, etc., providing reliable connection solutions for various electronic devices.
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Male end |
|
|
|
|
Male end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Number of Cores | 2 | 3 | 4 | 5 | Number of Cores | 5A |
| Female end |
|
|
|
|
Female end |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
