Electrical
Parameters

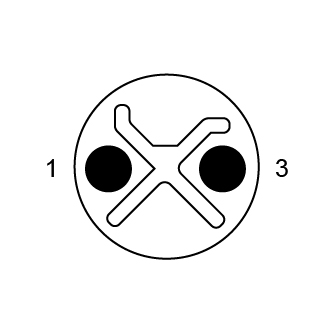

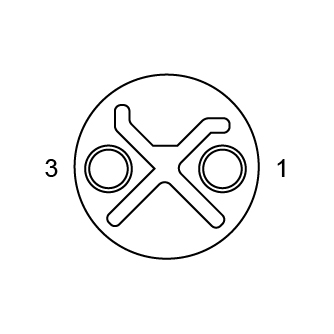

| Code Type | Pins | Male | Rated Current | Rated Voltage | Conductor Size | Female | ||
| A/C | D/C | AWG | MM² | |||||
| S |
2 |
|
12A | 630V | 630V | 16 | 1.5 |
|
|
2+PE |
|
12A | 630V | 630V | 16 | 1.5 |
|
|
|
3+PE |
|
12A | 630V | 630V | 16 | 1.5 |
|
|
Wiring
Definition
| Pins | Wire Core Color | |
| 1 |
BK1 |
|
| 2 |
BK2 |
|
| 3 |
BK3 |
|
| PE | GNYE |
|
