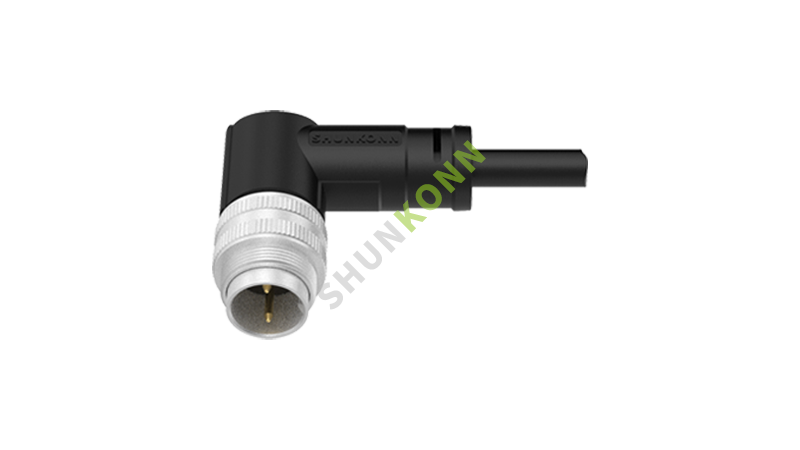

Analysis of advantages and disadvantages of M16 circular connector

As a connector type widely used in industrial automation, communication equipment and sensor networks, the M16 circular connector performs well in many complex scenarios with its large current carrying capacity and multi-functional configuration. Starting from its advantages and disadvantages, this paper will comprehensively analyze the value and selection points of M16 circular connectors in practical applications.

一、The advantages of M16 circular connector:

1. High current carrying capacity: M16 connectors usually support current ranges from 5A to 16A, which can meet the needs of medium-power devices. This gives it an important place in industrial equipment, especially those scenarios that require both signal transmission and power supply.

2. Diversified pin number configuration: The M16 circular connector provides a variety of pin number options (such as 3 to 24 pins) to meet signal, data, and power transmission requirements, improve connection efficiency, and reduce cable routing complexity.

3. Good environmental adaptability

High protection rating: M16 connectors are typically rated IP67 or IP68 to protect against moisture, dust and other contaminants, ensuring reliability in outdoor or harsh industrial environments.

Temperature resistance: Supports a wide temperature range (usually -40 ° C to +85 ° C), suitable for stable operation in extreme environments.

4. A variety of installation and connection methods: Support thread locking, buckle connection and other ways to ensure fast installation and high strength connection. Provide welding, crimping, assembly and other wiring methods to meet different user needs.

5. Excellent shielding performance: For high-speed signal transmission scenarios, the shielding structure of the M16 connector can effectively suppress electromagnetic interference (EMI) to ensure signal integrity and transmission stability.

二、Disadvantages of M16 circular connector:

1. Relatively large volume: Compared with the smaller M12 connector, the size of the M16 connector is slightly larger, which may be inconvenient to install in equipment with limited space.

2. Higher cost: Due to its more complex design and better materials, the price of M16 connectors is often higher than that of other similar connectors, especially when used on a large scale, which has a certain impact on the budget.

3. Application scenario limitations: M16 connectors are more suitable for medium-power signal and power transmission, which may not be economical enough for low-power or small-signal transmission scenarios.

4. High installation accuracy requirements: In the multi-pin configuration, the installation needs to ensure accurate alignment, especially in complex environments, where the risk of misinsertion or pin damage increases, requiring higher installation skills.

5. Limited high-speed data transmission capability: Although M16 connectors perform well in industrial communications, their capabilities may not be as good as dedicated high-speed connectors for the transmission needs of ultra-high-speed data (such as more than 10Gbps).
