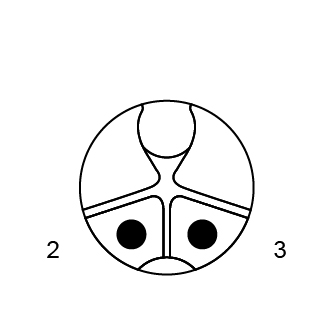

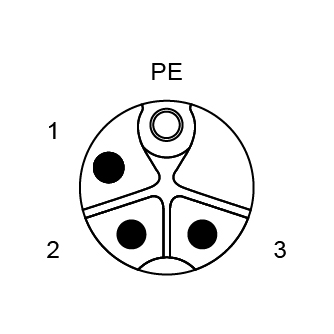

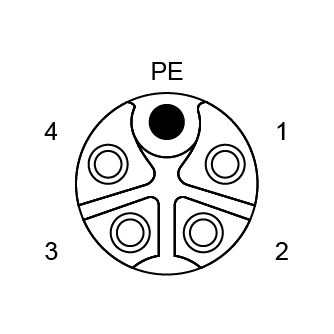

K

Electrical
Parameters
Code Type Pins  Male Rated Current Rated Voltage Conductor Size Female
A/C D/C AWG MM²



k

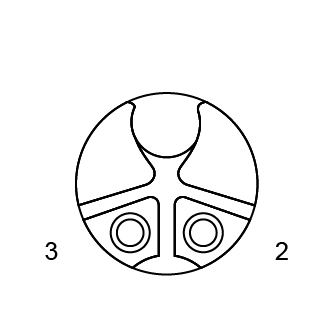

2

16A 800V 800V 16 2.5

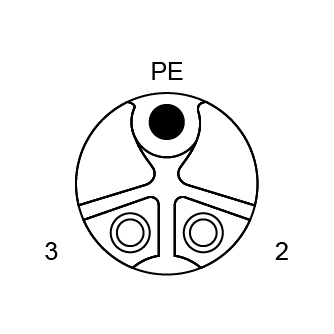

2+PE

16A 800V 800V 16 2.5

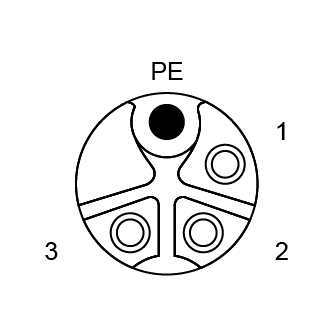

3+PE

16A 800V 800V 16 2.5

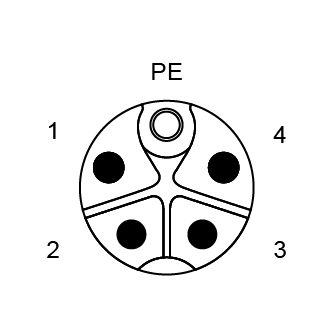

4+PE

16A 800V 800V 16 2.5



Wiring
Definition
Pins Wire Core Color
1

BK1

2

BK2

3

BK3

4

BK4

PE

GNYE



S

Electrical
Parameters
Code Type Pins  Male Rated Current Rated Voltage Conductor Size Female
A/C D/C AWG MM²
S

2

12A 630V 630V 16 1.5

2+PE

12A 630V 630V 16 1.5

3+PE

12A 630V 630V 16 1.5


Wiring
Definition
Pins Wire Core Color
1

BK1

2

BK2

3

BK3

PE GNYE



M16

Electrical
Parameters
Pins Male Rated Current Rated Voltage Conductor Size Female
A Code A/C D/C AWG MM² A Code
2

4A 250V 250V 22 0.34

3

4A 250V 250V 22 0.34

4

4A 250V 250V 22 0.34

5

4A 60V 60V 22 0.34

6

2A 30V 30V 24 0.25

8

2A 30V 30V 24 0.25

12

1.5A 30V 30V 26 0.14

17

1.5A 30V 30V 26 0.14

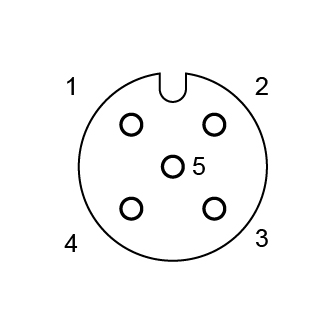

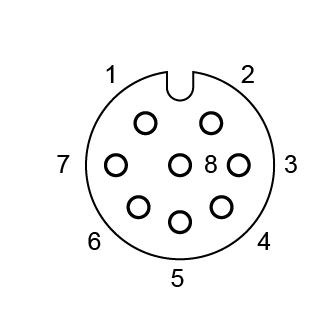

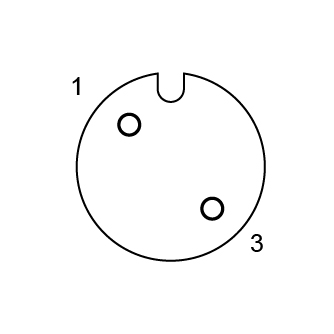

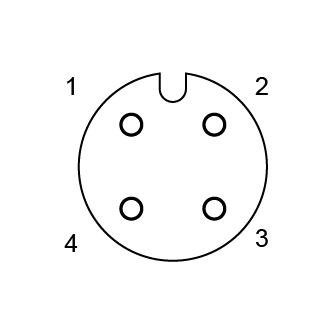

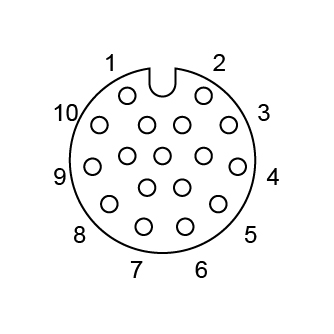

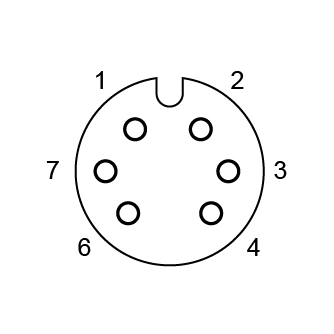

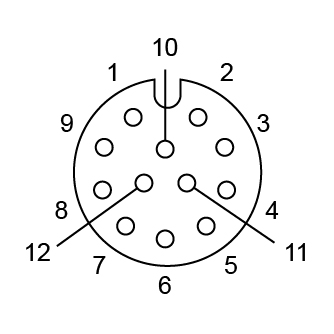

M12-A

Electrical
Parameters
Pins Male Rated Current Rated Voltage Conductor Size Female
A Code A/C D/C AWG MM² A Code
2

4A 250V 250V 22 0.34

3

4A 250V 250V 22 0.34

4

4A 250V 250V 22 0.34

5

4A 60V 60V 22 0.34

6

2A 30V 30V 24 0.25

8

2A 30V 30V 24 0.25

12

1.5A 30V 30V 26 0.14

17

1.5A 30V 30V 26 0.14
