The M9 circular connector is a common industrial - grade electrical interface. It is designed to offer stable connections in harsh environments. Its circular structure usually consists of a metal housing and a sealing ring, which can effectively prevent dust and moisture from entering. It is used to transfer control commands and data signals, ensuring smooth communication among different components of a robot. Also, it connects power cords to provide stable power for actuators and sensors. The environmental protection and sealing design can withstand vibrations and corrosion in industrial settings, thus extending the service life of the equipment.

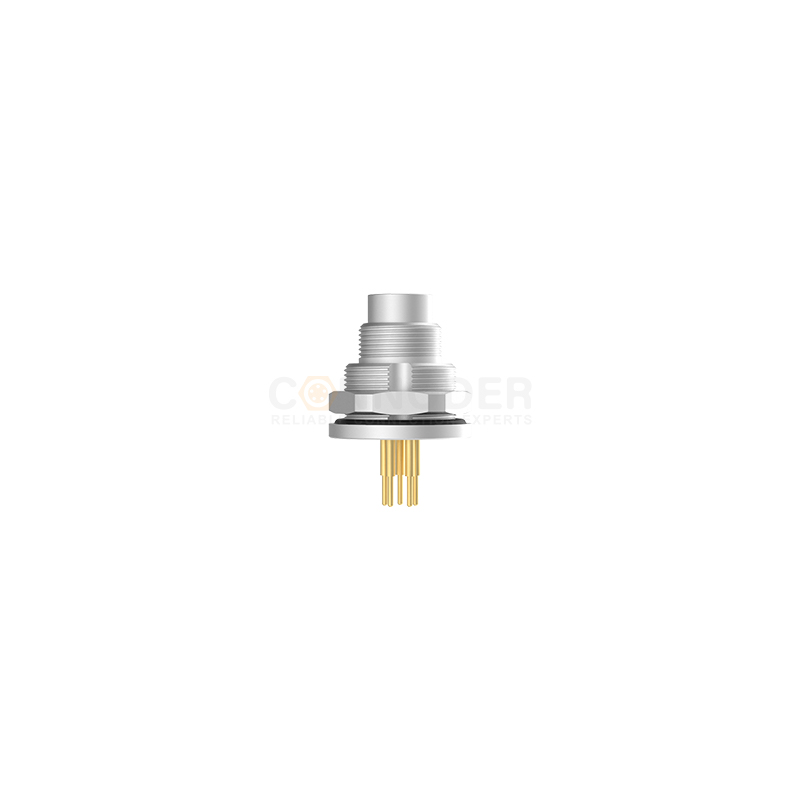

☑ This product is the male end of the M9 circular connector, featuring a rear - panel mounting design for panel - type installation. It is fixed from the back of the panel, without occupying the front - side space. The installation process doesn't affect the front - side layout of the equipment, making it suitable for compact integration scenarios.
☑ It supports 2 - 8P plug - in board connection, flexibly meeting the requirements of 2 - to 8 - core circuits. The plug - in board connection method doesn't require welding, which improves the assembly efficiency. The precise circuit docking ensures the stability of signal and power transmission.

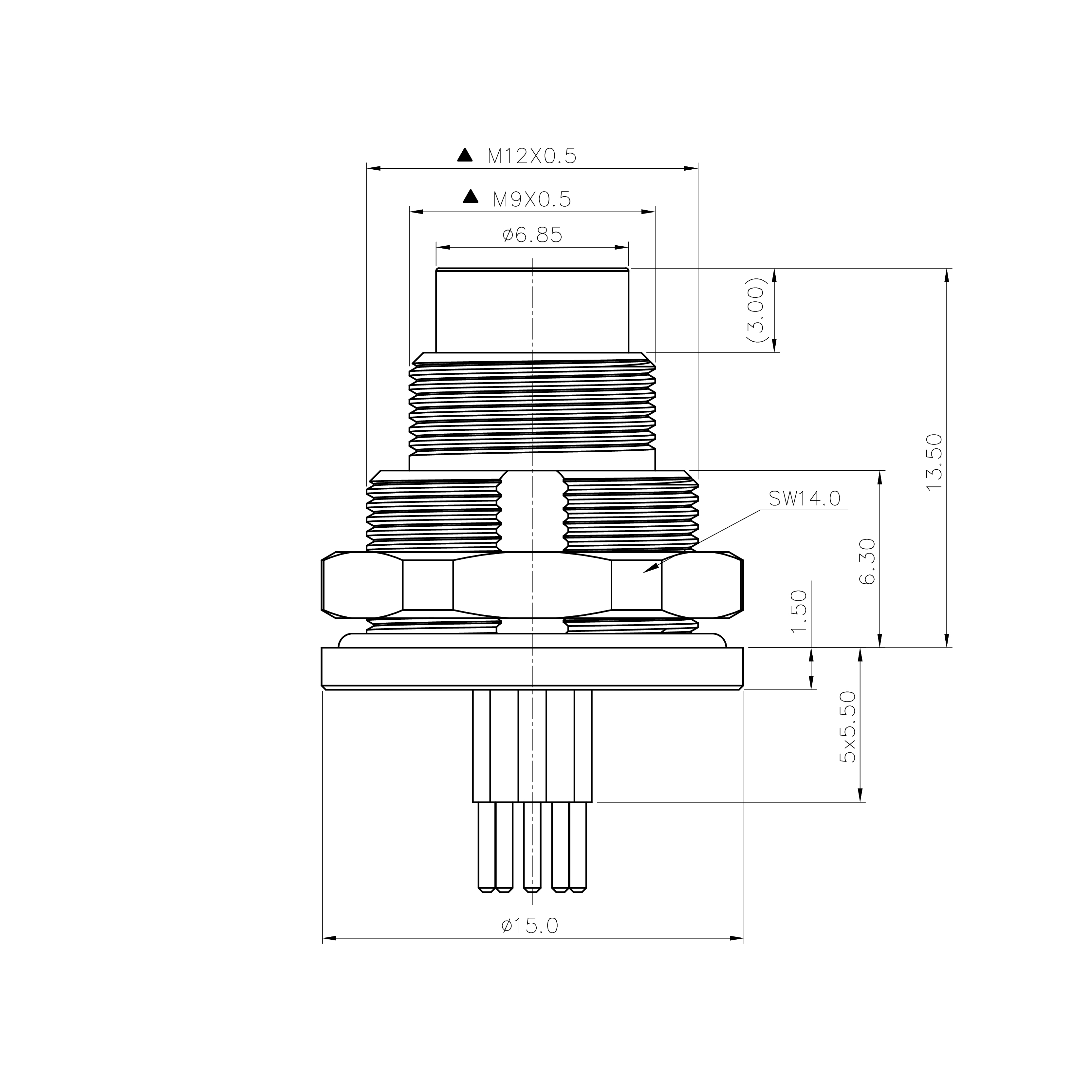

☑ With a thread specification of M12x0.5, the thread meets the precision standard. After screwing, it has strong firmness. It can effectively resist vibration, prevent dust and loosening, providing reliable protection for the connection part and being suitable for complex industrial environments.
☑ It is suitable for the panel - integration needs of industrial instruments, automated equipment, etc. Combining the features of space - saving installation, convenient assembly, and stable connection, it meets the requirements of working conditions that demand installation efficiency and reliability.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
| Number of cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
||
| Number of cores | 2 | 3 | 4 | 5 |
| Female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
