This connector boasts multiple performance benefits. Its rated current generally ranges from 1 - 5A, and the rated voltage covers 250V, satisfying the power transmission demands of most industrial scenarios. The contact parts are designed with an elastic structure, ensuring a plug - and - unplug lifespan of over thousands of times. It has low signal transmission loss and strong anti - interference capabilities. Some high - end models can reach an IP67 protection level, enabling them to adapt to harsh environments like humidity and dust. Moreover, it has high and low - temperature resistance, operating stably within a wide temperature range from - 40°C to 85°C.

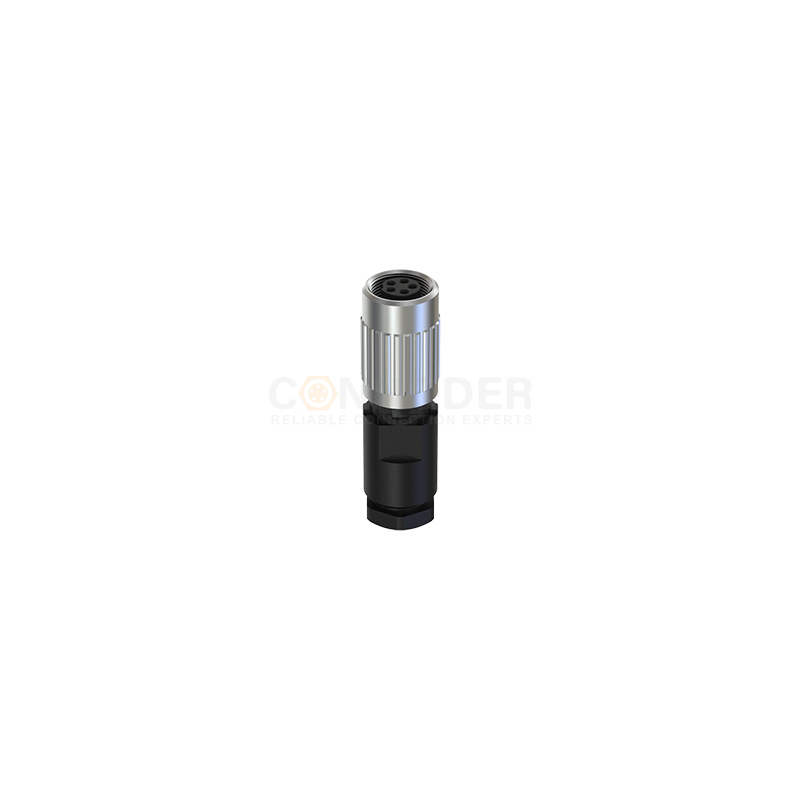

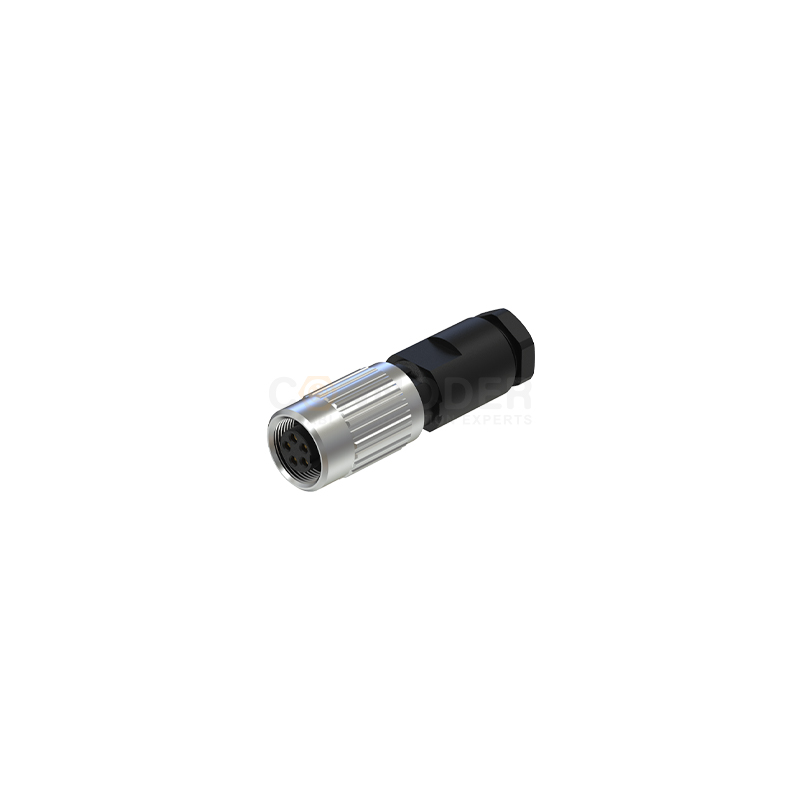

☑ This product is the female end of the M9 circular connector, featuring a snap - type connection and a plastic shell design. The plastic shell is lightweight and offers excellent insulation. The snap - type structure allows for easy installation and disassembly, enabling connection without the need for tools, which is ideal for rapid - assembly scenarios.
☑ It can flexibly accommodate the requirements of 2 - 8 - core circuits. The welding - based fixation method ensures a tight connection of the wires, effectively reducing transmission losses and ensuring stable and reliable signal and power transmission.
☑ The plastic shell has good anti - aging and anti - corrosion properties. It is lightweight and cost - controllable. Paired with the snap - type locking structure, it provides a good anti - detachment effect and also facilitates subsequent maintenance and inspection, enhancing user convenience.
☑ It is widely used for wire connections in devices such as consumer electronics and small - sized instruments. With its high - efficiency installation, cost - effectiveness, and stable transmission, it meets the needs of scenarios that require connection convenience and good cost - performance.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
