This connector offers multiple performance advantages. Its rated current typically ranges from 1 - 5A, and the rated voltage covers 250V, meeting the power transmission needs of most industrial applications. The contacts are designed with an elastic structure, ensuring a plug - and - unplug lifespan of more than thousands of times. It features low signal transmission loss and strong anti - interference ability. Some high - end models have a protection level of up to IP67, enabling them to adapt to harsh environments such as humidity and dust. Additionally, it has high and low - temperature resistance, operating stably within a wide temperature range of - 40°C to 85°C.

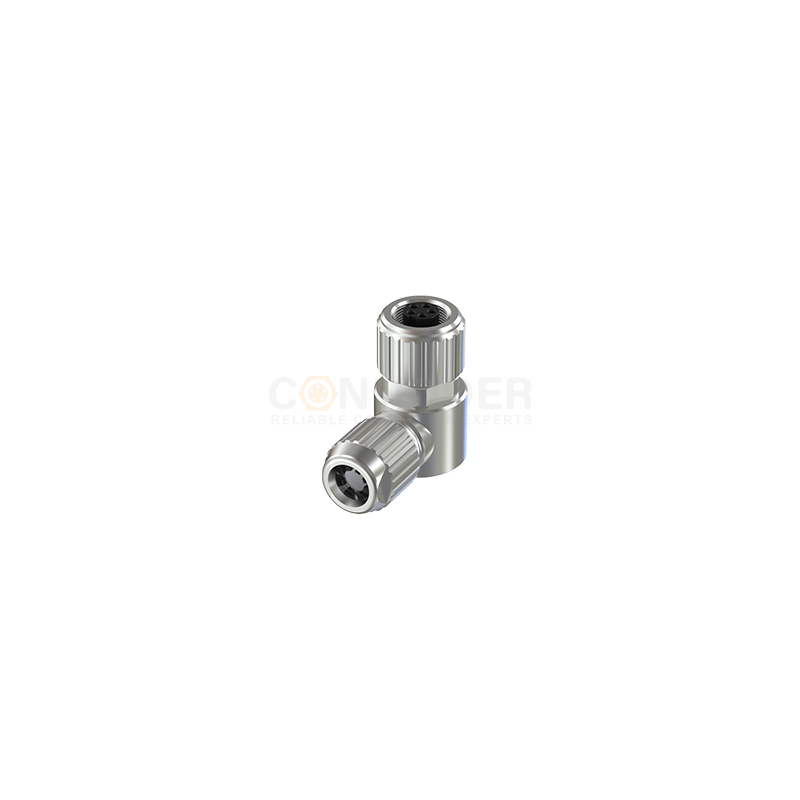

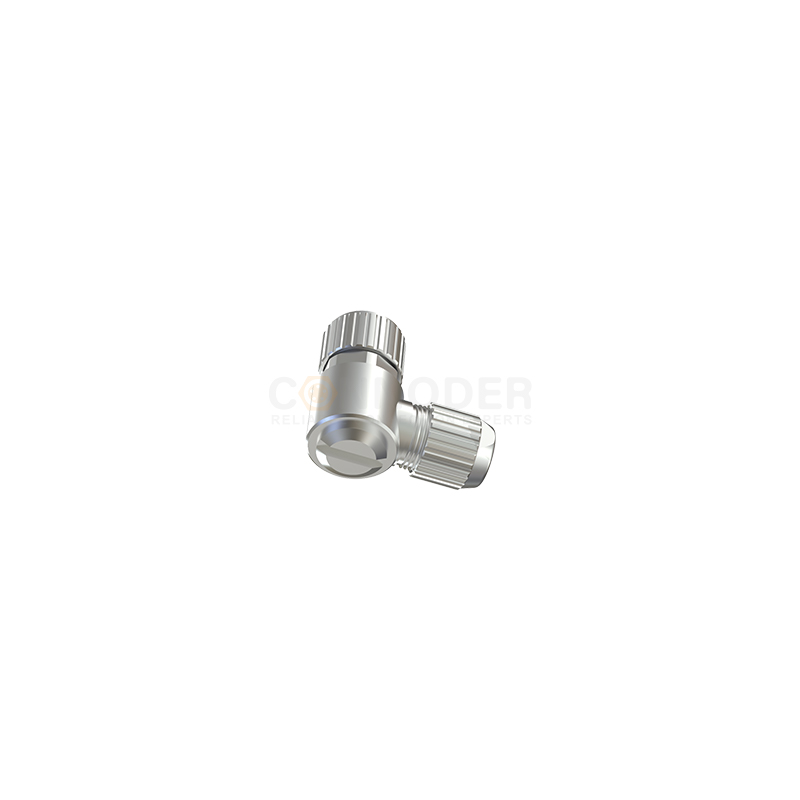

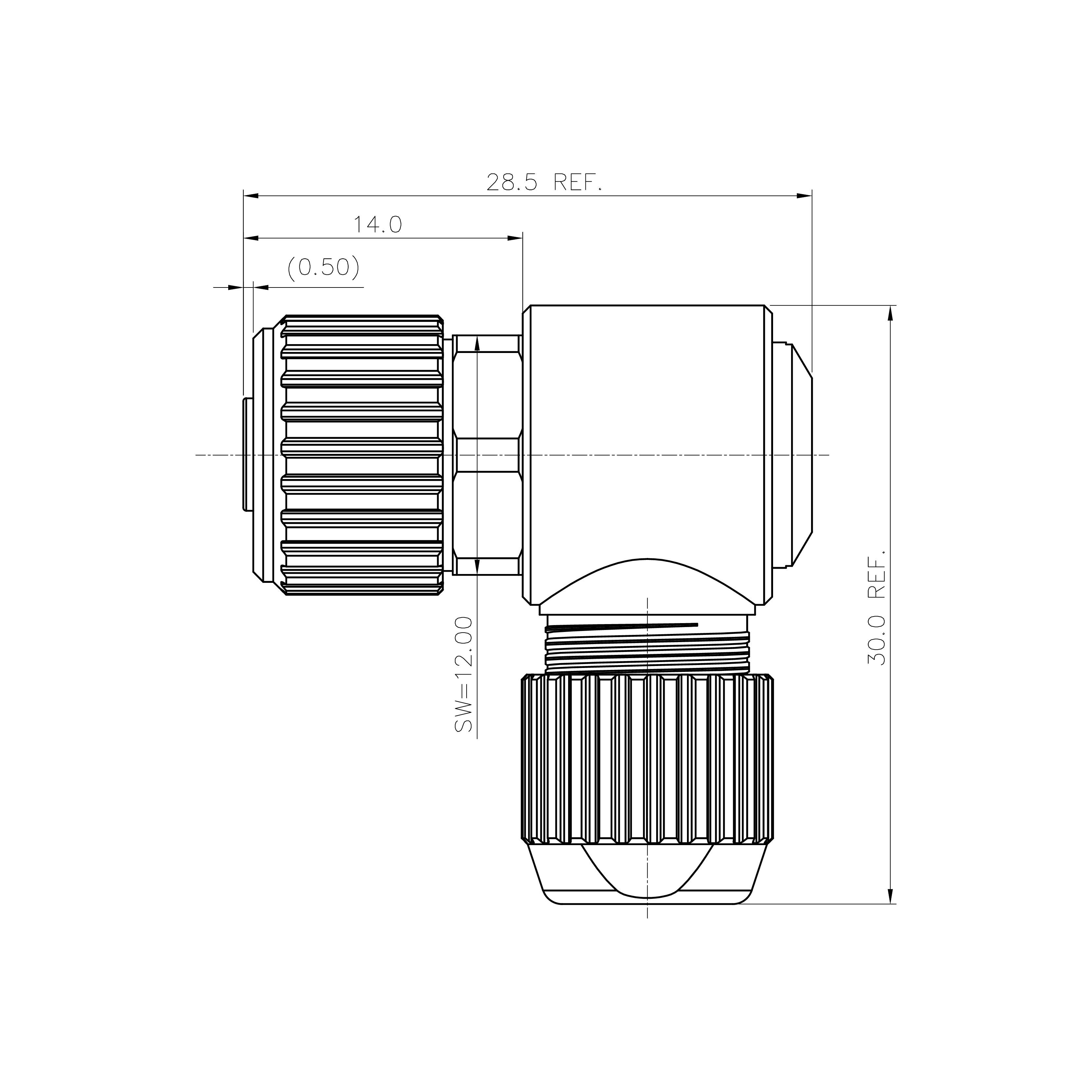

☑ This product is the female end of the M9 circular connector, featuring a bent - pin structure and a full - metal shell design. The bent - pin layout is suitable for narrow installation spaces, facilitating the side - way arrangement of wires. The full - metal material enhances the structural stability, making it suitable for compact device integration scenarios.
☑ It can flexibly adapt to 2 - 8 - core circuit connection scenarios. The welding fixation method ensures a tight connection of the wires, effectively reducing transmission losses and guaranteeing the stable and reliable transmission of signals and power.
☑ The full - metal shell has excellent corrosion - resistance and compression - resistance, enabling it to withstand the erosion of harsh environments. It also has certain dust - proof and electromagnetic - interference - proof effects, prolonging the product's service life and being suitable for complex industrial working conditions.
☑ It is widely used for wire connections in industrial automation equipment, instrumentation, etc. Combining the features of easy installation, durable structure, and stable transmission, it meets the usage scenarios where the protection and reliability of the connector are required.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
