This connector has multiple performance advantages. Its rated current is usually 1 - 5A, and the rated voltage covers 250V, meeting the power transmission requirements of most industrial scenarios. The contact parts are designed with an elastic structure, ensuring a plug - and - unplug lifespan of thousands of times. It has low signal transmission loss and strong anti - interference ability. Some high - end models have a protection level of up to IP67, enabling them to adapt to harsh environments such as humidity and dust. Meanwhile, it has high and low - temperature resistance characteristics and can operate stably within a wide temperature range of - 40℃ to 85℃.

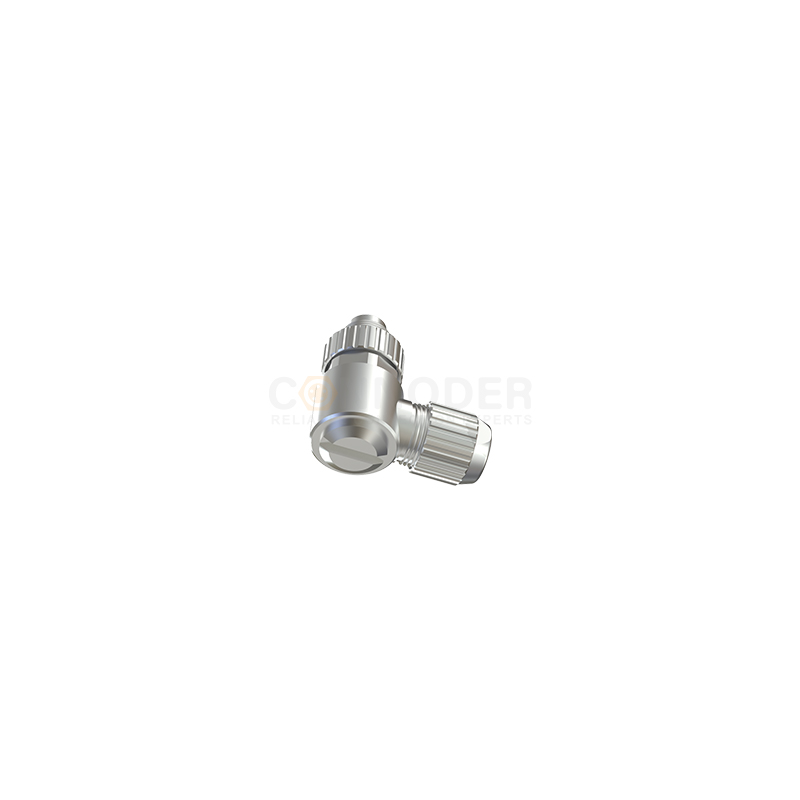

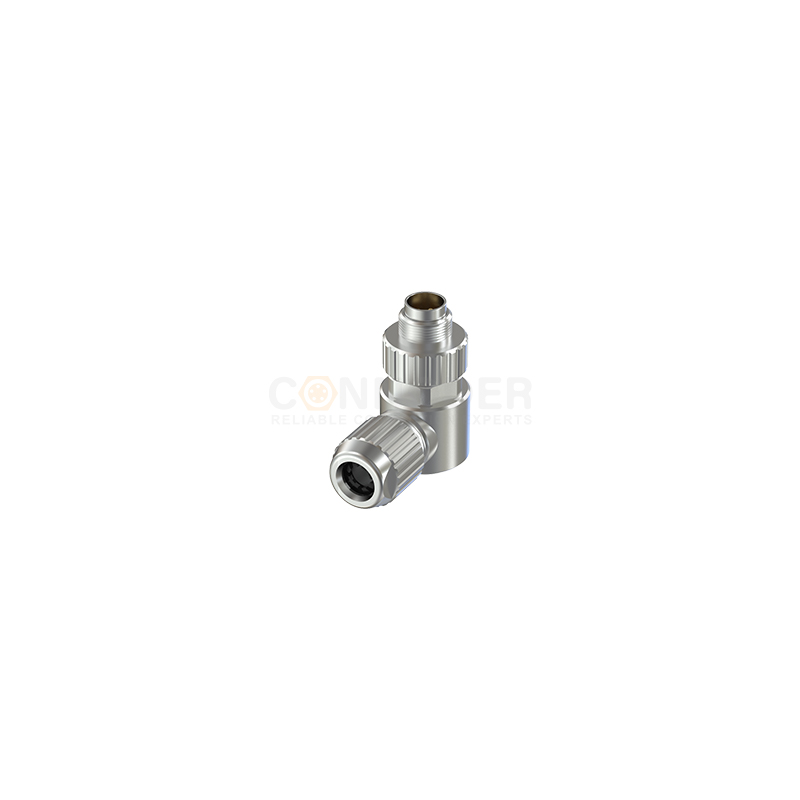

☑ This product is the male end of the M9 circular connector, featuring a bent - pin structure and a full - metal shell design. The bent - pin layout is suitable for narrow installation spaces, facilitating the side - by - side arrangement of wires. The full - metal material enhances the structural stability, making it appropriate for compact device integration scenarios.
☑ It can flexibly adapt to 2 - to - 8 - core circuit connection scenarios. The welding fixation method ensures a tight connection of the wires, effectively reducing transmission losses and guaranteeing the stable and reliable transmission of signals and power.
☑ The full - metal shell has excellent corrosion - resistance and compression - resistance, enabling it to withstand the erosion of harsh environments. It also has certain dust - proof and electromagnetic - interference - proof effects, prolonging the product's service life and being suitable for complex industrial working conditions.
☑ It is widely used for wire connections in industrial automation equipment, instrumentation, etc. Combining the features of easy installation, durable structure, and stable transmission, it meets the usage scenarios that require the protection and reliability of the connector.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
If you would like to know more about our products and services, please send us a message. Our experts will contact you as soon as possible.
