This connector has multiple performance advantages. Its rated current generally ranges from 1 - 5A, and the rated voltage covers 250V, which can meet the power transmission requirements of most industrial scenarios. The contact parts are designed with an elastic structure, ensuring that the plug - and - unplug lifespan can reach thousands of times. It has low signal transmission loss and strong anti - interference ability. Some high - end models have a protection level of up to IP67, enabling them to adapt to harsh environments such as humidity and dust. Meanwhile, it has high and low - temperature resistance characteristics and can work stably within a wide temperature range from - 40°C to 85°C.

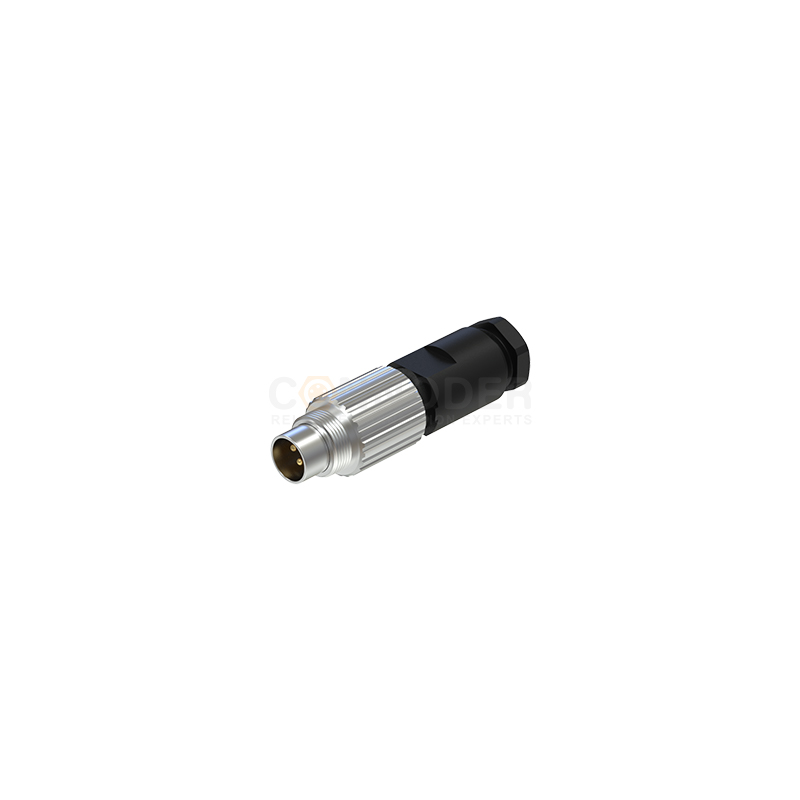

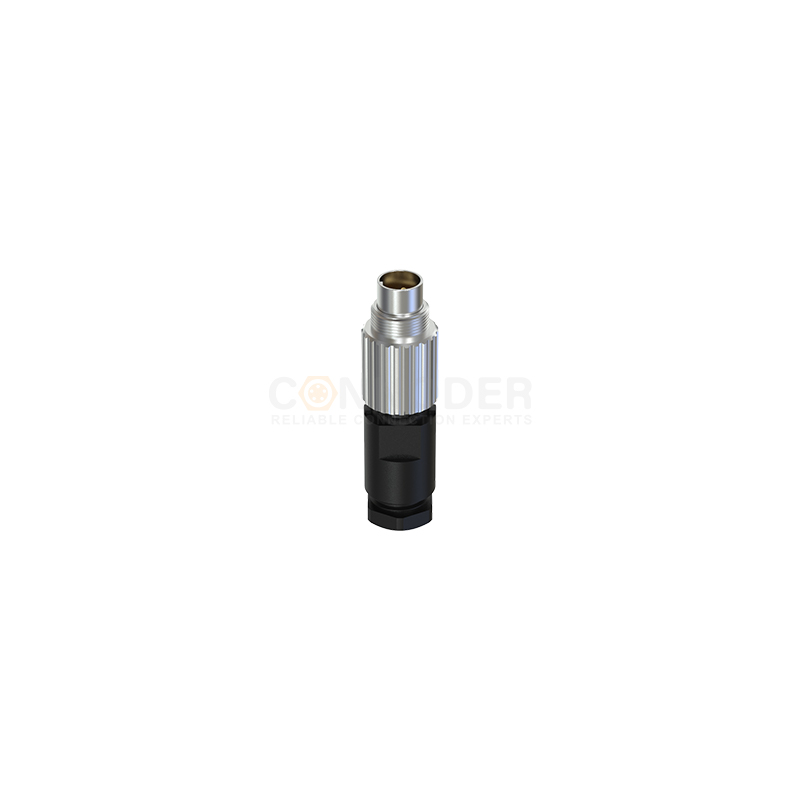

☑ This product is the male end of the M9 circular connector, featuring a snap - type connection and a plastic shell design. The plastic shell is lightweight and has good insulation properties. The snap - type structure enables easy installation and disassembly, allowing for connection without the need for tools, which is suitable for rapid assembly scenarios.
☑ It can flexibly adapt to the requirements of 2 - 8 core circuits. The welding fixation method ensures tight line contact, effectively reducing transmission losses and guaranteeing the stable and reliable transmission of signals and power.
☑ The plastic shell has good aging - resistance and corrosion - resistance properties. It is lightweight and cost - controllable. Coupled with the snap - type locking structure, it has an excellent anti - detachment effect and is also convenient for later maintenance and inspection, improving the convenience of use.
☑ It is widely used for wire connections in devices such as consumer electronics and small - sized instruments. Combining the features of high - efficiency installation, cost - effectiveness, and stable transmission, it meets the scenarios where connection convenience and cost - performance are required.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
