The M9 circular connector is a common industrial - grade electrical interface. It is designed to offer stable connections in harsh environments. Its circular structure typically consists of a metal housing and a sealing ring, effectively preventing the ingress of dust and moisture. It is used to transfer control commands and data signals, ensuring seamless communication among different components of a robot. Also, it connects power cables to supply stable electricity to actuators and sensors. The environmental - protection and sealing design can withstand vibrations and corrosion in industrial settings, thus prolonging the equipment's lifespan.

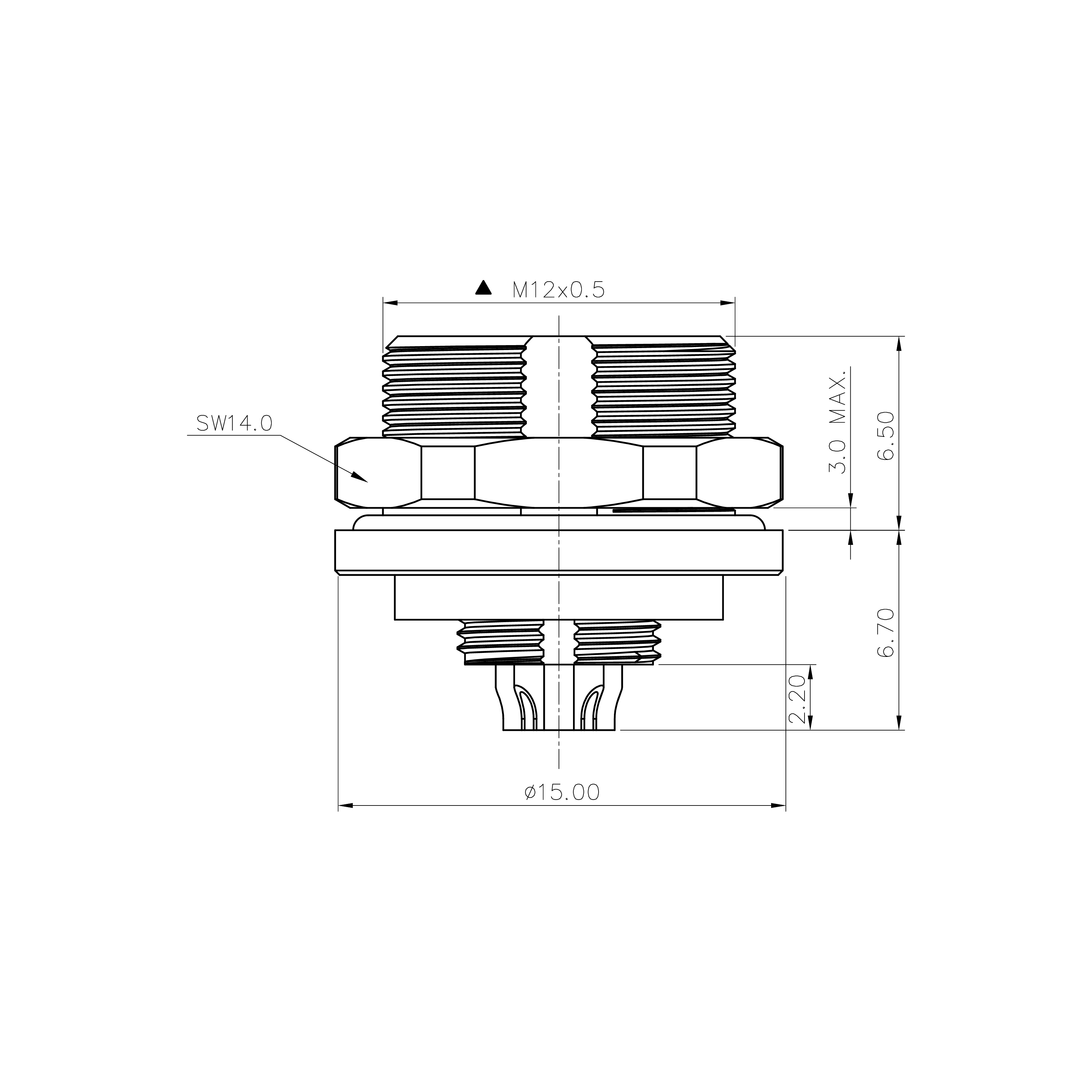

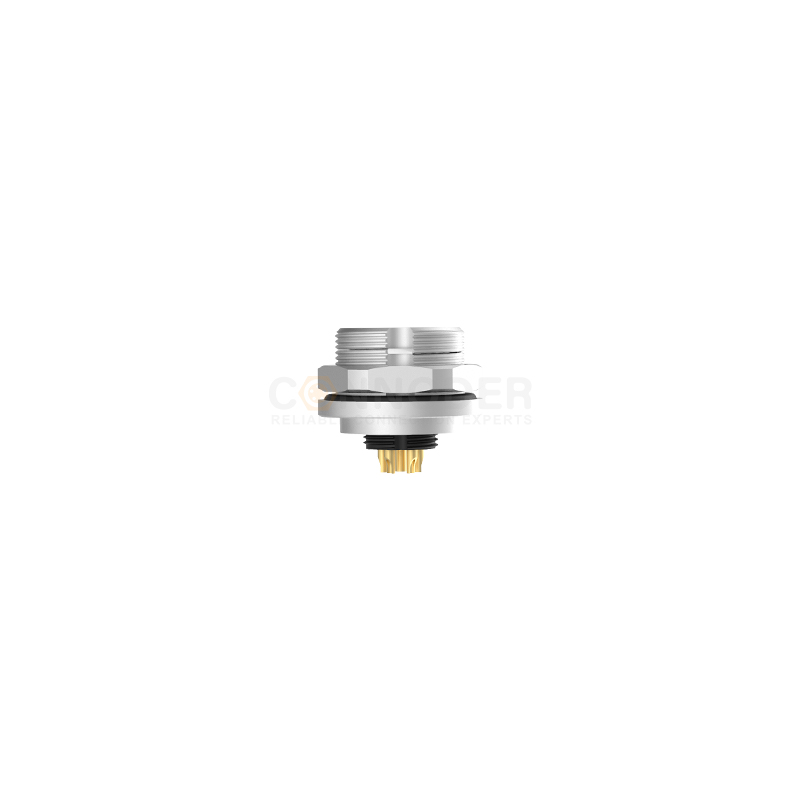

☑ The M9 circular connector is of female - end specification and adopts a rear - panel mounting design for panel - type installation. It can be fixed from the back of the panel, eliminating the need to occupy the front - side space. This makes it suitable for compact equipment installation scenarios, thus improving space utilization.☑ It can flexibly meet the requirements of 2 - to 8 - core circuits. The connection of circuits is achieved through welding, ensuring the stability of signal and power transmission, and is applicable to various transmission scenarios.☑ The product has a thread specification of M12x0.5 with high precision. After being screwed together, it not only offers strong firmness but also effectively prevents dust and loosening, providing reliable protection for the connection part and extending its service life.☑ Overall, it is suitable for panel - integration scenarios of industrial equipment, instruments, etc. With the features of convenient installation and stable connection, it can meet the requirements of working conditions that demand installation space and connection reliability.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
