The M9 circular connector is a common industrial - grade electrical interface. It is designed to provide a stable connection in harsh environments. Its circular structure usually features a metal shell and a sealing ring, which can effectively prevent the intrusion of dust and moisture. It is used to transmit control commands and data signals, ensuring smooth communication among various components of the robot. It can also connect the power cord to supply stable power to actuators and sensors. The environmental protection and sealing design can resist the vibration and corrosion in the industrial site, thus extending the service life of the equipment.

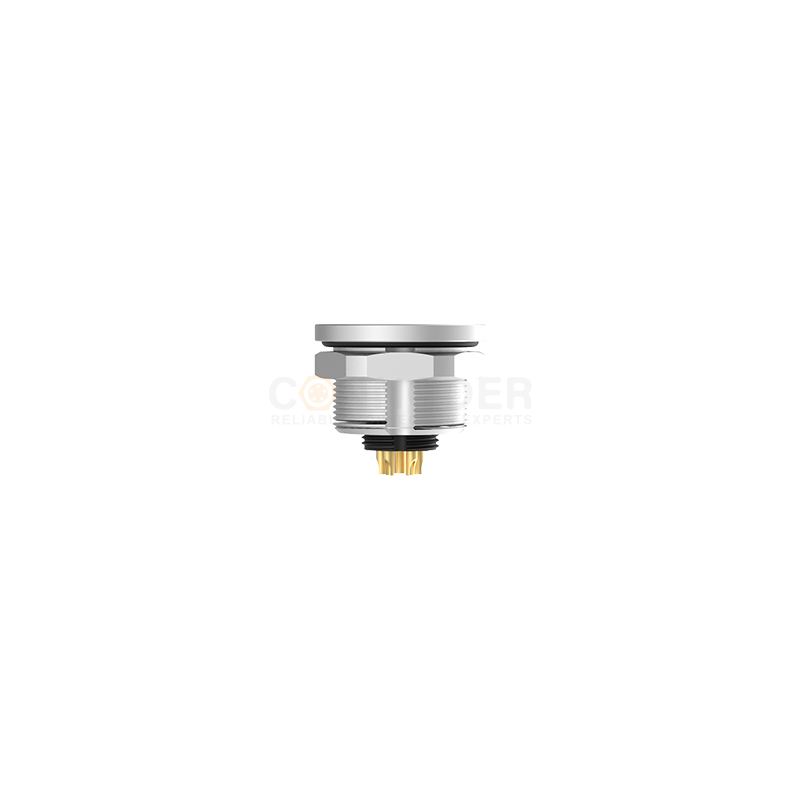

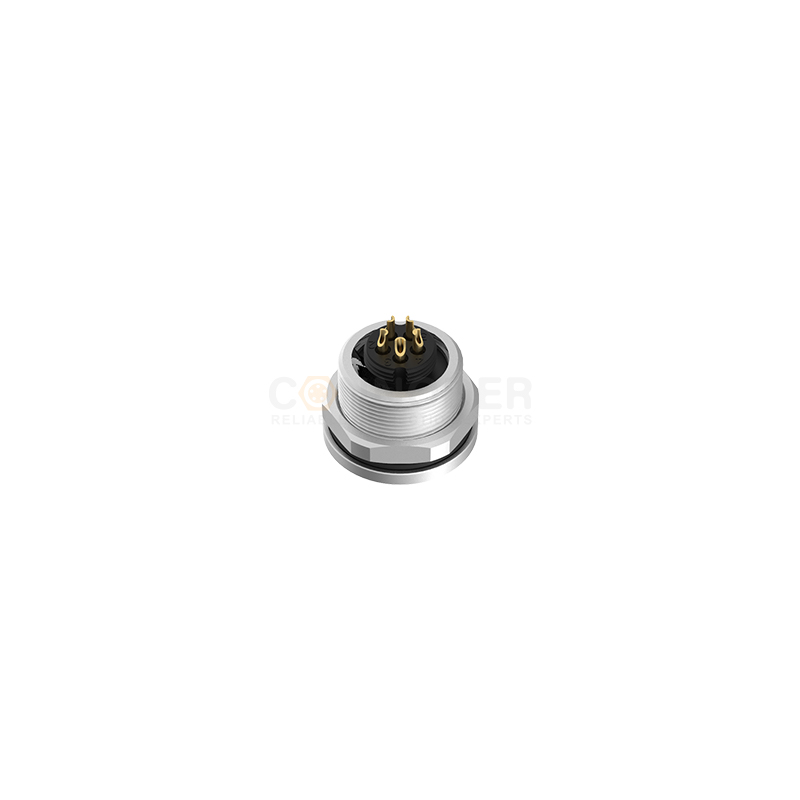

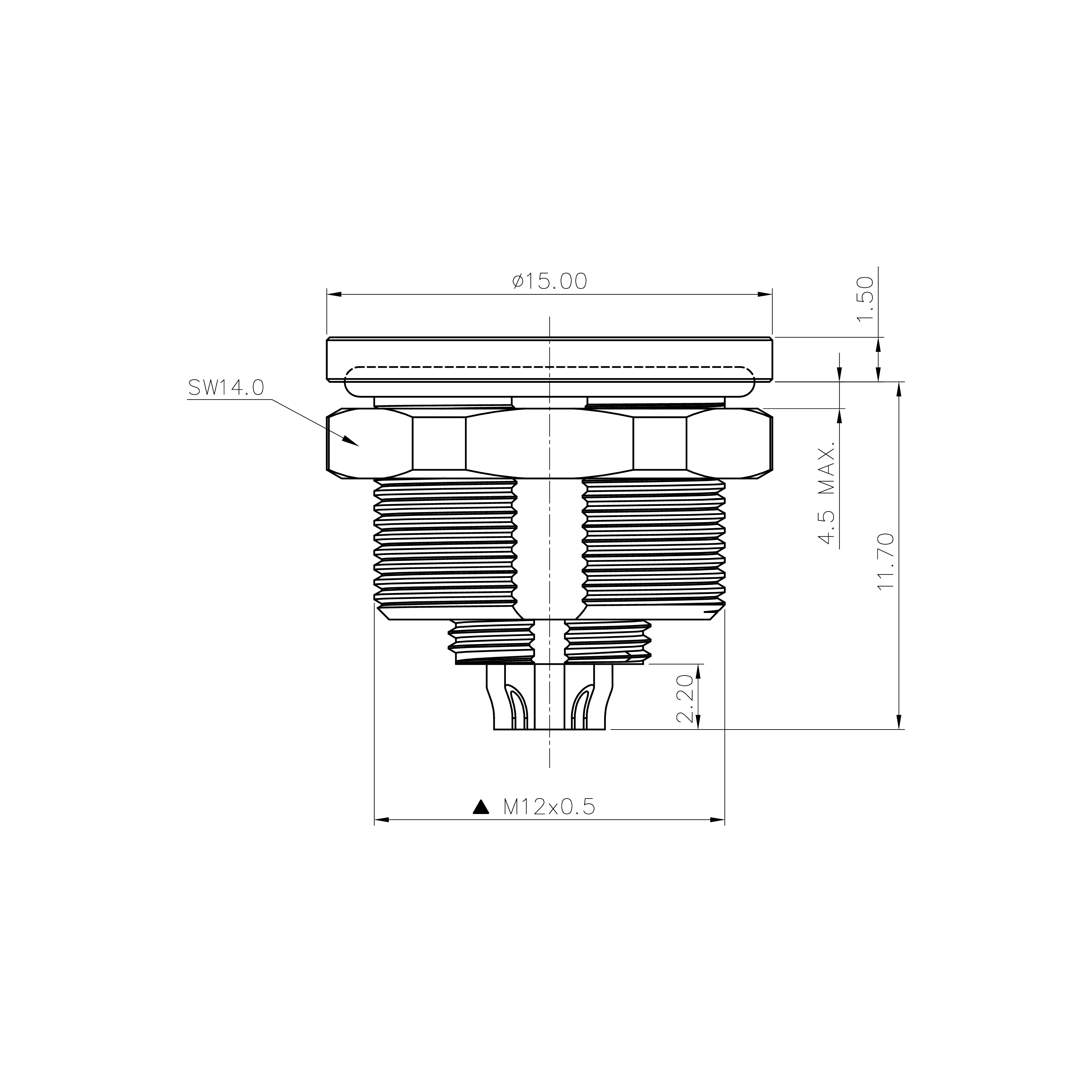

☑ This product is the female end of the M9 circular connector, featuring a front - panel mounting design in a panel - type. It can be installed directly from the front of the panel with simple and efficient steps, eliminating the need for additional equipment disassembly, thus suiting various panel - integration requirements.☑ It flexibly covers the connection scenarios of 2 - to 8 - core circuits. The wire - welding fixing method ensures a tight connection of the circuits, enabling stable signal and power transmission, and meeting the usage requirements of different core numbers.☑ With a thread specification of M12x0.5, it meets the precision standard and has a firm screw - fit. It can effectively resist the intrusion of external dust and reduce the risk of loosening caused by vibration, providing reliable protection for the connection part and ensuring stable operation.☑ It is suitable for panel - mounting scenarios of industrial instruments, automated equipment, etc. It combines the core features of convenient installation and reliable connection, accurately meeting the working conditions that require installation efficiency and connection stability.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
