The M9 circular connector is a common industrial - grade electrical interface. It is designed to provide stable connections in harsh environments. Its circular structure typically features a metal housing and a sealing ring, which can effectively prevent the intrusion of dust and moisture. It is used to transmit control commands and data signals, ensuring smooth communication among various components of a robot. Additionally, it connects power cables to supply stable electricity to actuators and sensors. The environmental protection and sealing design can resist vibrations and corrosion in industrial sites, thus extending the lifespan of the equipment.

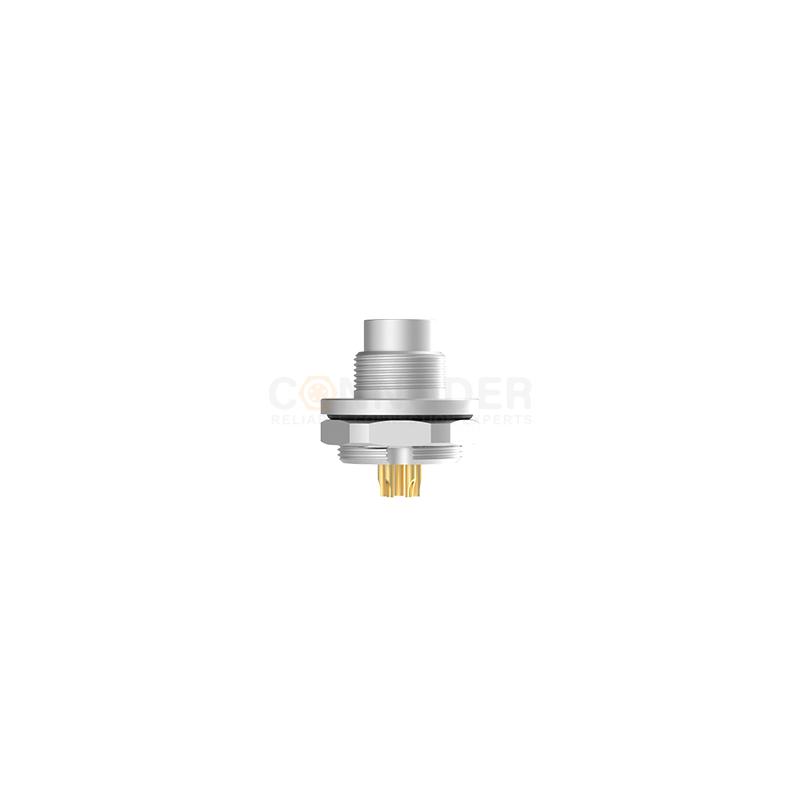

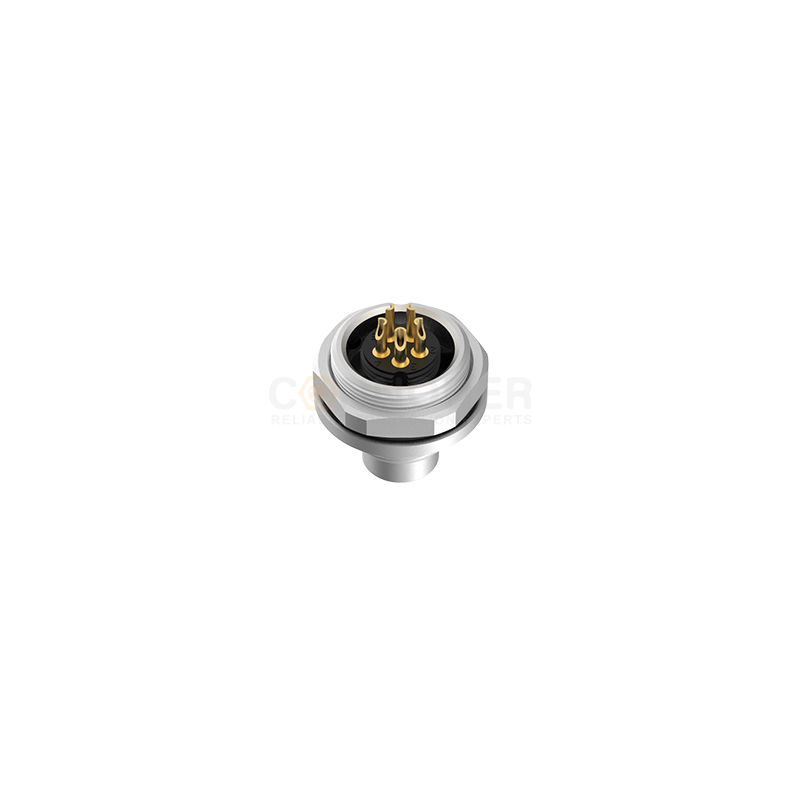

☑ This product is the male end of the M9 circular connector, featuring a front - panel mounting design for panel - type installation. It can be installed directly from the front of the panel with simple and efficient steps, eliminating the need for additional equipment disassembly, thus meeting various panel - integration requirements.
☑ It supports 2 - 8P wire - welding connection, flexibly covering connection scenarios for 2 - to 8 - core circuits. The wire - welding fixing method ensures a tight connection of the circuits, enabling stable signal and power transmission to meet the usage requirements of different core numbers.

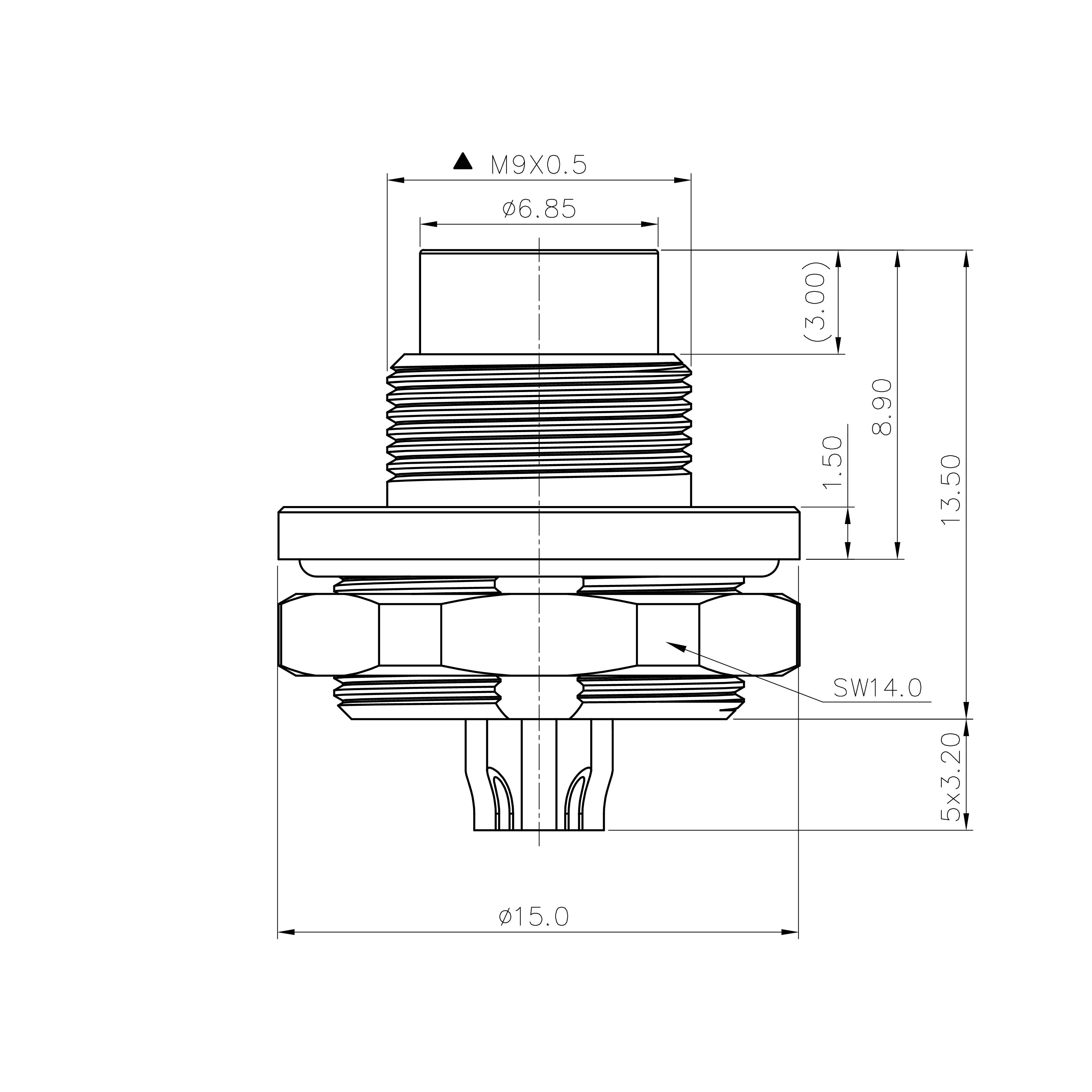

☑ With a thread specification of M12x0.5, it meets the precision standard and has a firm screw - fit. It can effectively resist the intrusion of external dust and reduce the risk of loosening caused by vibration, providing reliable protection for the connection part and ensuring stable operation.
☑ It is suitable for panel - mounting scenarios of industrial instruments, automated equipment, etc. Combining the core features of convenient installation and reliable connection, it precisely meets the requirements of working conditions that demand installation efficiency and connection stability.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
