The M9 circular connector is a common industrial - grade electrical interface. It is engineered to offer stable connections in harsh conditions. Its circular structure typically comprises a metal housing and a sealing ring, which can effectively block the intrusion of dust and moisture. This connector is used to convey control commands and data signals, ensuring seamless communication among the various components of a robot. It also links power cables to supply steady power to actuators and sensors. The environmental - protection and sealing design can withstand the vibrations and corrosion present in industrial sites, thereby prolonging the equipment's service life.

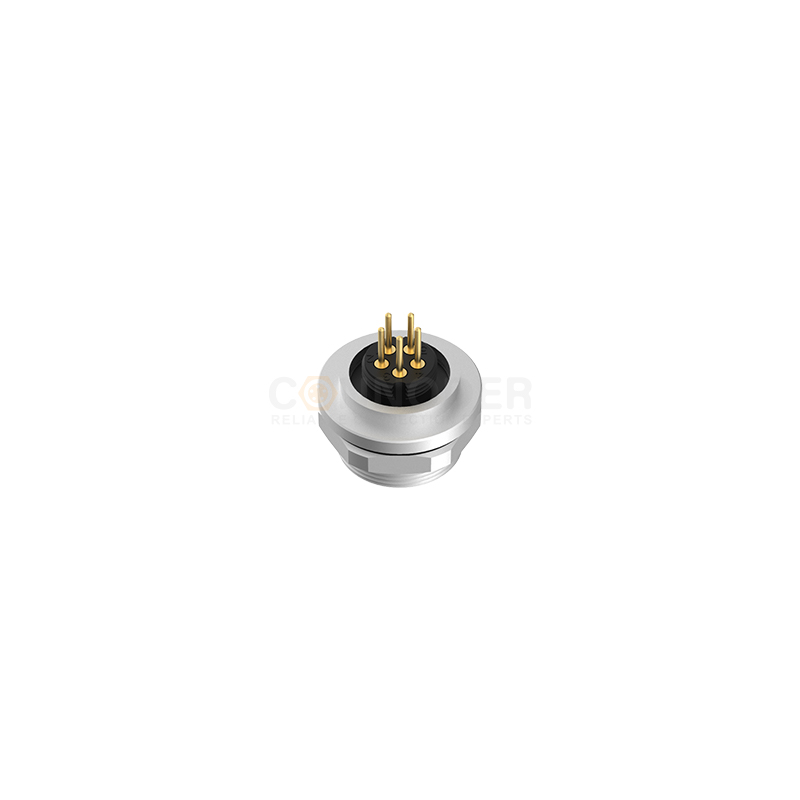

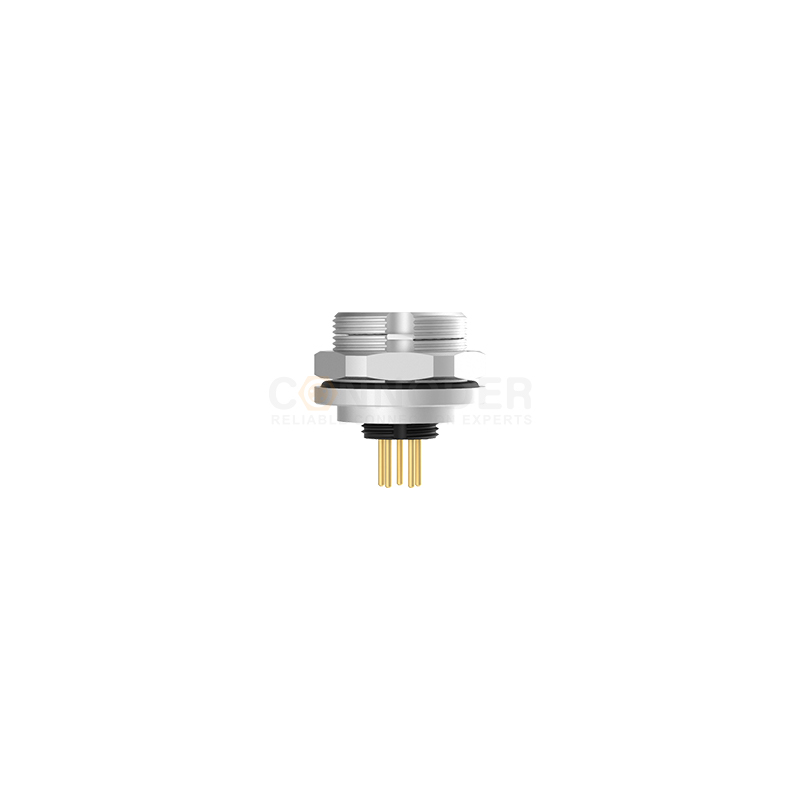

☑ This product is the female end of the M9 circular connector, featuring a rear - panel mounting design for panel - type installation. It is fixed from the back of the panel, leaving the front - side space unoccupied. The installation process doesn't affect the front - side layout of the equipment, making it suitable for compact integration scenarios.
☑ It supports 2 - 8P plug - in board connection, flexibly meeting the requirements of 2 - to 8 - core circuits. The plug - in board connection eliminates the need for welding, resulting in higher assembly efficiency. The precise circuit alignment ensures stable signal and power transmission.
☑ With a thread specification of M12x0.5, the thread meets the precision standard. After screwing, it provides strong firmness. It can effectively resist vibration, prevent dust, and avoid loosening, offering reliable protection for the connection part and being suitable for complex industrial environments.
☑ It caters to the panel - integration needs of industrial instruments, automated equipment, etc. Combining the advantages of space - saving installation, convenient assembly, and stable connection, it meets the demands of working conditions that require high installation efficiency and reliability.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
| Number of cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
||
| Number of cores | 2 | 3 | 4 | 5 |
| Female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
