This connector offers multiple performance advantages. Its rated current typically ranges from 1 - 5A, and the rated voltage covers 250V, meeting the power transmission demands of most industrial scenarios. The contact components are designed with an elastic structure, ensuring a plug - and - unplug lifespan of over thousands of times. It features low signal transmission loss and strong anti - interference capabilities. Some high - end models have a protection level of up to IP67, enabling them to adapt to harsh environments like humidity and dust. Additionally, it has high and low - temperature resistance, operating stably within a wide temperature range of - 40°C to 85°C.
☑ This product is the female end of the M9 circular connector, adopting a vertical installation structure combined with a full - metal shell. The shell has high rigidity and a stable structure. The vertical layout facilitates wire arrangement and space planning, making it suitable for the wire integration requirements of various devices.
☑ It can flexibly adapt to 2 - to - 8 - core circuit connection scenarios. The welding fixation method ensures tight wire contact, effectively reducing transmission losses and guaranteeing the stable and reliable transmission of signals and power.
☑ The full - metal shell has excellent corrosion - resistance and compression - resistance, capable of withstanding the erosion of harsh environments. It also has certain dust - proof and electromagnetic - interference - proof effects, prolonging the product's service life and being suitable for complex industrial working conditions.
☑ It is widely used for wire connections in industrial automation equipment, instrumentation, etc. Combining the features of easy installation, durable structure, and stable transmission, it meets the usage scenarios that require the protection and reliability of the connector.
| Number of Cores | 2 | 3 | 4 | 5 |

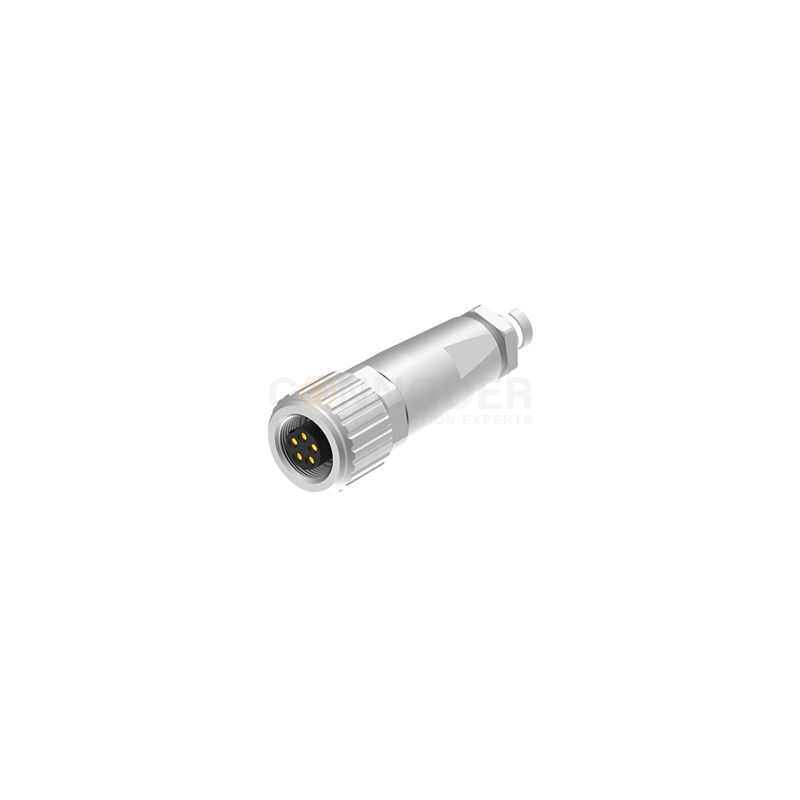

| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |

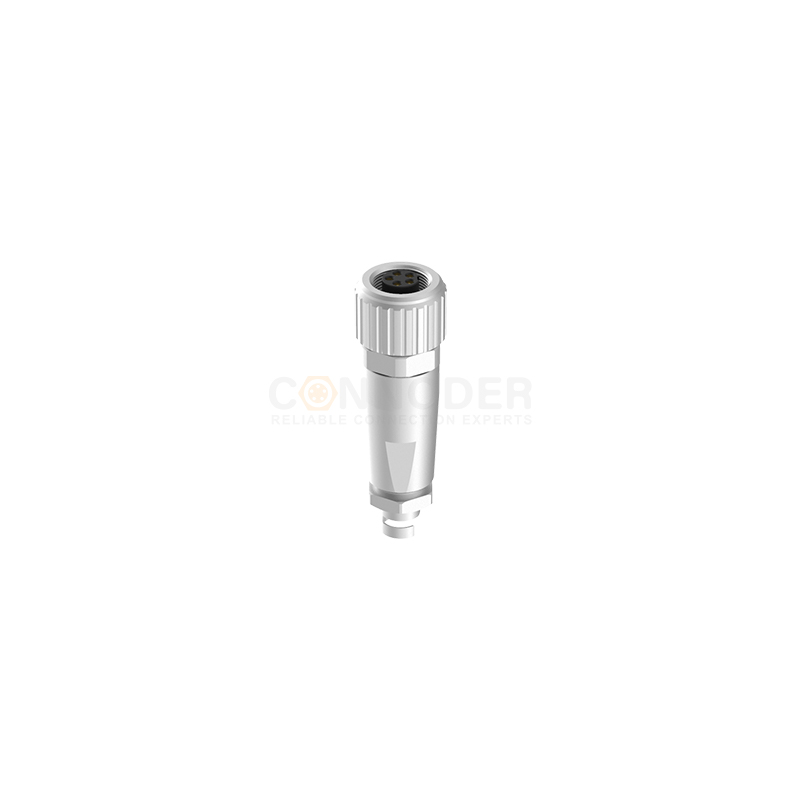

| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
