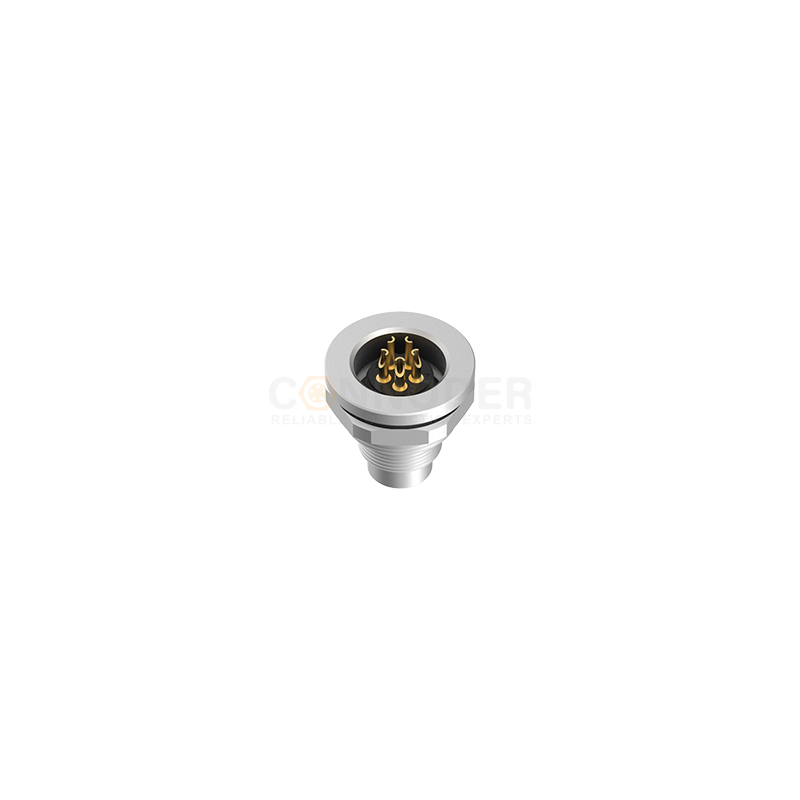

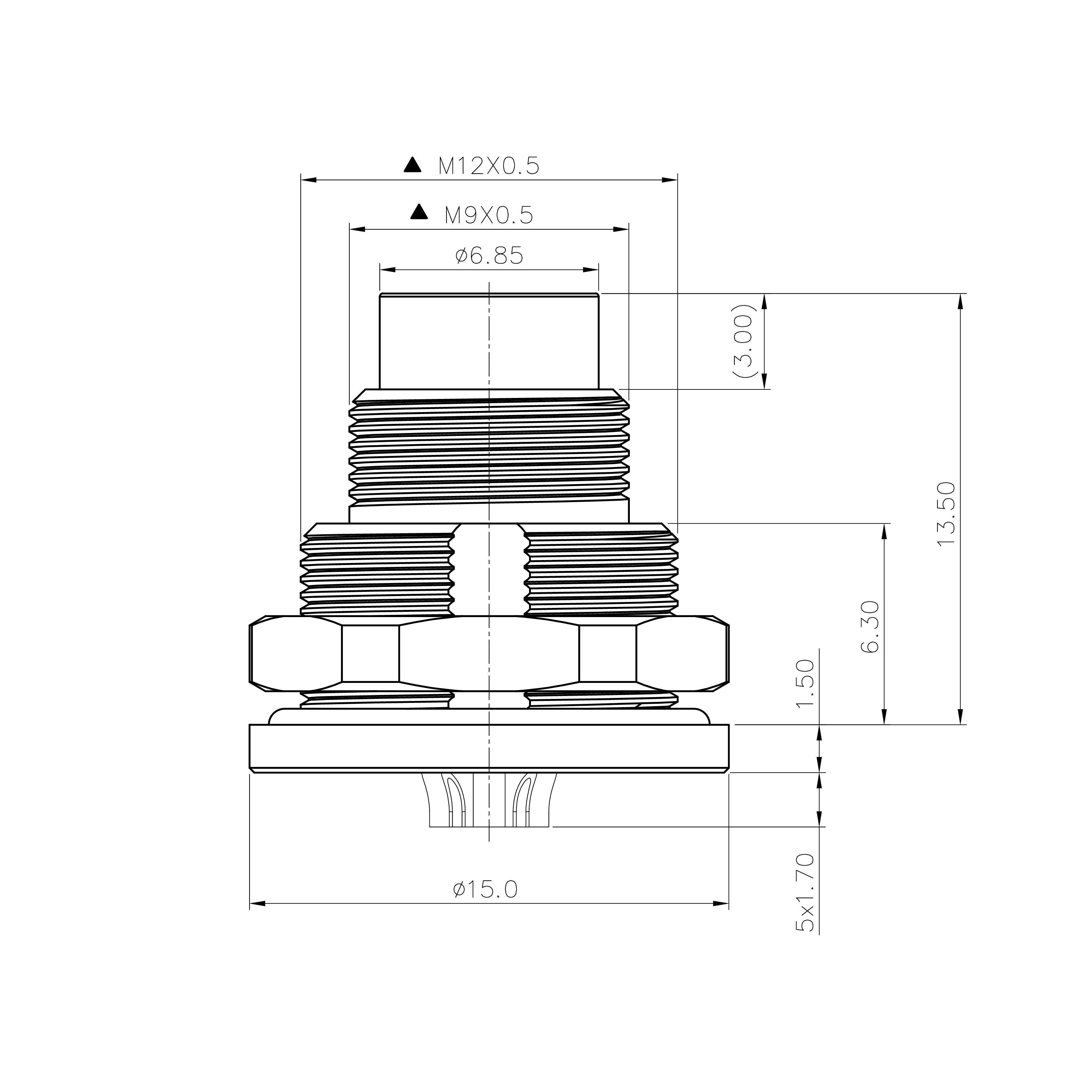

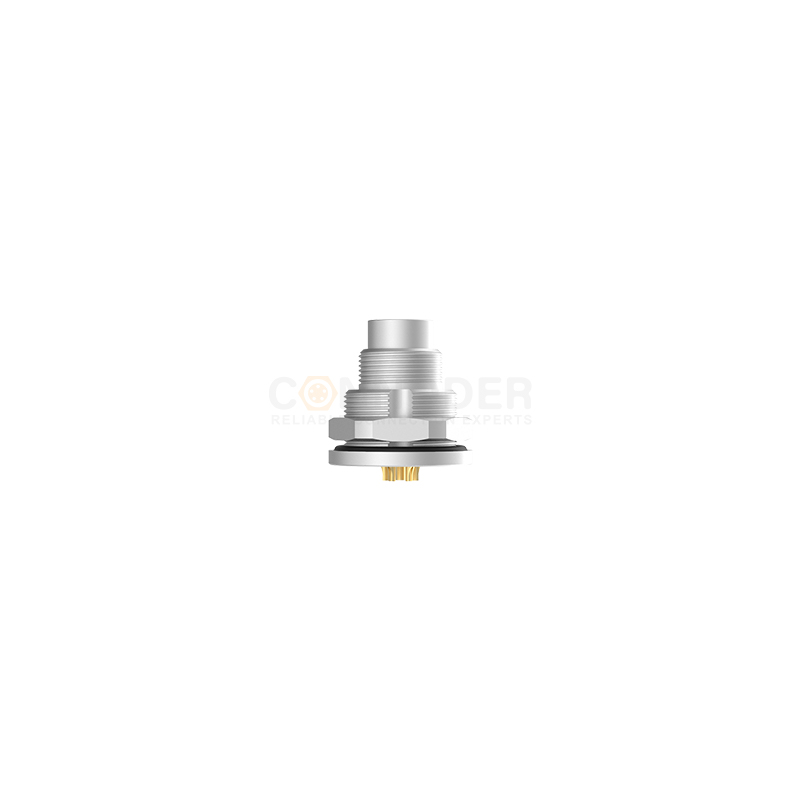

The M9 panel-mounted connector adopts a rear-mounted installation design, allowing for fixation from the back of the panel, saving space on the front and suitable for compact installation scenarios. The interface specification is 2-8P soldered type, supporting the soldering connection of 2 to 8 cores of wires, capable of stably transmitting signals and power, and meeting different core number requirements. The product's thread specification is M12x0.5, with high thread accuracy. After tightening, the sealing performance and firmness are strong, effectively preventing dust and loosening. The overall structure is suitable for panel integration scenarios of industrial equipment and instruments, with convenient installation and high connection reliability, and is suitable for working conditions that require installation space and connection stability.
☑ The M9 circular connector is of male - end specification and adopts a rear - panel mounting design in a panel - type. It can be fixed from the back of the panel without occupying front - side space, which is suitable for compact installation scenarios of equipment and improves space utilization.☑ This connector supports wire - welding connection with 2 - 8 pins, flexibly meeting the requirements of 2 - to 8 - core circuits. The circuit connection is achieved through welding, ensuring the stability of signal and power transmission, and is suitable for various transmission scenarios.☑ The product has a thread specification of M12x0.5 with high thread precision. After screwing, it not only has strong firmness but also effectively prevents dust and loosening, providing reliable protection for the connection part and extending the service life.☑ Overall, it is suitable for panel - integration scenarios of industrial equipment, instruments, etc. It combines the characteristics of convenient installation and stable connection, meeting the requirements of working conditions that have demands for installation space and connection reliability.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
