The M9 circular connector consists of three core components: the shell, the insulator, and the contacts. The shell is mostly made of brass with nickel - plating or stainless - steel, combining mechanical strength and corrosion - resistance. The insulator is made of high - temperature - resistant engineering plastic, ensuring insulation performance and structural stability. The contacts adopt a pin - and - socket design. Through precision stamping and electroplating processes, they achieve low contact resistance and excellent electrical conductivity. Some products are equipped with snap - type or threaded locking structures, enhancing connection firmness and effectively preventing disconnection risks in vibrating environments.

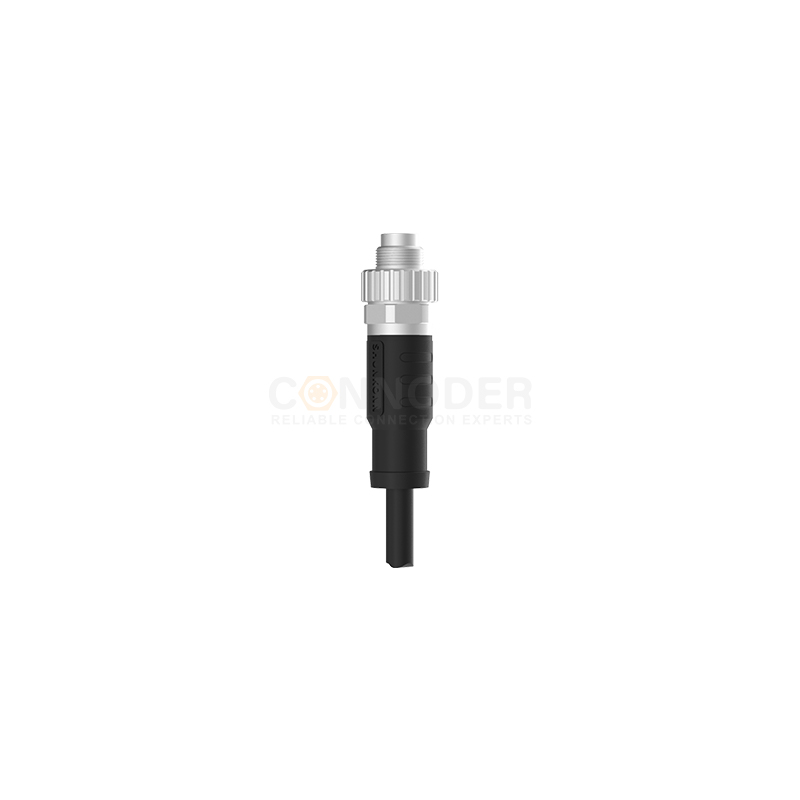

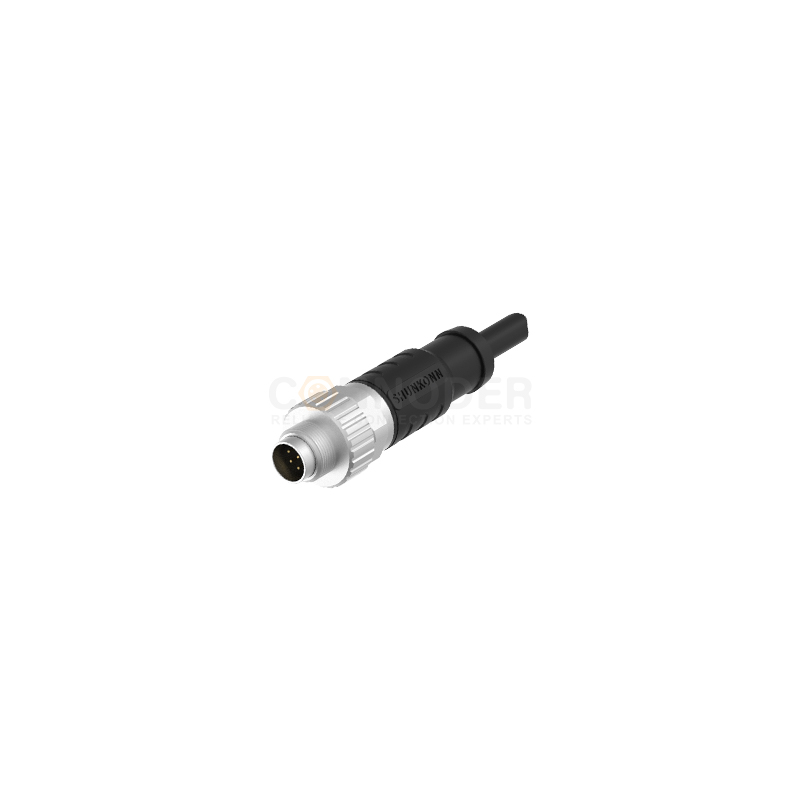

☑ This product is the male end of the M9 circular connector, featuring a vertical structure combined with encapsulated - molding wire. The vertical layout facilitates the vertical arrangement of wires. The encapsulation process integrates the connector head and the wire, resulting in a neat structure and convenient installation, making it suitable for various device - integration scenarios.
☑ It can flexibly meet the requirements of 2 - 8 - core circuits. The combination of welding fixation and encapsulation protection ensures tight wire connections, reduces signal attenuation and transmission losses, and guarantees the stable transmission of power and signals.
☑ The encapsulated - molding wire has good bending - resistance and abrasion - resistance, capable of withstanding daily pulling and environmental erosion. It also provides insulation protection, enhancing safety in use and extending the product's service life.
☑ It is widely used for wire connections in small - sized devices, instrumentation, etc. Combining the features of flexible installation, convenient wiring, and stable transmission, it meets the scenarios where space adaptability and connection reliability are required.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
