The M9 circular connector is composed of three core components: the housing, the insulator, and the contact piece. The housing is mostly made of nickel-plated brass or stainless steel, which combines mechanical strength and corrosion resistance. The insulator is made of high-temperature-resistant engineering plastics to ensure insulation performance and structural stability. The contact piece adopts a pin-hole design and achieves low contact resistance and excellent conductivity through precise stamping and electroplating processes. Some products are equipped with snap fasteners or threaded locking structures to enhance connection firmness and effectively prevent detachment risks in vibration environments.

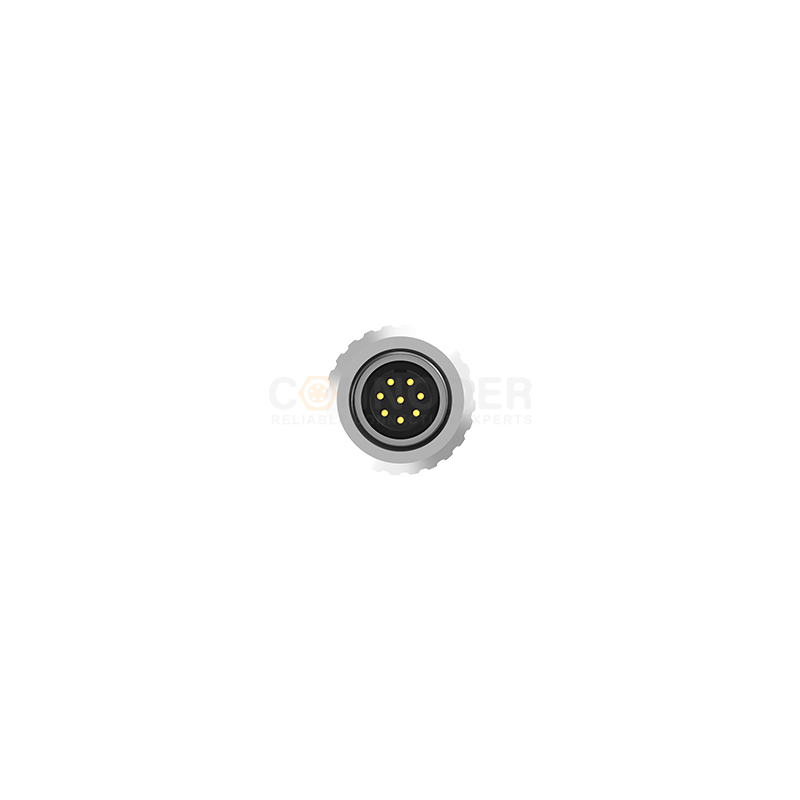

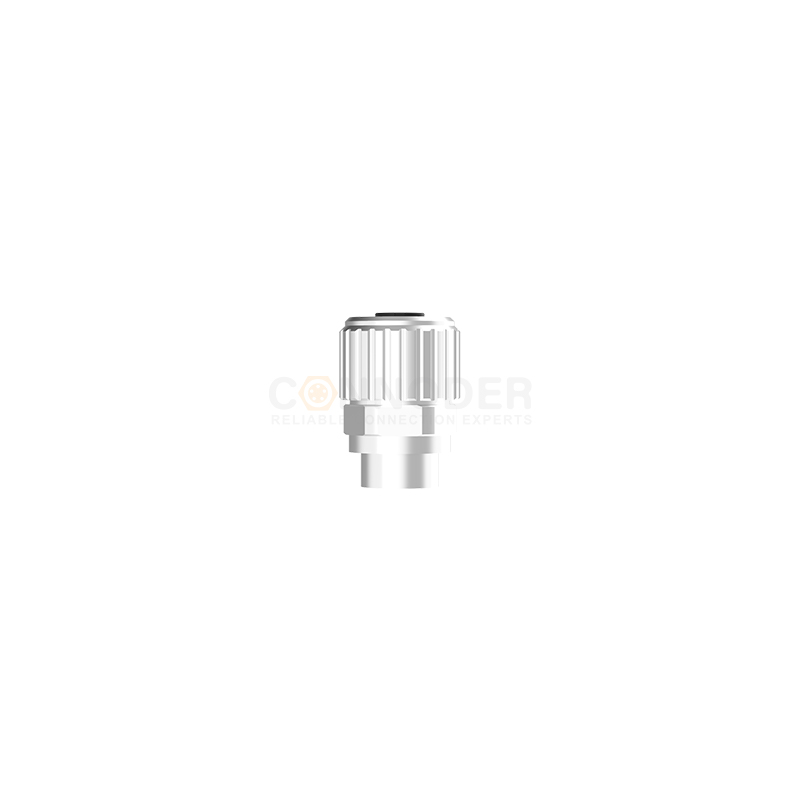

☑ This product is the wire - end specification of the M9 connection cable's female end, concentrating on wire - connection scenarios. It features a simple yet practical structural design. The female interface has strong adaptability, and the wire - end directly links to the circuit, enabling easy installation and suiting the wiring needs of various devices.☑ It can flexibly accommodate the requirements of 2 - 8 - core circuits. The combination of welding fixation and encapsulation protection ensures close wire contact, minimizes signal attenuation and transmission losses, and guarantees the stable transmission of power and signals.☑ The wiring method is flexible and highly adaptable. Assembly can be accomplished without the need for complex accessories. The welded connection is highly secure, capable of withstanding minor pulling during normal use. It's convenient for subsequent maintenance, cutting down on usage costs.☑ It is widely applied to wire connections in small - sized devices, instrumentation, etc. With its flexible installation, convenient wiring, and stable transmission, it meets the demands of scenarios where space adaptability and connection reliability are essential.
| Number of Cores | 2 | 3 | 4 | 5 |
| Male end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
|
 |
||
| Number of Cores | 2 | 3 | 4 | 5 |
| female end |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
| Number of Cores | Color of 2 - Pin Core Wire | Number of Cores | Color of 6 - Pin Core Wire | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| 4 | BK |  |
|||
| Number of Cores | Color of 3 - Pin Core Wire | 5 | GY |  |
|
| 1 | BN | |
6 | PK |  |
| 2 | BU | |
|||
| 3 | BK | |
Number of Cores | Color of 7 - Pin Core Wire | |
| 1 | WH | |
|||
| Number of Cores | Color of 4 - Pin Core Wire | 2 | BN | |
|
| 1 | BN | |
3 | GN |  |
| 2 | WH | |
4 | YE |  |
| 3 | BU | |
5 | GY | |
| BK | |
6 | PK | |
|
| 7 | BU | |
|||
| Number of Cores | Color of 5 - Pin Core Wire | ||||
| 1 | BN | |
Number of Cores | Color of 8 - Pin Core Wire | |
| 2 | WH | |
1 | WH | |
| 3 | BU | |
2 | BN | |
| 4 | BK | |
3 | GN | |
| 5 | GY | |
4 | YE | |
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
