Serial Code : M12 Product Code : MC12XF-08R2LSLNS301
Get a Quotation Sample Request Selection Catalog
产品详细信息
Technical dataBusiness DataDownloadSupporting ProductsRelated ProductsRelated Videos

Technical data

Product Details

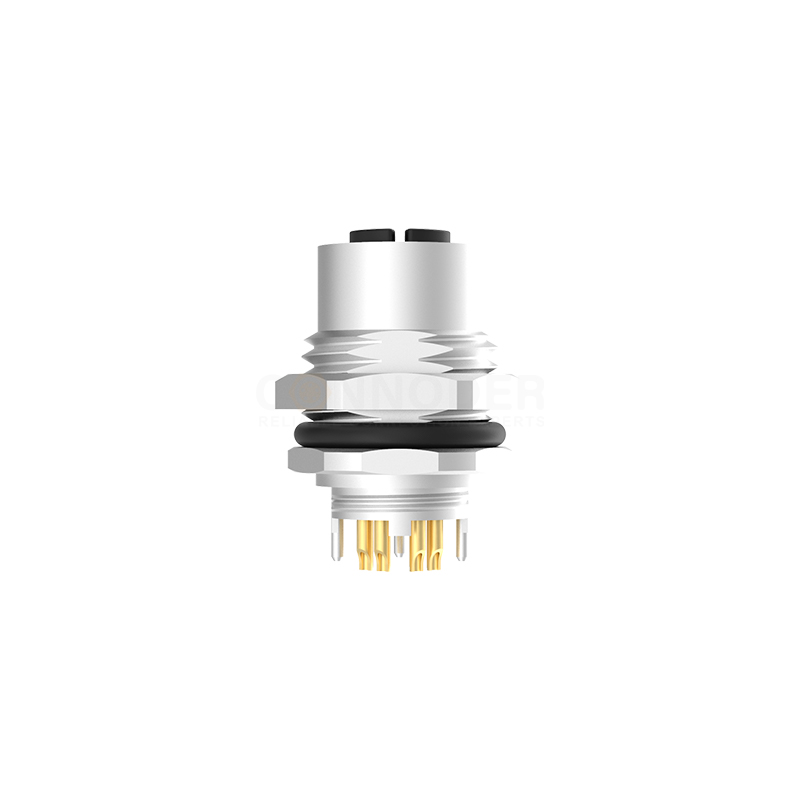

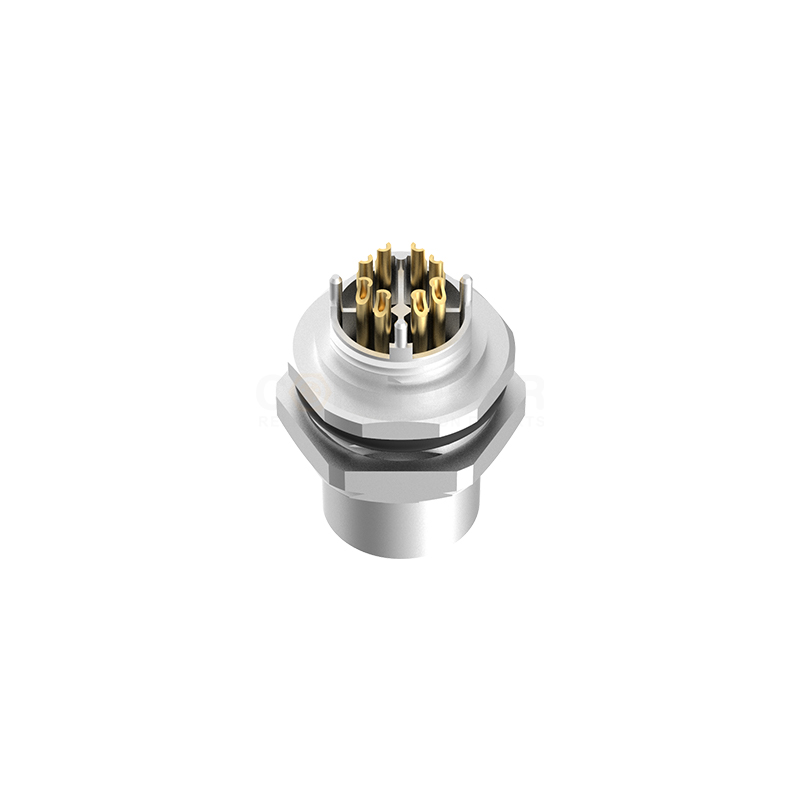

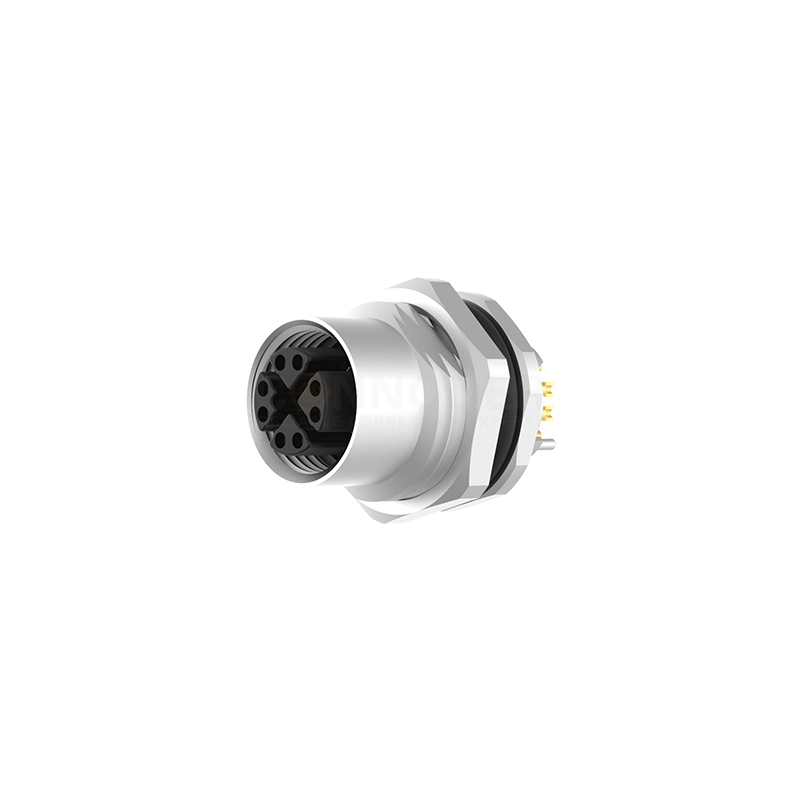

M12 X Coded Connectors Plate Rear Mount 8PIN Female Solder Type M16*1.5
M12 X Coded Connectors Plate Rear Mount 8PIN Female Solder Type M16*1.5

☑ High-Speed Data Transmission: X-coded M12 connectors support data transfer rates of up to 10 Gbps, making them suitable for applications requiring high-speed Ethernet communication.
☑ Protection Rating: Features an IP67 protection rating, which prevents dust ingress and can withstand short-term submersion in water without adverse effects.
☑ Shielding Performance: Incorporates an alloy shielding layer design that provides full-range shielding against Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring the speed and stability of data transmission remain unaffected by external factors.
☑ Pin Count Specification: M12 X-coded connectors typically come with an 8-pin configuration, complying with the IEC 61076-2-109 standard. They are compatible with Category 6A (CAT6A) cables and can meet the requirements of high-speed networks.
☑ Temperature Adaptability: Operates within a temperature range of -40℃ to +85℃, enabling stable performance under extreme conditions.
☑ Low-Resistance Contact Points: Ensure minimal energy loss, enhancing the overall efficiency and reliability of the system.

Instruction
Operation Precautions
To achieve the specified electrical and mechanical parameters, it is necessary to ensure that the connector is correctly locked and installed. If the connector is not locked or is at risk of contamination, it must be sealed with a protective cover with a protection level >IP54. The impact caused by stranded wires, cables, or PCB components must also be considered.

Product Attributes
Product Type
M12 Circular Connector
Applications
Power, Signals
Sensor Type
General - purpose
Gender
Female
Number of Cores
8 PIN
Encoding
X Code
Thread Type
M16×1.5

Material Specifications
Shell Material
Nickel - Plated Copper
Flame Retardant Rating, Complies with UL 94
V0
Sealing Material
Epoxy Resin / Rubber
Contact Material
Gold-Plated Copper
Contact Carrier Material
PA9T

Installation
Installation Type
Rear Panel Installation
Hole Size

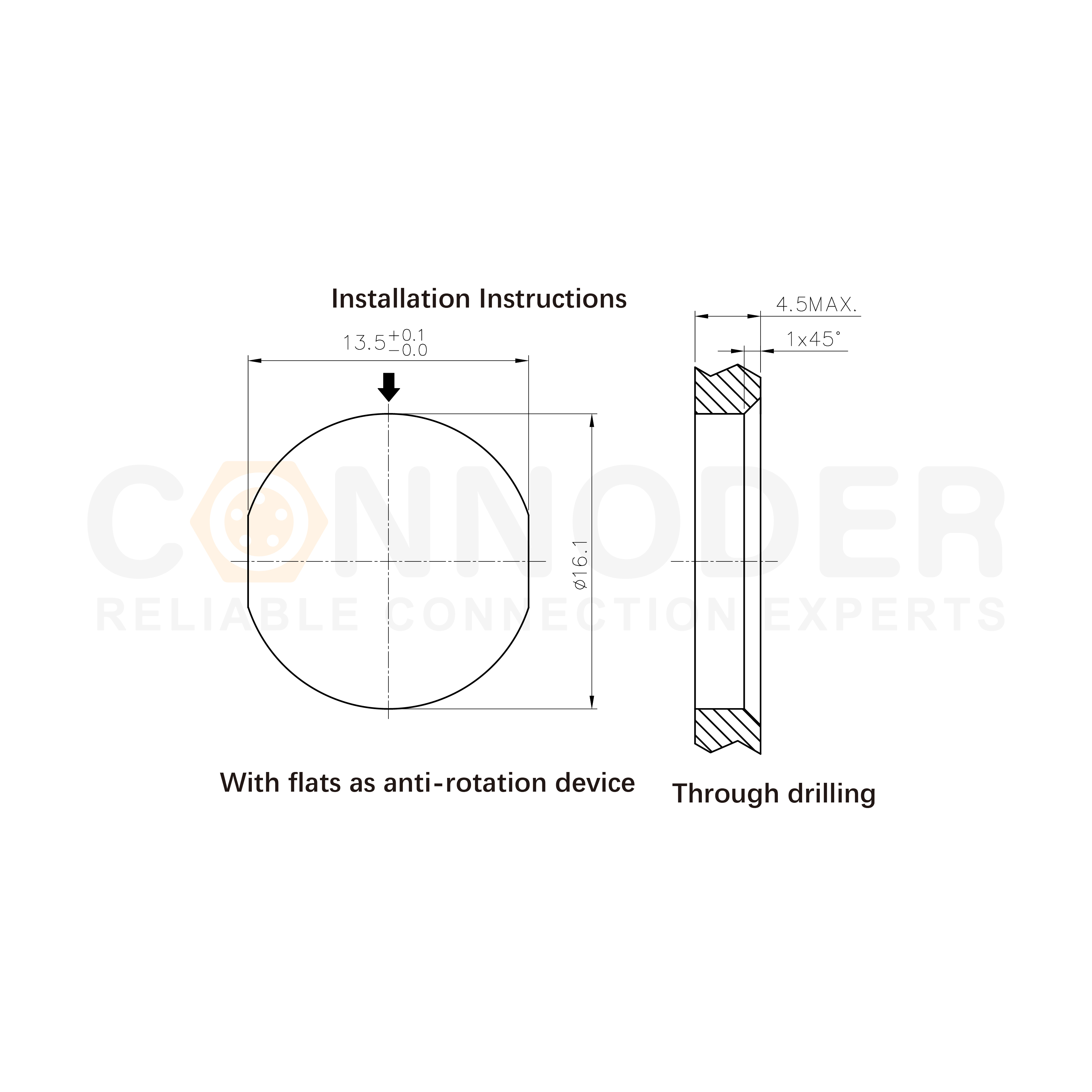

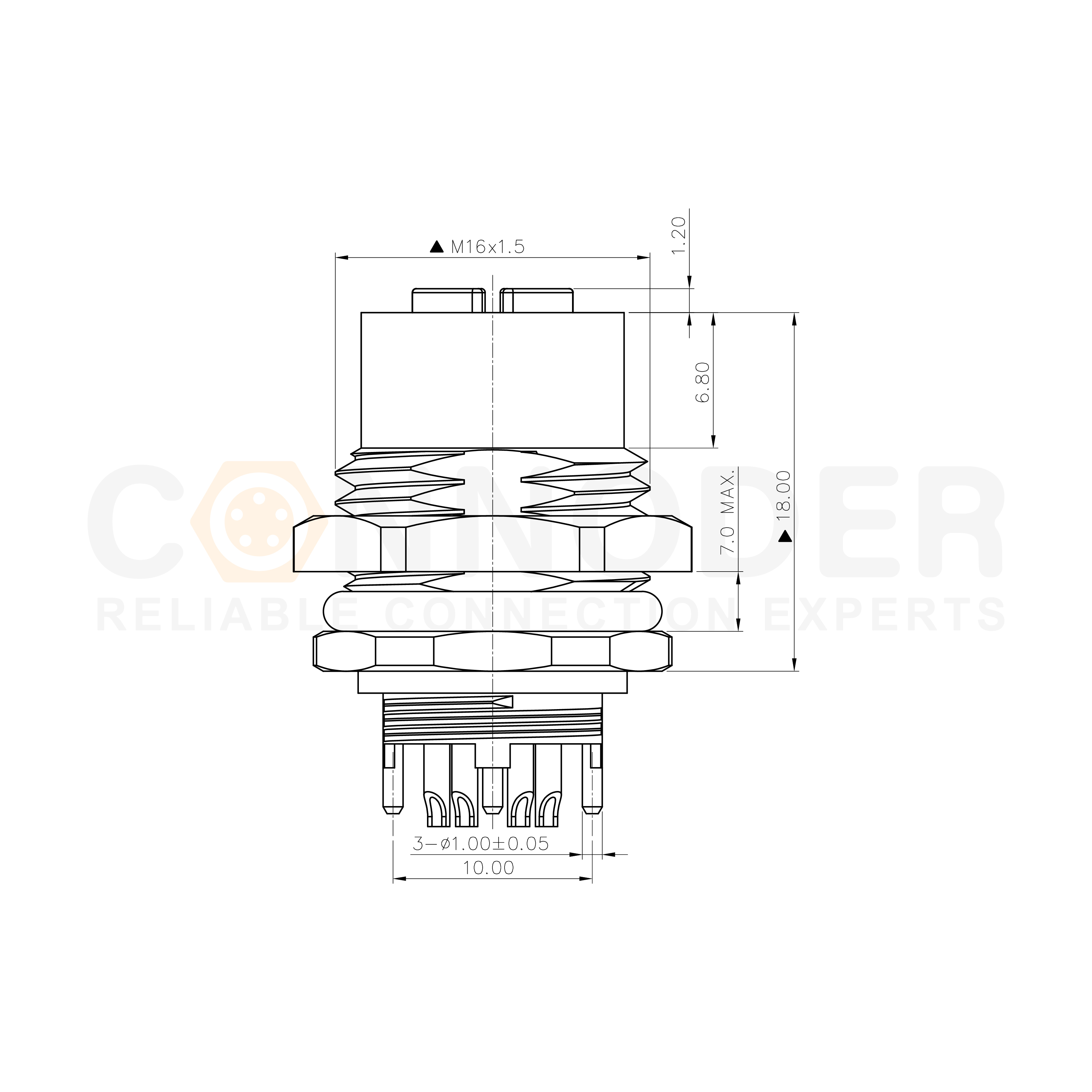

M16*1.5 (For details, please refer to the drawing.)

Electrical characteristics
Contact Resistance
≤5mΩ
Insulation Resistance
100 mΩ
Rated Voltage
AC:50V DC:60V
Rated Current
0.5A

Electrical Parameters

Product model
Pins
Rated current
Rated voltage
Wire Gauge/Size
A/C
D/C
AWG
mm²
MC12XF-08R2LSLNS301
8
0.5A
50V
60V
 26-24
0.14-0.25



Fool-proof Core Diagram

Pins 8X 6Y 8Y
Male

Pins 8X 6Y 8Y
Female



Wire Definition

Pins M12 X 8 Pin Core Color Pins M12 Y 6 Pin Core ColorPins Pins M12 Y 8 Pin Core Color
1 WHOG D1+ 1 WHOG D1+  1 WHOG  D1+
2 OG D1- 2 OG D1- 2 OG D1-
3 WHGN D2+ 3 WHGN D2+ 3 WHGN D2+
4 GN D2- 4 GN D2- 4 GN D2-
5 WHBN D4+ 5 BU D4+ 5 BU D4+
6 BN D4- 6 WH D4- 6 WH D4-
7 WHBU D3-         7 BN D3-
8 BU D3+         8 BK D3+

Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.



Mechanical Characteristics
Insertion/Removal Cycle
Greater than or equal to 500 times

Connection Data
Connection Mode
Welding Connection
Contact Type
Socket With Type

Environment and Real Conditions
Degree of Protection (After Installation)
IP67/IP68
Ambient Temperature (During Operation)
-25 ° - +85 °C
Ambient Temperature (During Operation)
-40 ° - +85 °C (Without Mechanical Drive)

Business Data
Packaging Unit
1 pc
Minimum Order Quantity
1 pc
Weight per Piece (Excluding Packaging)
30g
