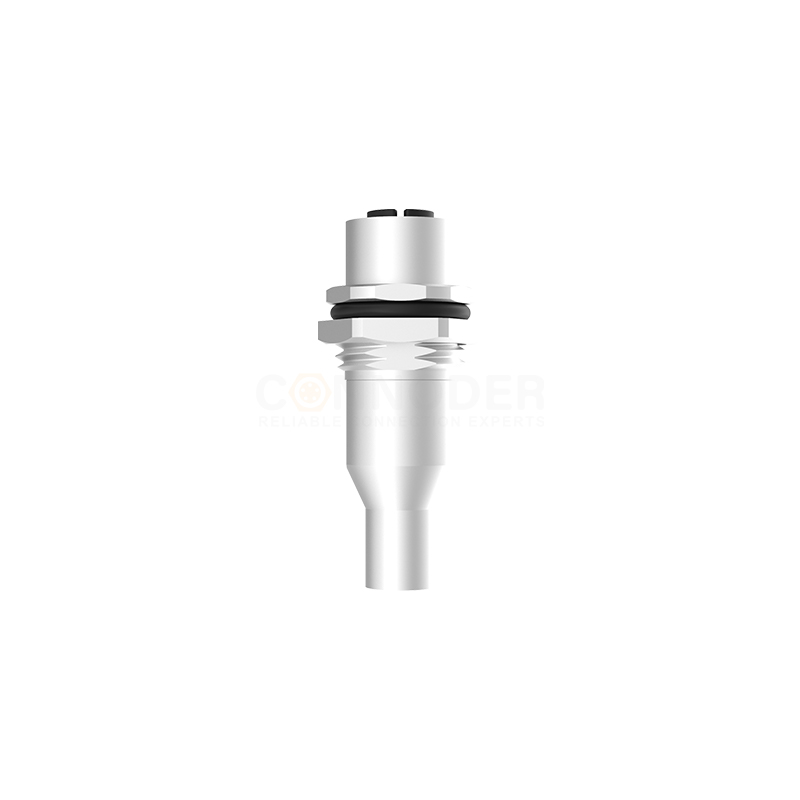

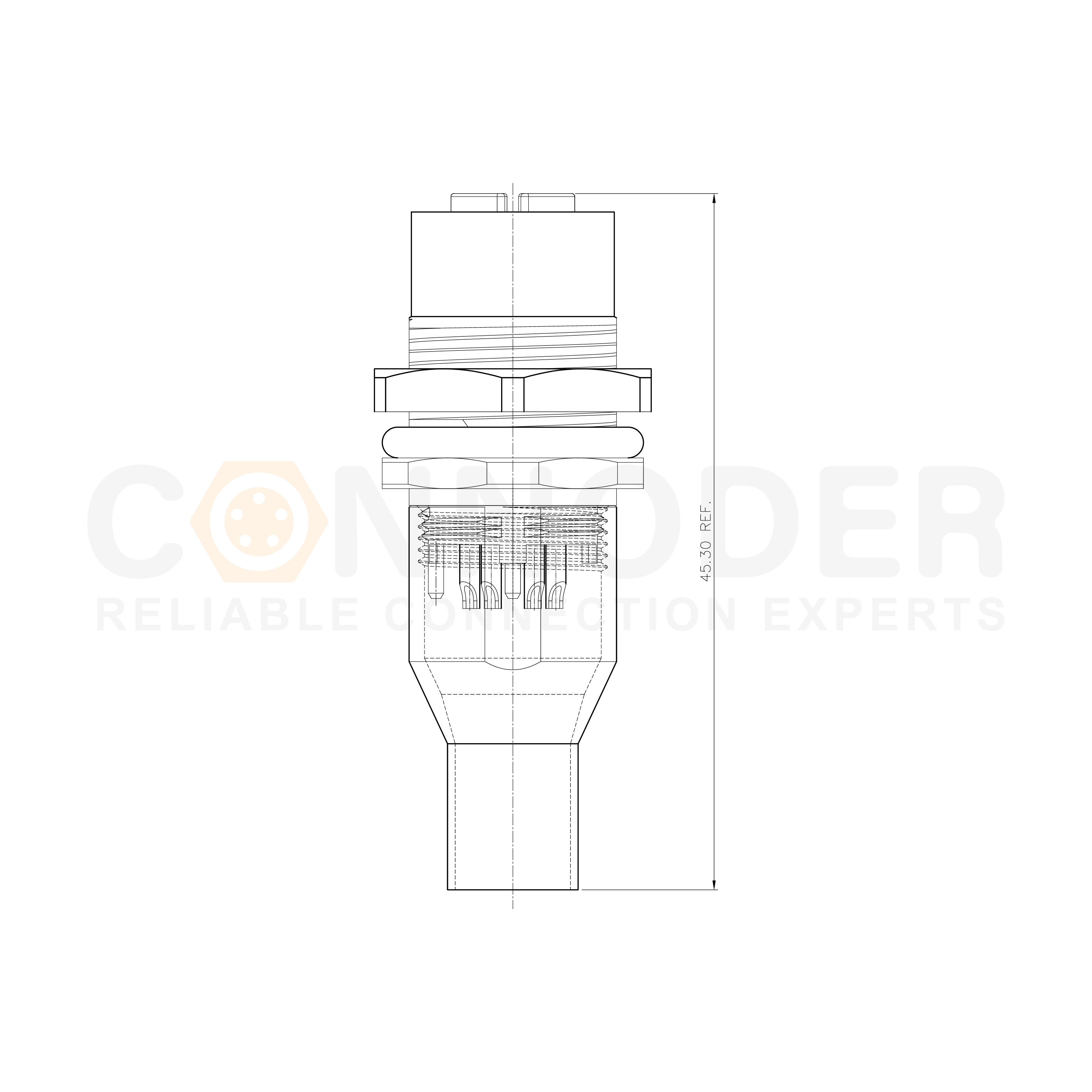

SKM12 X Series M12 X Coded Connectors Board Front Mount 8PIN Female Solder Type M16*1.5 shielded

M12 X coded circular connector design features

Thread locking mechanism: The standard thread locking method ensures the safety and reliability of the connection and maintains a stable connection even in vibration and shock environments.

Multiple coding options: In addition to X coding, there are other coding types such as A, B, D, and each coding corresponds to different application scenarios and technical specifications. X-coding refers specifically to connectors that support data rates up to 10 Gbps.

Durable structure: The shell is made of high-quality metal materials, with excellent impact resistance and wear resistance, and the protection grade reaches IP67, which can effectively resist the influence of dust, moisture and other harsh environmental factors.

Electrical performance of M12 X coded circular connectors

High-speed data transfer: The X-coded M12 connector supports data transfer rates of up to 10 Gbps and is suitable for applications where Super Class 6 cable (CAT6A) is required. Meet the needs of modern industrial networks.

Shielding and anti-interference ability: the internal alloy shielding layer can effectively prevent electromagnetic interference (EMI) and radio frequency interference (RFI) to ensure the quality and stability of signal transmission.

Protection level: IP67 or higher protection level, can resist dust intrusion, and can be immersed under a certain water pressure for a short time without damage.

M12 X coded circular connector applications

Industrial automation: M12 X coded connectors are widely used in PLC (programmable logic controller), servo drives, industrial machinery and robotics to provide stable and reliable data transmission solutions.

Industrial Ethernet: Because of its high bandwidth and strong anti-interference characteristics, it is particularly suitable for real-time communication needs in industrial Ethernet environment.

Video surveillance systems: In video surveillance and other applications that require large amounts of data transmission, X-coded connectors also play an important role in ensuring the smooth transmission of high-definition video streams.

M12 Circular connector anti-fake keying

Insert correctly to prevent reverse insertion to ensure the stability and reliability of the connector
