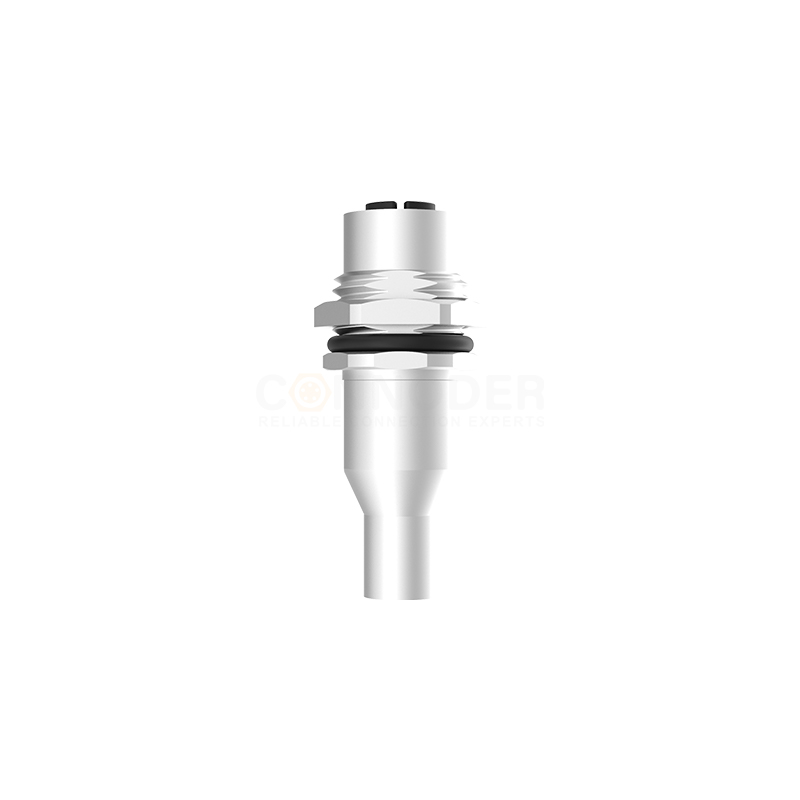

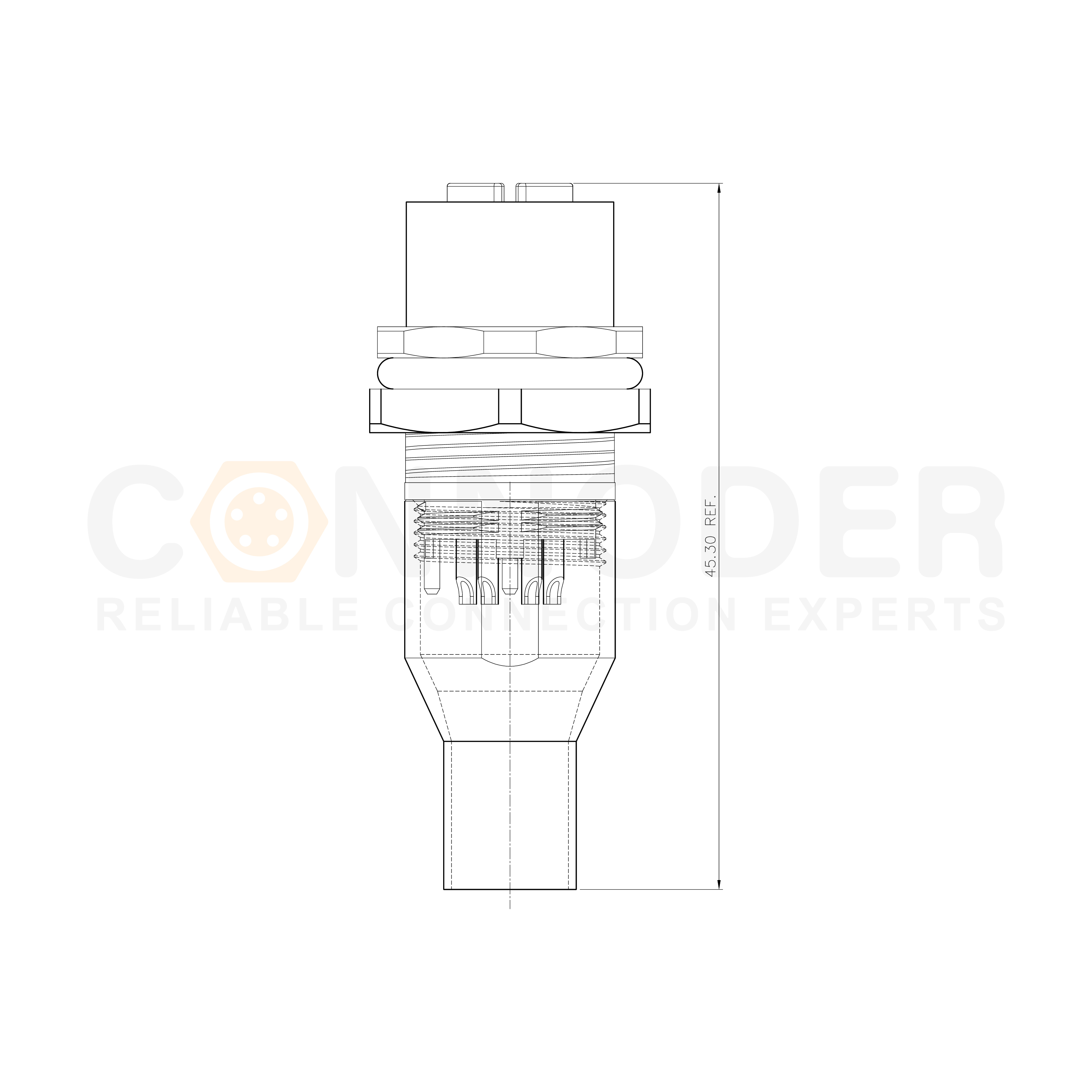

SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Solder Type M16*1.5 shielded
Product Specification
Core
8PIN
Plug Type
Female connector
Dummy-proof keying
X
Terminal connection type
Solder Type
Mounting type
Front-facing nut
Protection Rating
IP68
Wire Gauge/Size
26-24AWG/0.14-0.25mm²
Operating Temperature
-40°C Tо +80°C (Fixed Installation) -20°C Tо +80°C (flexible mounting)
Number of insertions and removals
> 500 insertions and removals
Rated voltage
50V
Rated impulse voltage
1500V
Rated current
0.5A
Contact resistance
5mΩ
Insulation resistance
100 MΩ
Shielding structure
shielded
Shell material
copper nickel-plated
Connector core
PA66 + GF
Pollution class
III
Flame retardant grade
UL94 V0
Industry Standard
IEC61076-2-111
