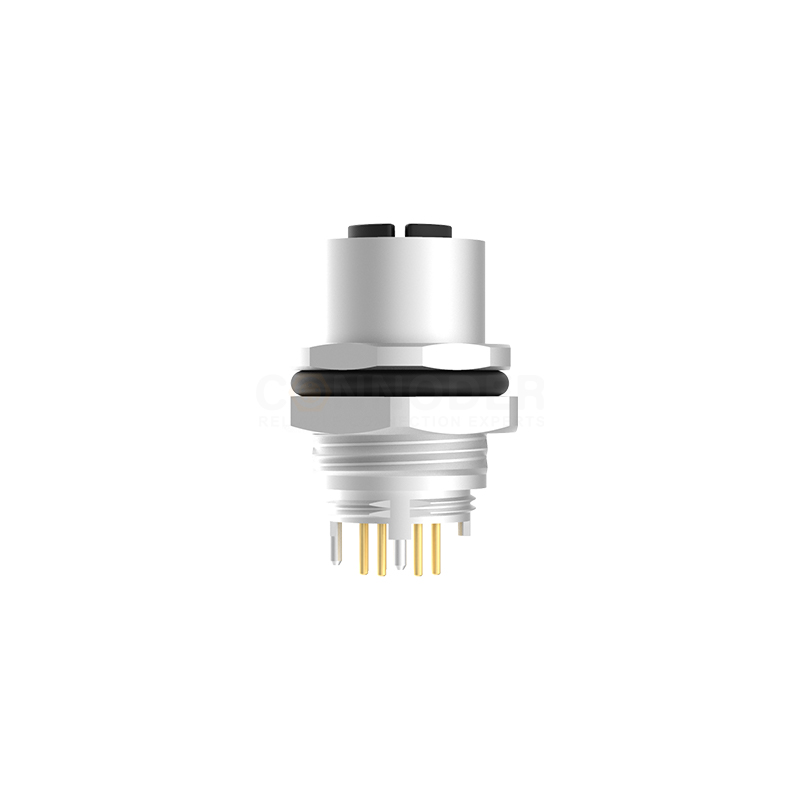

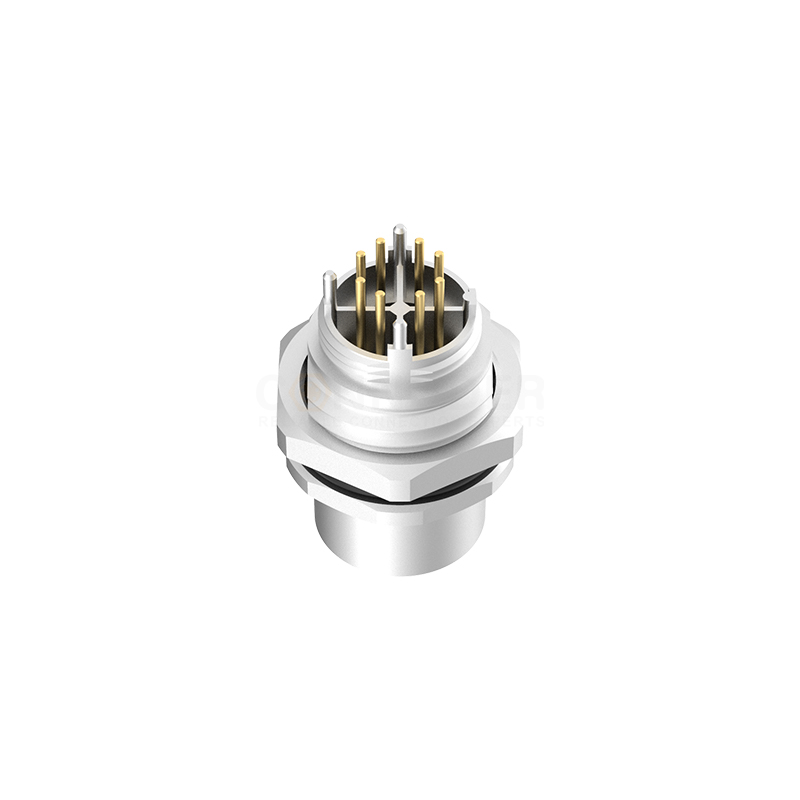

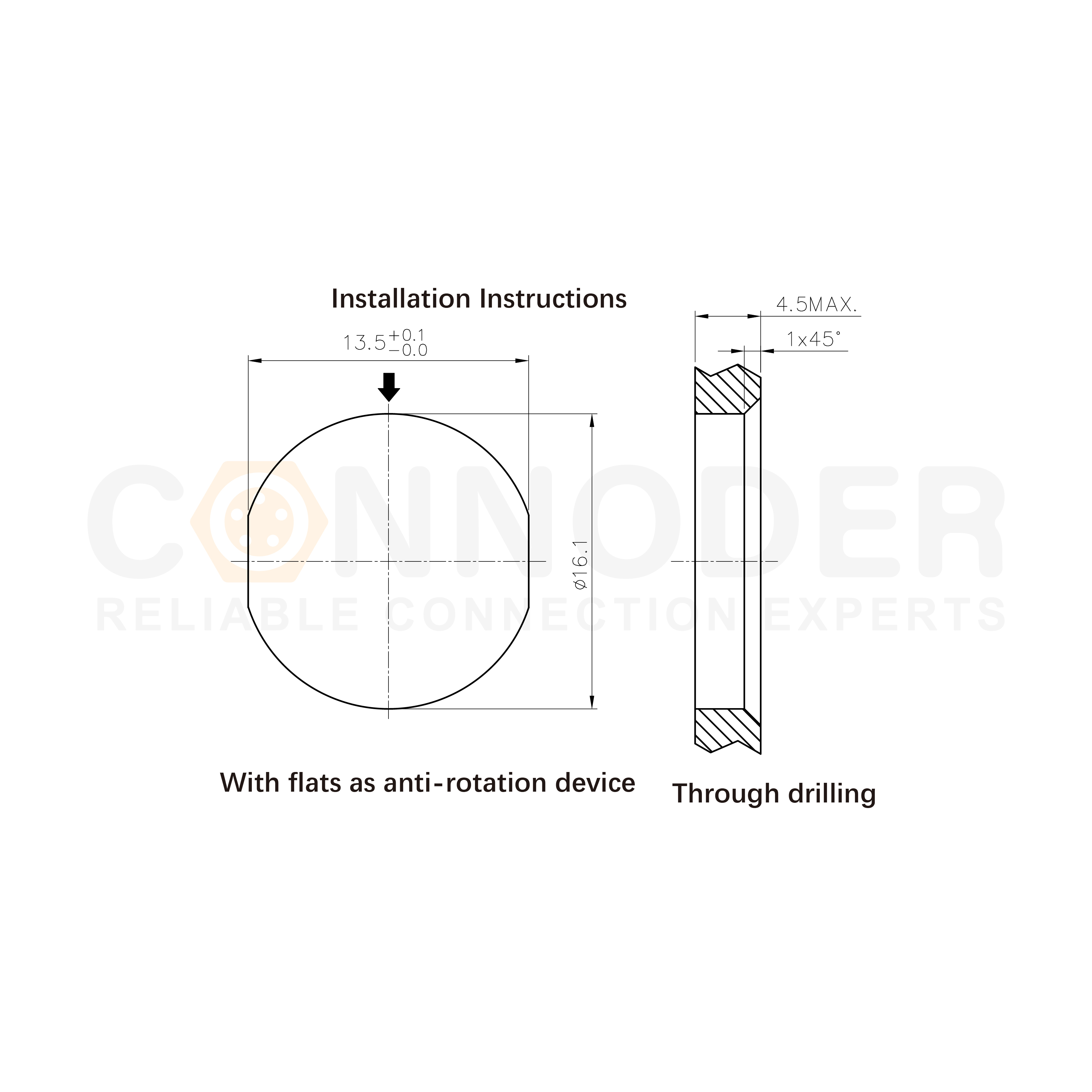

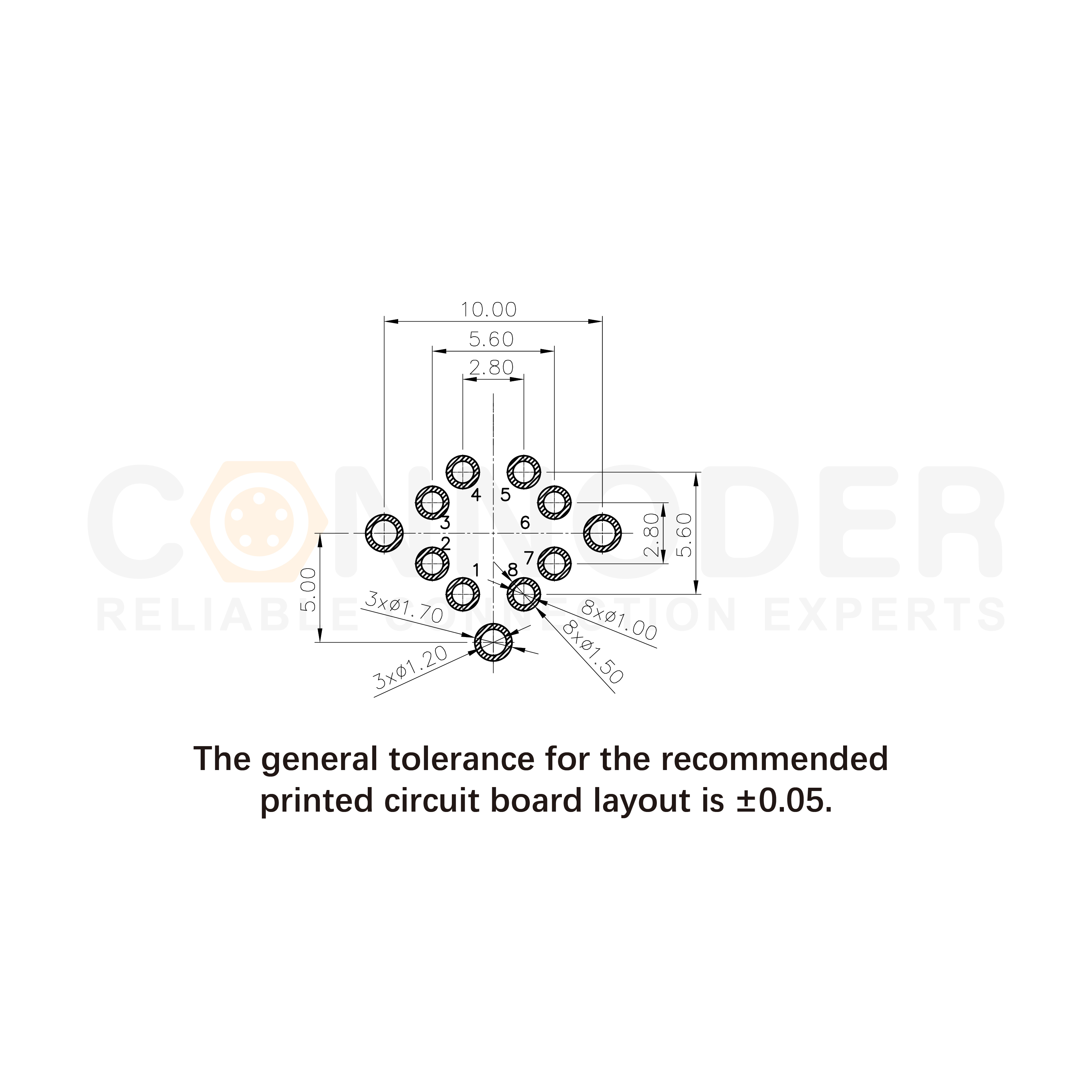

The M12 X coded Circular Connector is a connectivity solution specifically designed to meet the needs of high-speed data transmission, especially for industrial Ethernet and other data communication applications that require high bandwidth.
☑ Thread Locking Mechanism: Adopts a standard thread locking method to ensure the safety and reliability of the connection, maintaining a stable connection even in vibrating and impact-prone environments.
☑ Multiple Coding Options: In addition to X coding, other coding types such as A, B, and D are available. Each coding corresponds to distinct application scenarios and technical specifications. X coding is specifically designed for connectors supporting data rates of up to 10 Gbps.
☑ Robust and Durable Construction: The housing is made of high-quality metal materials, featuring excellent impact resistance and wear resistance. With an IP67 protection rating, it can effectively resist dust, moisture, and other harsh environmental factors.
☑ High-Speed Data Transmission: X-coded M12 connectors support data transfer rates of up to 10 Gbps, suitable for applications requiring Category 6A (CAT6A) cables. They meet the requirements of modern industrial networks.
☑ Shielding and Anti-Interference Capability: Equipped with an internal alloy shielding layer, it can effectively prevent Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring the quality and stability of signal transmission.
☑ Protection Rating: Features an IP67 or higher protection rating, capable of resisting dust ingress and withstanding short-term submersion under a certain water pressure without damage.
| Pins | 8X | 6Y | 8Y |
| Male |
|
|
|
| Pins | 8X | 6Y | 8Y |
| Female |
|
|
|
| Pins | M12 X 8 Pin Core Color | Pins | M12 Y 6 Pin Core ColorPins | Pins | M12 Y 8 Pin Core Color | ||||||
| 1 | WHOG |  |
D1+ | 1 | WHOG | |
D1+ | 1 | WHOG | |
D1+ |
| 2 | OG |  |
D1- | 2 | OG | |
D1- | 2 | OG | |
D1- |
| 3 | WHGN |  |
D2+ | 3 | WHGN | |
D2+ | 3 | WHGN | |
D2+ |
| 4 | GN |  |
D2- | 4 | GN | |
D2- | 4 | GN | |
D2- |
| 5 | WHBN |  |
D4+ | 5 | BU |  |
D4+ | 5 | BU | |
D4+ |
| 6 | BN |  |
D4- | 6 | WH |  |
D4- | 6 | WH | |
D4- |
| 7 | WHBU |  |
D3- | 7 | BN | |
D3- | ||||
| 8 | BU | |
D3+ | 8 | BK |  |
D3+ | ||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
