The M12 B coded circular connector is a circular connector specially designed for industrial environments, mainly used in Profibus and some other fieldbus protocols.
☑ Coding Keyway Structure:The B coding adopts a unique keyway positioning system. It achieves physical foolproof design to ensure incompatibility with other codings such as A, C, D, and X, effectively preventing misplugging risks when connecting fieldbus devices.

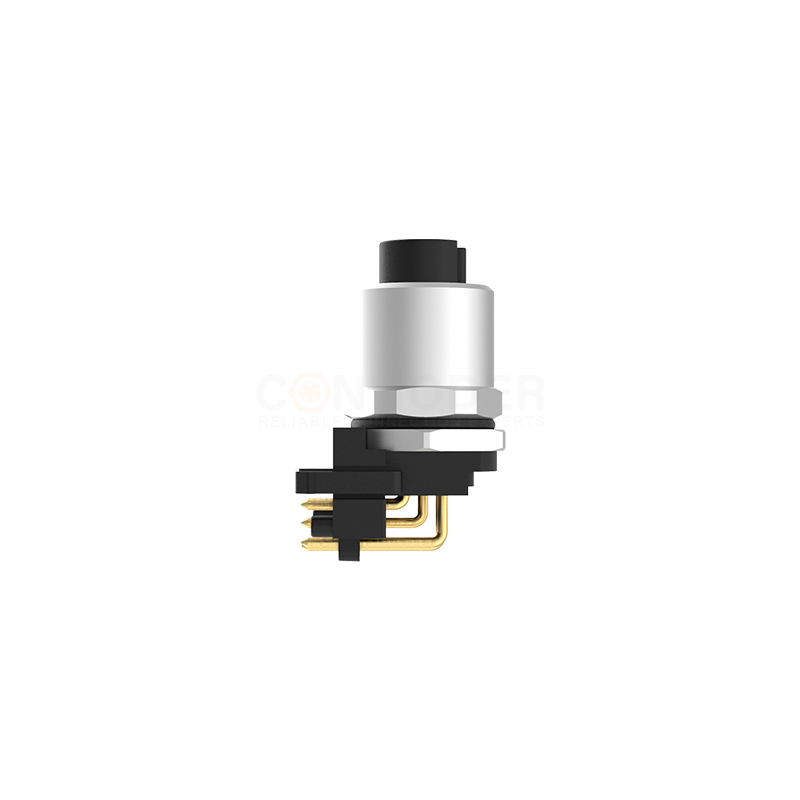

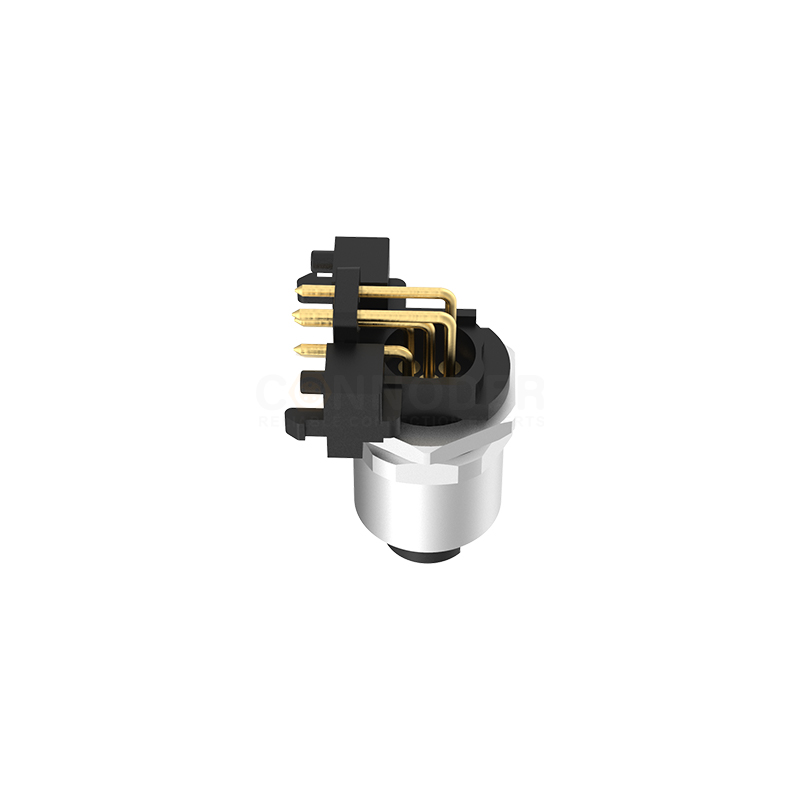

☑ Plug-in Board Type;It is directly soldered on the printed circuit board (PCB), which makes the electrical connection between the connector and the PCB more stable. Meanwhile, it also simplifies the installation and maintenance processes.
☑ Two-stage Sealing Design：The metal thread provides mechanical locking, and the silicone rubber sealing ring achieves IP67/68 protection level. It can withstand an ambient temperature range of -40℃ to +85℃ and a vibration acceleration of 10G.
☑ Signal Transmission Characteristics：It supports fieldbus protocols including PROFIBUS DP/PA and INTERBUS.
☑ Voltage and Current：It supports a rated voltage of 250V and a maximum carrying current of up to 4A, suitable for the needs of transmitting low-to-medium power signals.
☑ Durability;The high-quality brass or phosphor bronze terminals undergo solid gold plating treatment, featuring strong oxidation resistance and ensuring a plug-in life of more than 500 times.
| Pins | 3B | 4B | 5B |
| Male |
|
 |
 |
| Pins | 3B | 4B | 5B |
| Female |
|
 |
 |
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | Pins | 5 Pin Core Color | |||
| 1 | BN |  |
1 | BN | |
1 | BN | |
| 2 | - |  |
2 | WH |  |
2 | WH | |
| 3 | BU |  |
3 | BU | |
3 | BU | |
| 4 | BK |  |
4 | BK | |
4 | BK | |
| 5 | GY |  |
||||||
| Pins | 2A | 3A | 4A | 4D | 5A |
| Male |  |
 |
 |
 |
 |
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
|
| Pins | 2A | 3A | 4A | 4D | 5A |
| Female |
|
|
|
 |
|
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
