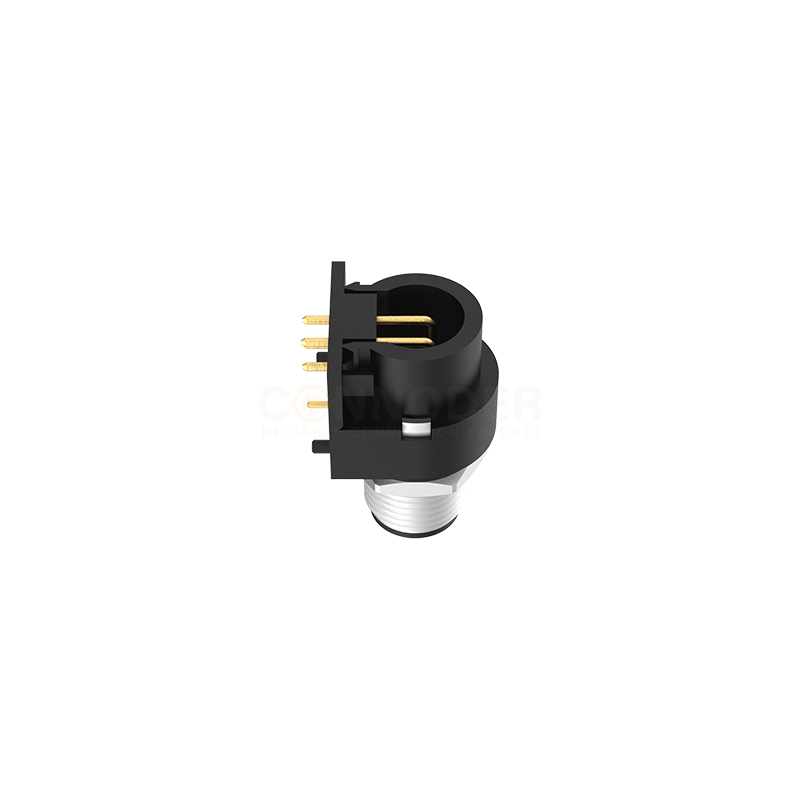

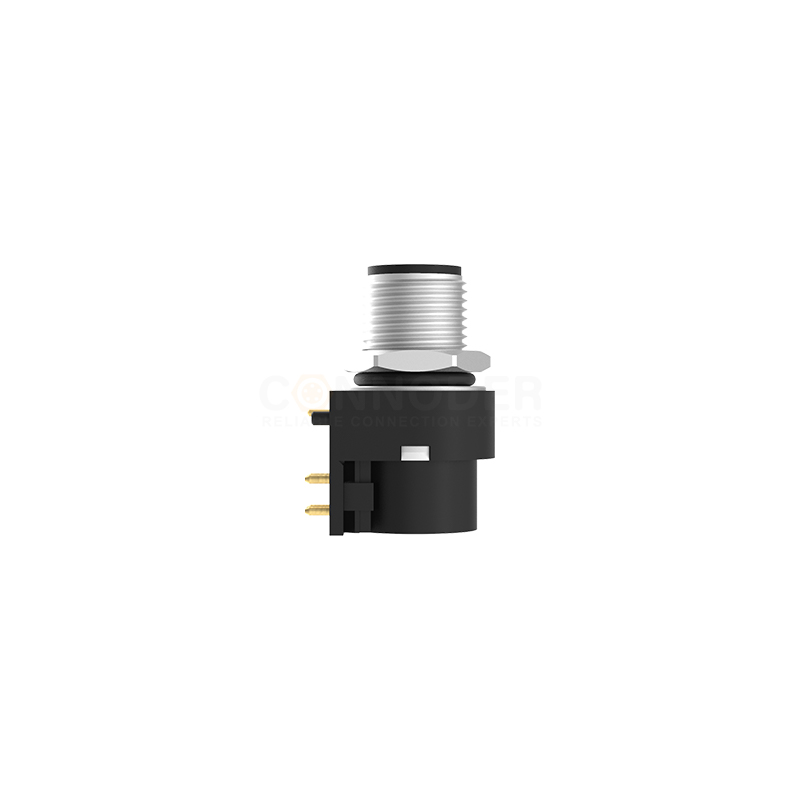

M12B coded panel flange seat curved pin connector is a connector designed specifically for the field of factory automation, with the design standard of IEC 61076-2-101. This type of connector is mainly used to connect sensors and actuators.
☑ M12 Circular Connector: Gold-plated contacts enhance signal transmission and reduce impedance.
☑ M12 Circular Connector: IP68 protection rating prevents dust penetration and short-term immersion; thickened pins ensure an ultra-long service life.
☑ M12 Circular Connector: Threaded wiring and threaded connection cables for safety and reliability; pure copper contacts enable excellent electrical conductivity.
☑ M12 Circular Connector: Environmentally friendly wires, made of industrial high-flexibility cables, featuring bending resistance and wear resistance.
☑ M12 Circular Connector: Anti-miskeying design ensures correct insertion, prevents reverse insertion, and guarantees the stability and reliability of the connector.
| Pins | 3B | 4B | 5B |
| Male |
|
 |
 |
| Pins | 3B | 4B | 5B |
| Female |
|
 |
 |
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | Pins | 5 Pin Core Color | |||
| 1 | BN |  |
1 | BN | |
1 | BN | |
| 2 | - |  |
2 | WH |  |
2 | WH | |
| 3 | BU |  |
3 | BU | |
3 | BU | |
| 4 | BK |  |
4 | BK | |
4 | BK | |
| 5 | GY |  |
||||||
| Pins | 2A | 3A | 4A | 4D | 5A |
| Male |  |
 |
 |
 |
 |
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
|
| Pins | 2A | 3A | 4A | 4D | 5A |
| Female |
|
|
|
 |
|
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
If you would like to know more about our products and services, please send us a message. Our experts will contact you as soon as possible.
