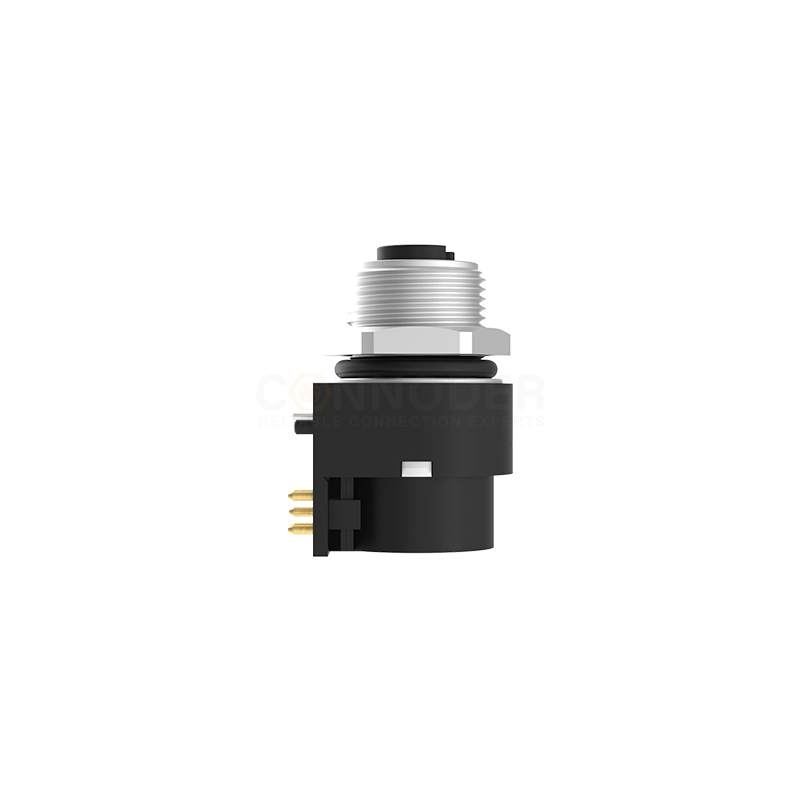

M12B coded panel flange seat curved pin connector is a connector designed specifically for the field of factory automation, with the design standard of IEC 61076-2-101. This type of connector is mainly used to connect sensors and actuators.
☑ Coding Keyway Structure: Coding B adopts a unique keyway positioning system. It achieves physical error-proofing design to ensure incompatibility with other codings such as A, C, D, and X, effectively preventing misplugging risks when connecting fieldbus devices.
☑ Rear Panel Mounting: Installation is performed from the back of the device panel, and it is fixed on the panel via threads.
☑ Board-Mounted Type: Directly soldered onto the Printed Circuit Board (PCB), this type ensures a more stable electrical connection between the connector and the PCB. It also simplifies the installation and maintenance processes.
☑ Dual-Stage Sealing Design: Metal threads provide mechanical locking, and silicone rubber sealing rings achieve IP67/IP68 protection. It can withstand an ambient temperature range of -40℃ to +85℃ and a vibration acceleration of 10G.
☑ Signal Transmission Characteristics: Supports fieldbus protocols such as PROFIBUS DP/PA and INTERBUS.
☑ Voltage and Current: Supports a rated voltage of 250V and a maximum carrying current of up to 4A, suitable for the transmission of low-to-medium power signals.
☑ Durability: High-quality brass or phosphor bronze terminals undergo solid gold plating, featuring strong oxidation resistance and ensuring a mating cycle life of over 500 times.
| Pins | 3B | 4B | 5B |
| Male |
|
 |
 |
| Pins | 3B | 4B | 5B |
| Female |
|
 |
 |
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | Pins | 5 Pin Core Color | |||
| 1 | BN |  |
1 | BN | |
1 | BN | |
| 2 | - |  |
2 | WH |  |
2 | WH | |
| 3 | BU |  |
3 | BU | |
3 | BU | |
| 4 | BK |  |
4 | BK | |
4 | BK | |
| 5 | GY |  |
||||||
| Pins | 2A | 3A | 4A | 4D | 5A |
| Male |  |
 |
 |
 |
 |
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
|
| Pins | 2A | 3A | 4A | 4D | 5A |
| Female |
|
|
|
 |
|
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
