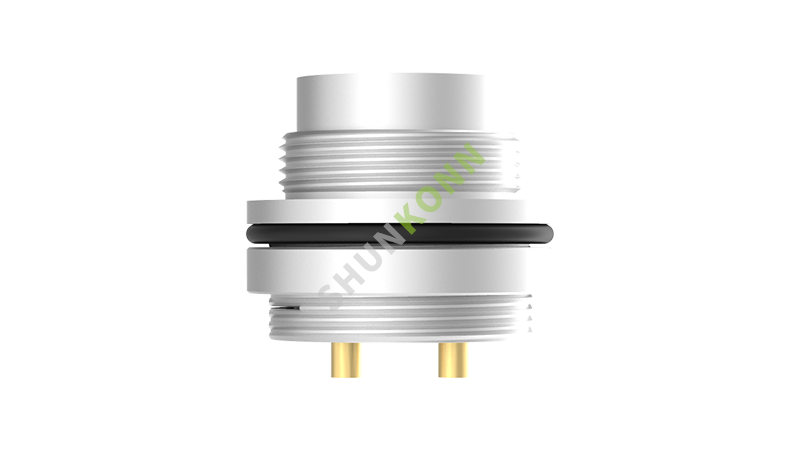

SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75

MC16NM-02F2LSLNS401

SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75

‌M16 connector ‌ is a commonly used electronic connector, usually used in data transmission, communication, measurement, control and other fields. M16 connectors are available in a variety of specifications, with common numbers of contact points including 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 19 and 24 contact points ‌.
Get a Quotation
Sample Request
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
SKM16 Series M16 Connectors Board Front Mount 2PIN Male Solder Type M18*0.75
产品详细信息

Product Introduction

M16 Connectors Brass And Gold Pins

High and low temperature esistance, No oxidation, Corrosion and rust and other undesirable phenomena

M16 Connectors Brass And Gold Pins
M16 Connectors PA66 Rubber core

M16 Connectors PA66 Rubber core

Refuse short circuit, metal interface protection cable safety, Prevent pinhole contact, Aging oxidation

M16 Connectors Are Applied

Transportation，Renewable Energy，Audio Equipment，Sensors，Pipe Connection，Small Electrical Equipment

M16 Connectors Are Applied
M16 Connectors Pressure And Knock Resistant

M16 Connectors Pressure And Knock Resistant

Thickened new material outer cover, IP68 waterproof grade, Stable output current/signal, Not easy to short circuit

M16 Connectors Dummy-proof Keying

Insert correctly to prevent reverse insertion，Ensure the stability ，Reliability of the connector

M16 Connectors Dummy-proof Keying

Technical Data
Cores

2PIN
Plug Type

Male connector
Dummy-proof keying

General-code
Terminal connection type

Solder type
Mounting type

rear-facing nut
Protection Rating

IP68
Wire Gauge/Size

20AWG/0.75mm²
Operating Temperature

-40°C Tо +80°C (Fixed Installation)

-20°C Tо +80°C (flexible mounting)
Number of insertions and removals

> 500 insertions and removals
Rated voltage

250V
Rated impulse voltage

1500V
Rated current

7A
Contact resistance

5mΩ
Insulation resistance

100 MΩ
Shielding structure

non-shielded
Shell material

copper nickel-plated
Connector core

PA66 + GF
Pollution class

III
Flame retardant grade

UL94 V0
Industry Standard

IEC61076-2-111

Electrical parameter

Product model pins Rated current Rated voltage Wire Gauge/Size
A/C D/C AWG mm²
MC16NM-02F2LSLNS401 2 7A 250V 32V 20 0.75
MC16NF-03F2LSLNS401 3 7A 250V 32V 20 0.75
MC16NF-04F2LSLNS401 4 6A 250V 32V 20 0.75
MC16NF-05F2LSLNS401 5/5A 6A 60V 32V 20 0.75
MC16NF-06F2LSLNS401 6 5A 250V 32V 20 0.75
MC16NF-07F2LSLNS401 7/7A 5A 125V 32V 20 0.75
MC16NF-08F2LSLNS401 8 5A 60V 32V 20 0.75
MC16NF-12F2LSLNS401 12 3A 60V 32V 24 0.25
MC16NF-14F2LSLNS401 14/14A 3A 30V 32V 24 0.25
MC16NF-16F2LSLNS401 16 3A 30V 32V 24 0.25
MC16NF-19F2LSLNS401 19 3A 30V 32V 24 0.25
MC16NF-24F2LSLNS401 24 1A 30V 32V 26 0.14



Coding Parameter

Pins 2 3 4 5 Pins 5A
Male

Male

6 7 8 12 7A

14 16 19 24 14A

Pins 2 3 4 5 Pins 5A
Female

Female

6 7 8 12 7A

14 16 19 24 14A
