K-type coding, 5PIN (4+PE)
Rated voltage: 630V AC,
Rated current: 12A
Gold-plated solder terminals
PVC, PUR cable, custom specifications available

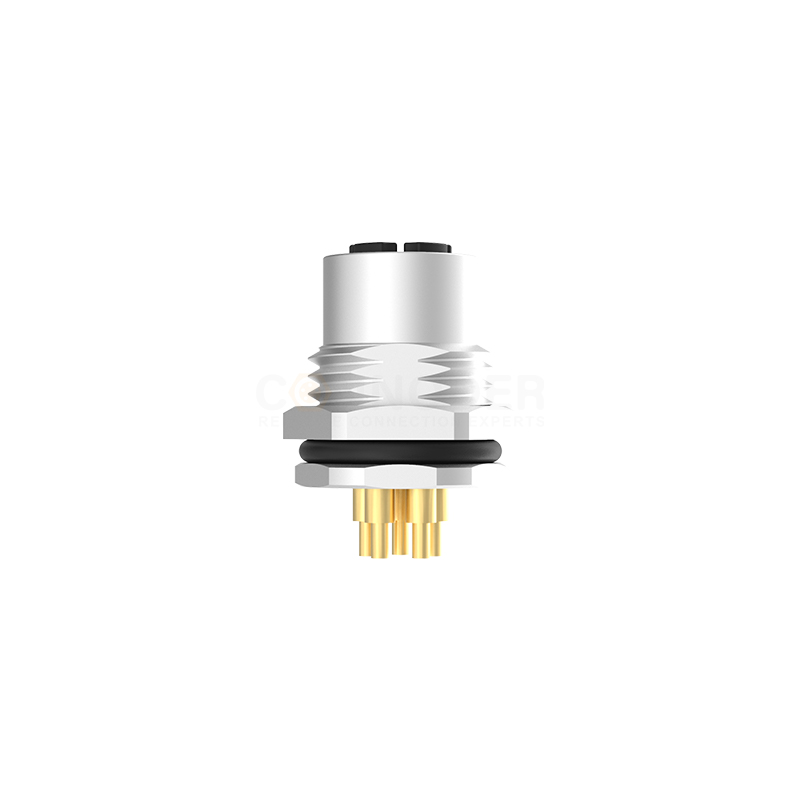

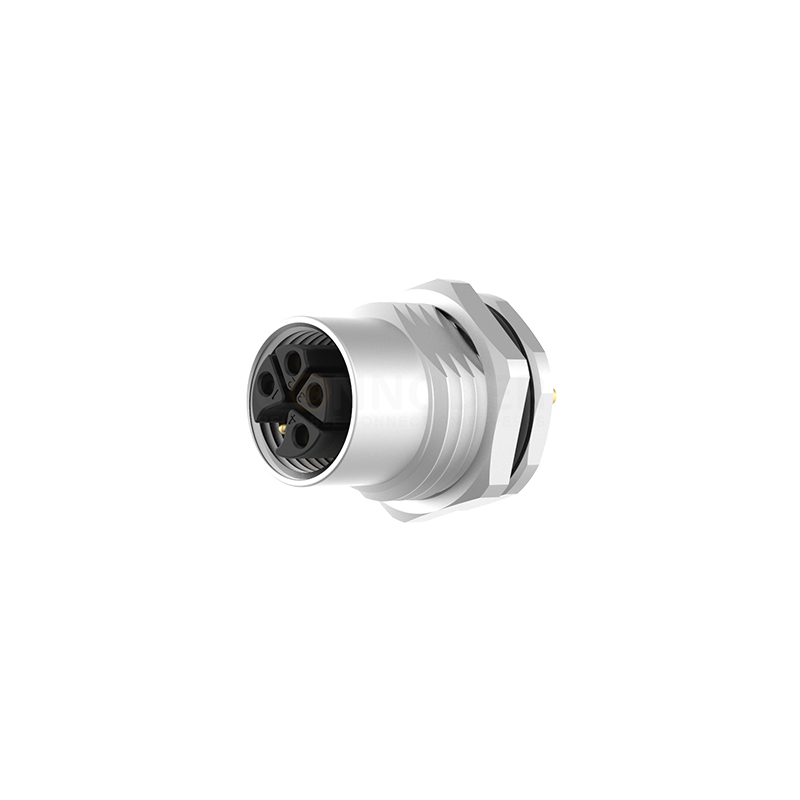

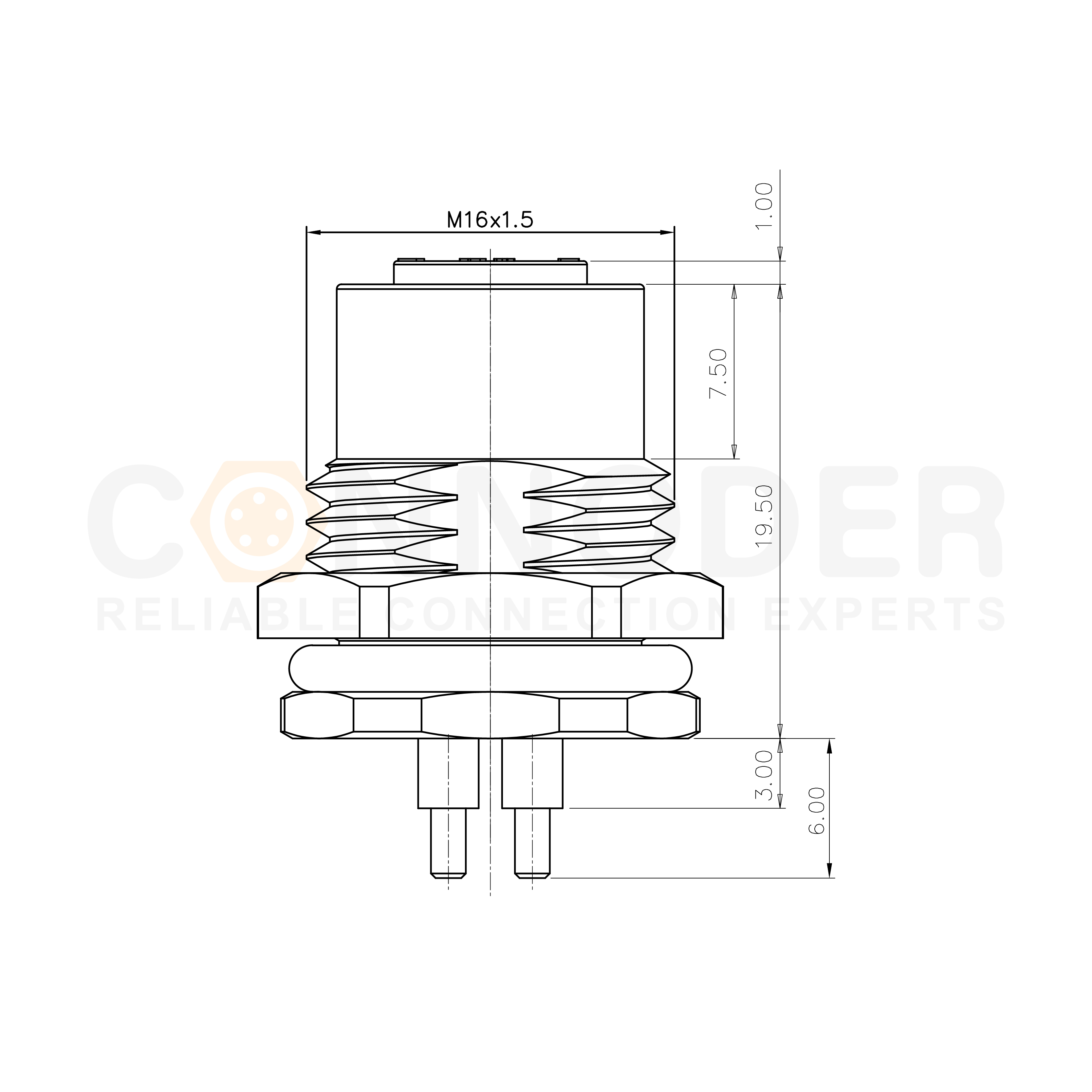

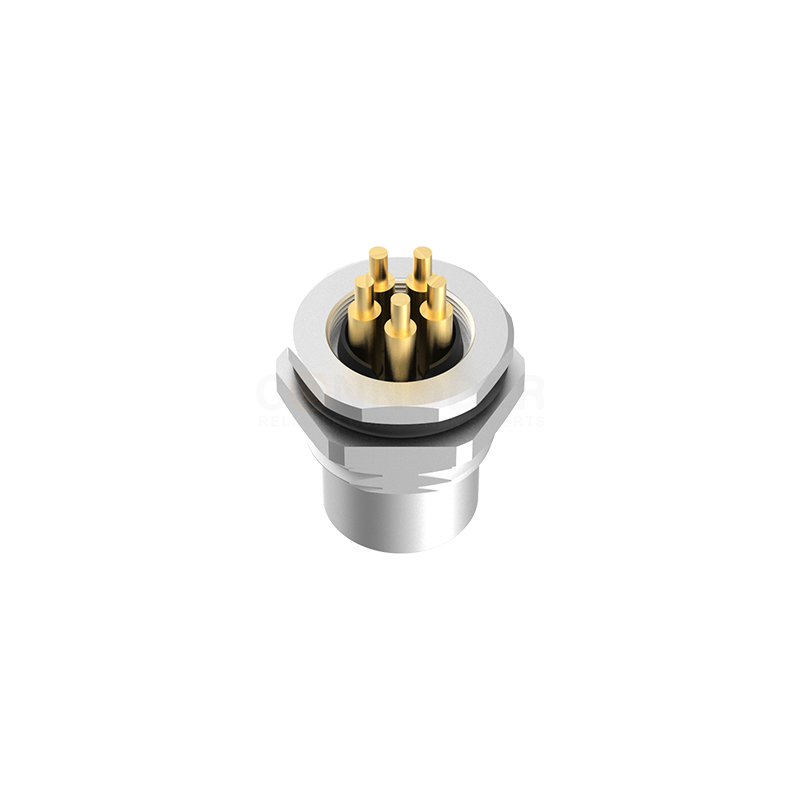

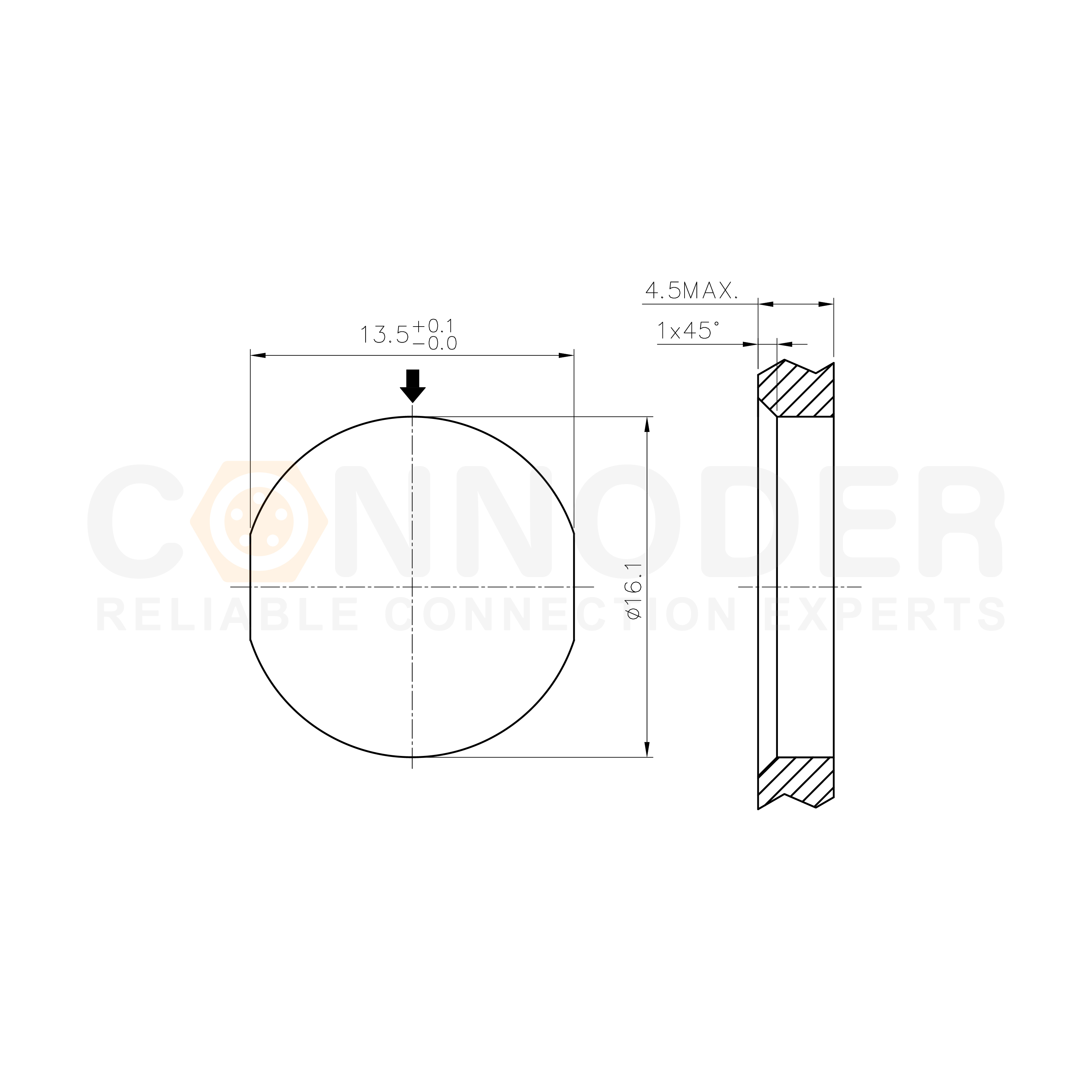

Panel flange socket: pre-connected with 14AWG electronic wire or PCB
Protection level IP67/IP68
☑ Suitable for AC power applications, typically featuring a 5-pin configuration that includes 4 contacts for signal/power transmission and one protective earth (PE) contact
☑ Protection Rating: With an IP67 protection level, it can operate in harsh environments. It is dustproof and waterproof, making it suitable for outdoor or humid settings.
☑ Threaded Locking Mechanism: Maintains a secure connection even under vibration and impact conditions, enhancing operational reliability.
☑ High Voltage and Current-Carrying Capacity: M12 K-coded connectors can support a maximum voltage of 800V AC and a current of 16A, making them suitable for application scenarios requiring relatively high-power transmission.
☑ Low Contact Resistance: It has low and stable contact resistance to ensure the quality of signal transmission.
☑ Operating Temperature Range: Generally ranging from -25°C to +80°C; some products can work normally in even lower or higher temperature ranges.
☑ Durability: High-quality brass or phosphor bronze terminals undergo solid gold plating, which provides strong oxidation resistance and ensures a mating cycle life of more than 500 times.
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Male |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
|||
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Female |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
| 2+PE Pin Core Color S Code | 芯数 | 3+PE Pin Core Color S Code | ||
| BK1 |  |
1 | BK1 | |
| BK2 | |
2 | BK2 | |
| GNYE |  |
3 | BK3 | |
| 4 | GNYE | |
||
| - | ||||
| 4+PE Pin Core Color K Code | 芯数 | 4 Pin Core Color T Code | ||
| BK1 | |
1 | BN |  |
| BK2 | |
2 | WH |  |
| BK3 | |
3 | BU |  |
| BK4 | |
4 | BK | |
| GNYE | |
|||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
| Pins | 2A | 3A | 4A | 4D | 5A |
| Male |  |
 |
 |
 |
 |
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
|
| Pins | 2A | 3A | 4A | 4D | 5A |
| Female |
|
|
|
 |
|
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
