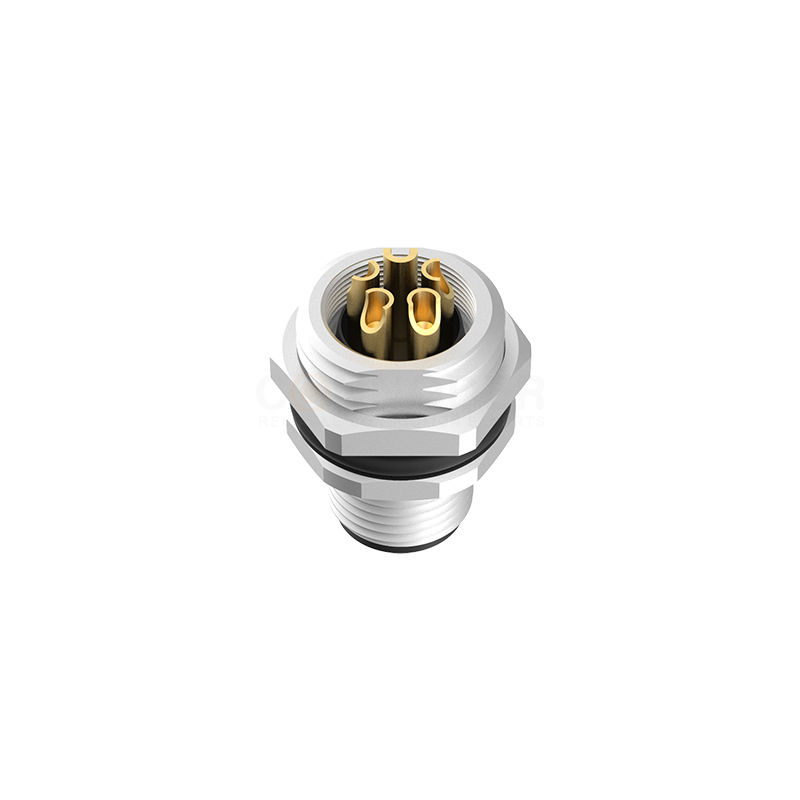

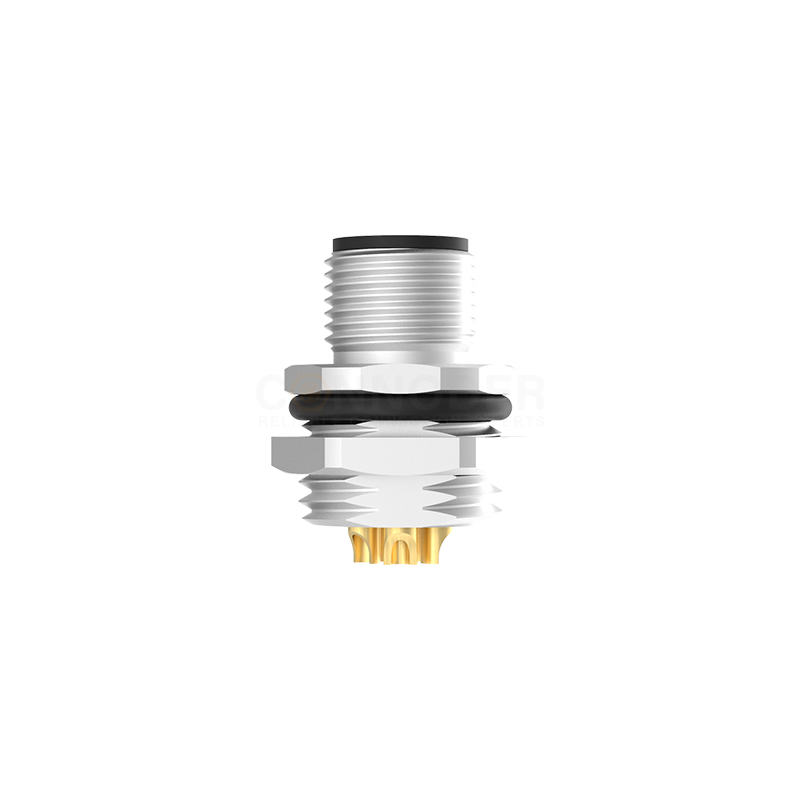

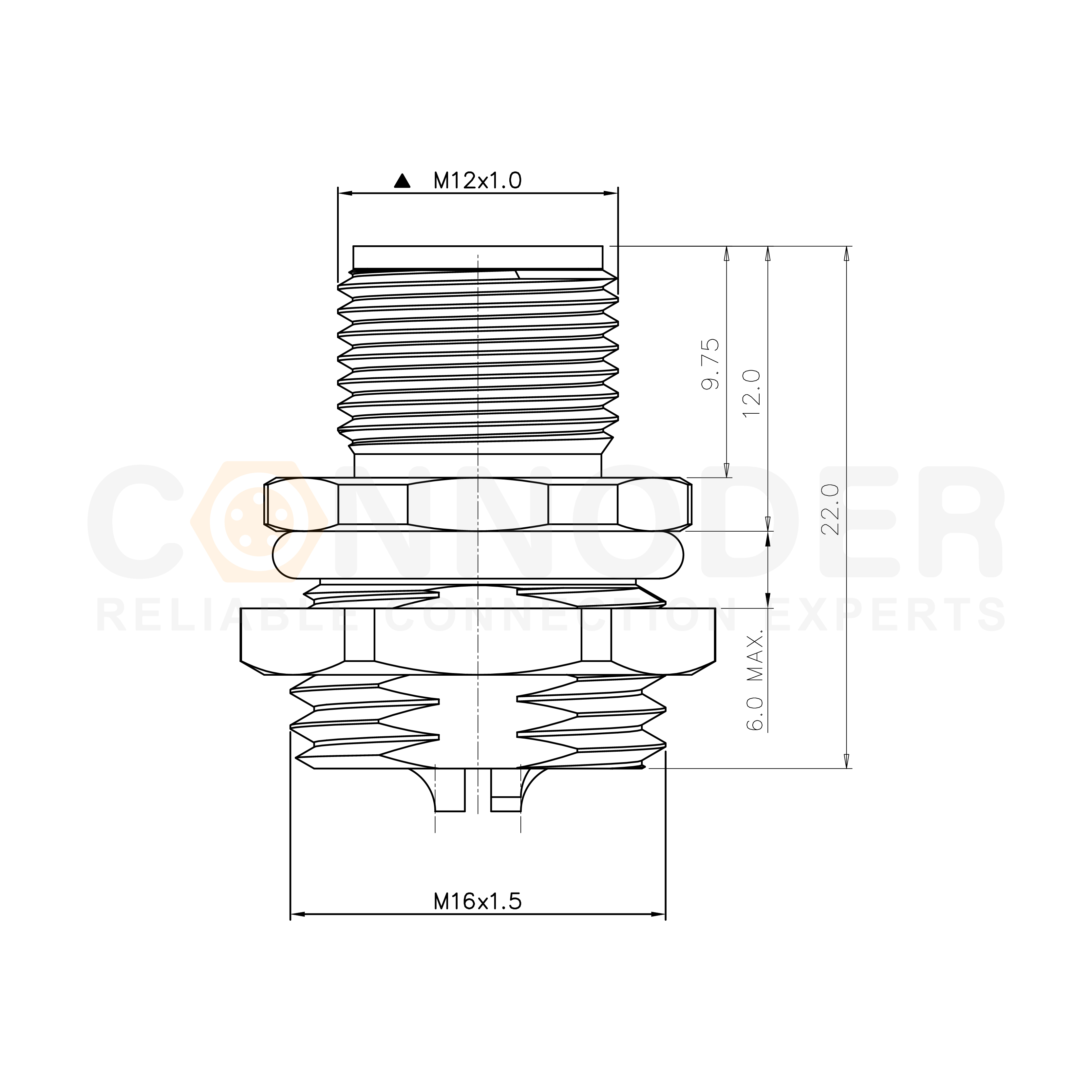

The M12K code connector is a connector specifically designed for alternating current (AC) transmission.
☑ Suitable for AC power applications, typically adopting a 5-pin configuration, including 4 contacts for signal/power transmission and one protective earth (PE) contact.

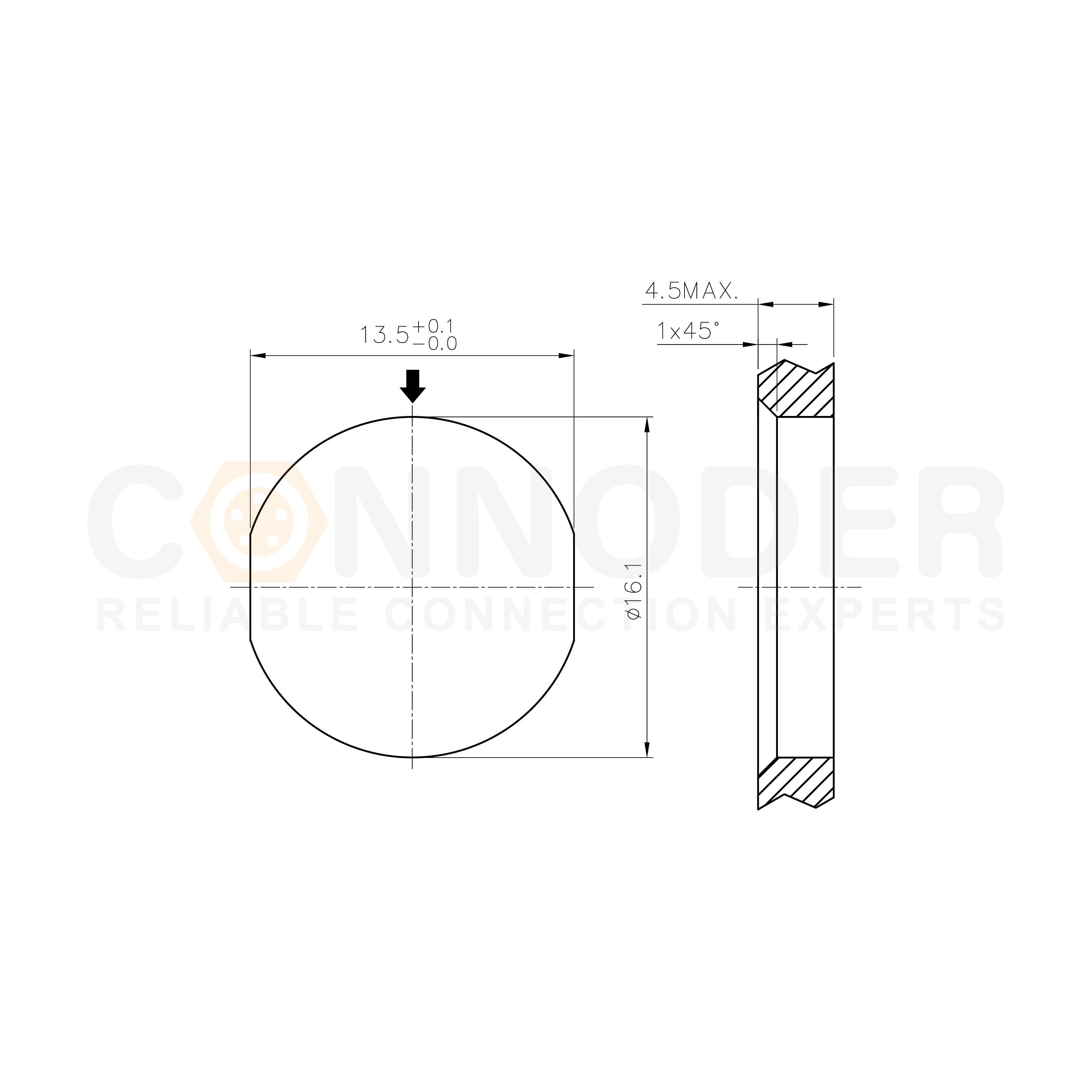

☑ Front Panel Mounting: Allows the connector to be installed directly on the front of the panel, making installation and maintenance more convenient. Additionally, it provides excellent electromagnetic shielding, which helps reduce external interference.
☑ Protection Rating: IP67 protection level, enabling operation in harsh environments (such as dustproof and waterproof performance), suitable for outdoor or humid environments.
☑ Threaded Locking Mechanism: Maintains a secure connection even under vibration and impact conditions, enhancing operational reliability.
☑ High Voltage and Current Carrying Capacity: M12 K-coded connectors can support a maximum voltage of 800V AC and a current of 16A, suitable for application scenarios requiring relatively high-power transmission.
☑ Low Contact Resistance: Features low and stable contact resistance to ensure the quality of signal transmission.
☑ Operating Temperature Range: Generally ranges from -25°C to +80°C; some products can operate normally in even lower or higher temperature ranges.
☑ Durability: High-quality brass or phosphor bronze terminals undergo solid gold plating, which offers strong oxidation resistance and ensures a mating cycle life of more than 500 times.
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Male |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
|||
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Female |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
| 2+PE Pin Core Color S Code | 芯数 | 3+PE Pin Core Color S Code | ||
| BK1 |  |
1 | BK1 | |
| BK2 | |
2 | BK2 | |
| GNYE |  |
3 | BK3 | |
| 4 | GNYE | |
||
| - | ||||
| 4+PE Pin Core Color K Code | 芯数 | 4 Pin Core Color T Code | ||
| BK1 | |
1 | BN |  |
| BK2 | |
2 | WH |  |
| BK3 | |
3 | BU |  |
| BK4 | |
4 | BK | |
| GNYE | |
|||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
