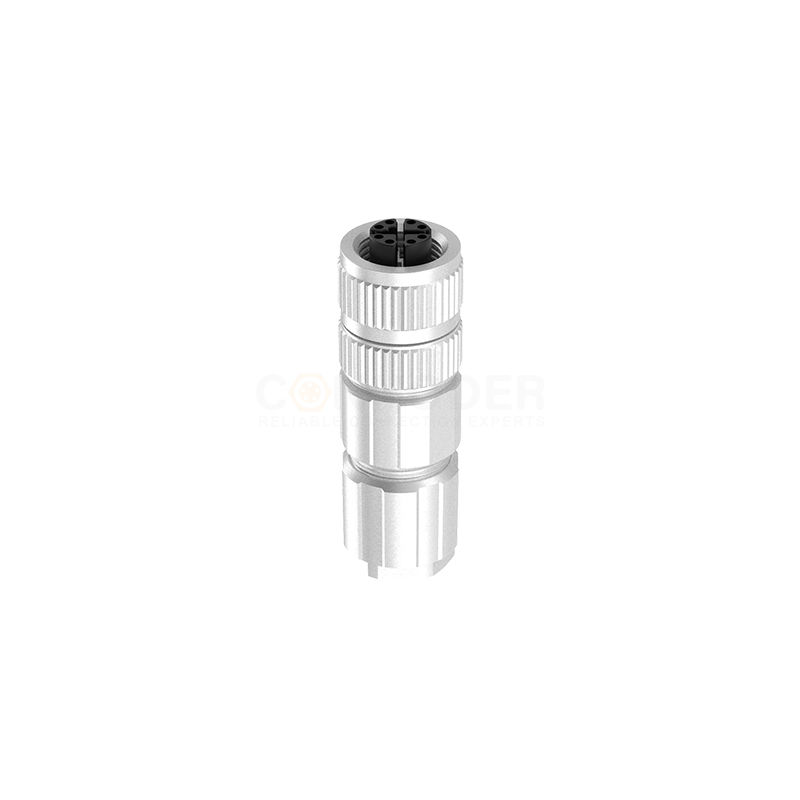

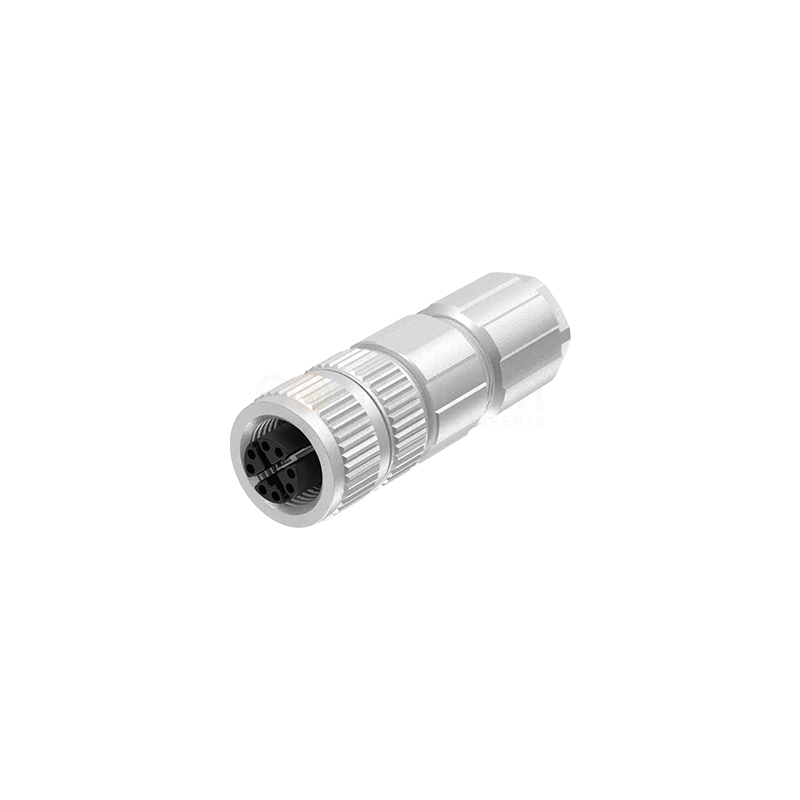

The M12 X coded Circular Connector is a connectivity solution specifically designed to meet the needs of high-speed data transmission, especially for industrial Ethernet and other data communication applications that require high bandwidth.
☑ High-Speed Data Transmission Capability: X-coded connectors support data transfer rates of up to 10 Gbps, making them ideal for Cat6A (Category 6A) and higher-grade network cabling.
☑ Protection Rating: IP67-rated protection effectively prevents dust ingress and maintains internal dryness under certain water pressure, suitable for use in harsh environments.
☑ Shielding Performance: Equipped with an alloy shielding layer, it provides full-range shielding against Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring stable and reliable data transmission.
☑ Standardized Interface: Compliant with the IEC 61076-2-109 standard, guaranteeing interoperability and compatibility between products from different manufacturers.
☑ 8-Core Design: To meet the requirements of high-speed Ethernet, X-coded connectors are typically equipped with 8 contacts arranged in pairs to support differential signal transmission.
☑ Low Latency and High Stability: Thanks to advanced shielding technology and high-quality materials, X-coded connectors can maintain low latency and high signal integrity during long-distance transmission.
☑ Wide Operating Temperature Range: The typical operating temperature range is -40℃ to +85℃, adapting to applications in various extreme environments.
| Pins | 8X | 6Y | 8Y |
| Male |
|
|
|
| Pins | 8X | 6Y | 8Y |
| Female |
|
|
|
| Pins | M12 X 8 Pin Core Color | Pins | M12 Y 6 Pin Core ColorPins | Pins | M12 Y 8 Pin Core Color | ||||||
| 1 | WHOG |  |
D1+ | 1 | WHOG | |
D1+ | 1 | WHOG | |
D1+ |
| 2 | OG |  |
D1- | 2 | OG | |
D1- | 2 | OG | |
D1- |
| 3 | WHGN |  |
D2+ | 3 | WHGN | |
D2+ | 3 | WHGN | |
D2+ |
| 4 | GN |  |
D2- | 4 | GN | |
D2- | 4 | GN | |
D2- |
| 5 | WHBN |  |
D4+ | 5 | BU |  |
D4+ | 5 | BU | |
D4+ |
| 6 | BN |  |
D4- | 6 | WH |  |
D4- | 6 | WH | |
D4- |
| 7 | WHBU |  |
D3- | 7 | BN | |
D3- | ||||
| 8 | BU | |
D3+ | 8 | BK |  |
D3+ | ||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
If you would like to know more about our products and services, please send us a message. Our experts will contact you as soon as possible.
