The M12 X coded Circular Connector is a connectivity solution specifically designed to meet the needs of high-speed data transmission, especially for industrial Ethernet and other data communication applications that require high bandwidth.
☑ High-Performance X Coding: Supports data transfer rates of up to 10 Gbps, ensuring ultra-fast speed and stability in industrial Ethernet and other high-bandwidth data communication applications.
☑ Robust and Durable Construction: The housing is made of high-quality metal materials, featuring excellent impact resistance and wear resistance. With an IP67 protection rating, it can effectively resist dust, moisture, and other harsh environmental factors.

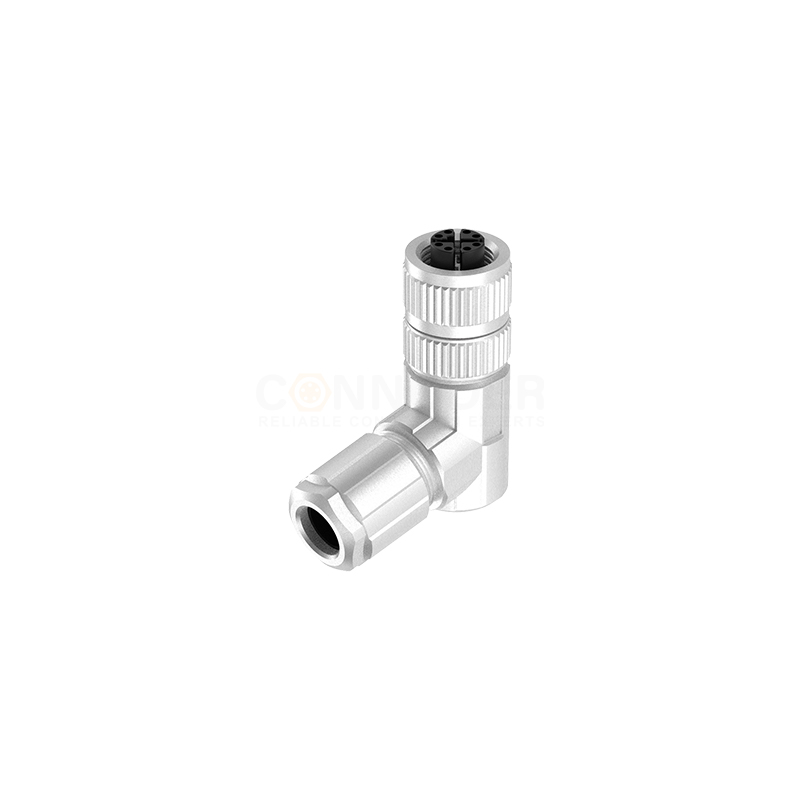

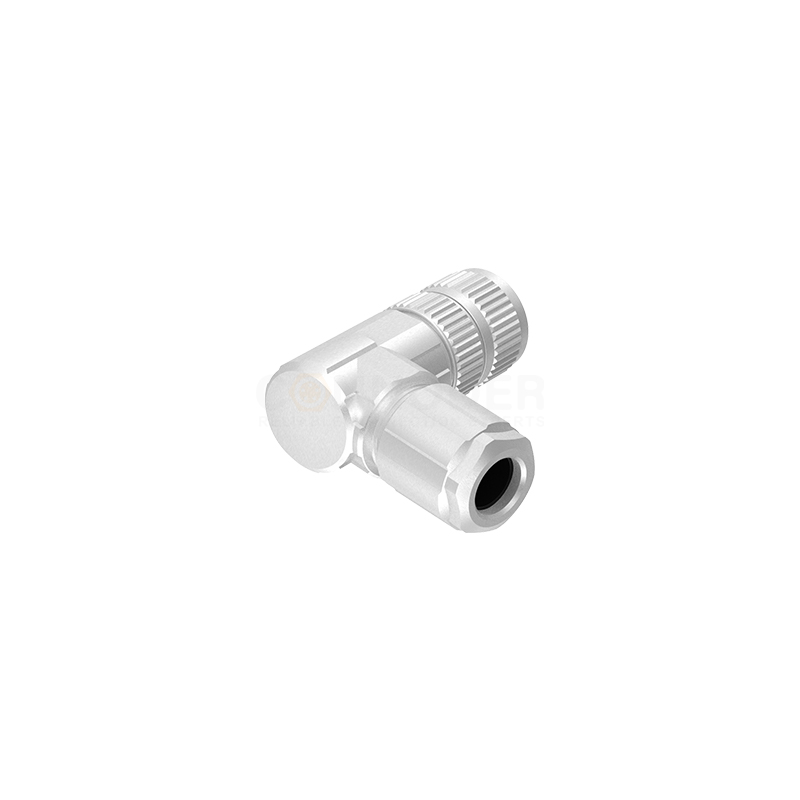

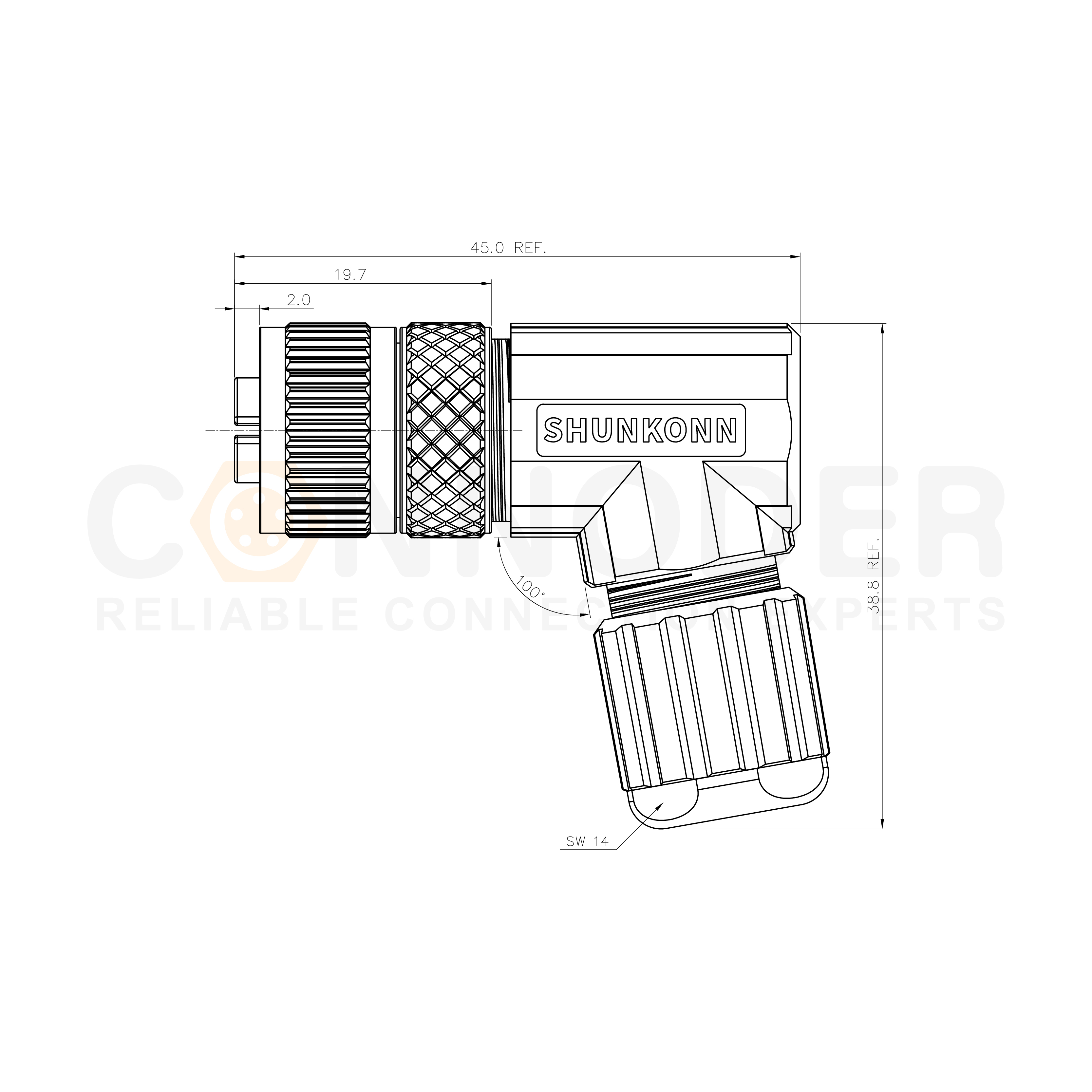

☑ Angled Design: Particularly suitable for applications with limited space or special wiring requirements. It allows cables to be routed from the side, optimizing the internal layout of equipment and enhancing installation flexibility.
☑ High-Speed Transmission Capability: Equipped with an 8-pin configuration, it supports Cat6A and higher network cabling, and is compatible with high-speed industrial Ethernet protocols such as Profinet and EtherCAT.
☑ Excellent Shielding Effect: Built-in shielding layer effectively reduces Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring the purity and stability of data transmission.
☑ Temperature Adaptability: Operates within a temperature range of -40℃ to +85℃, enabling stable performance under extreme conditions.
☑ Low-Resistance Contact Points: Ensure minimal energy loss, improving the overall efficiency and reliability of the system.
| Pins | 8X | 6Y | 8Y |
| Male |
|
|
|
| Pins | 8X | 6Y | 8Y |
| Female |
|
|
|
| Pins | M12 X 8 Pin Core Color | Pins | M12 Y 6 Pin Core ColorPins | Pins | M12 Y 8 Pin Core Color | ||||||
| 1 | WHOG |  |
D1+ | 1 | WHOG | |
D1+ | 1 | WHOG | |
D1+ |
| 2 | OG |  |
D1- | 2 | OG | |
D1- | 2 | OG | |
D1- |
| 3 | WHGN |  |
D2+ | 3 | WHGN | |
D2+ | 3 | WHGN | |
D2+ |
| 4 | GN |  |
D2- | 4 | GN | |
D2- | 4 | GN | |
D2- |
| 5 | WHBN |  |
D4+ | 5 | BU |  |
D4+ | 5 | BU | |
D4+ |
| 6 | BN |  |
D4- | 6 | WH |  |
D4- | 6 | WH | |
D4- |
| 7 | WHBU |  |
D3- | 7 | BN | |
D3- | ||||
| 8 | BU | |
D3+ | 8 | BK |  |
D3+ | ||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
