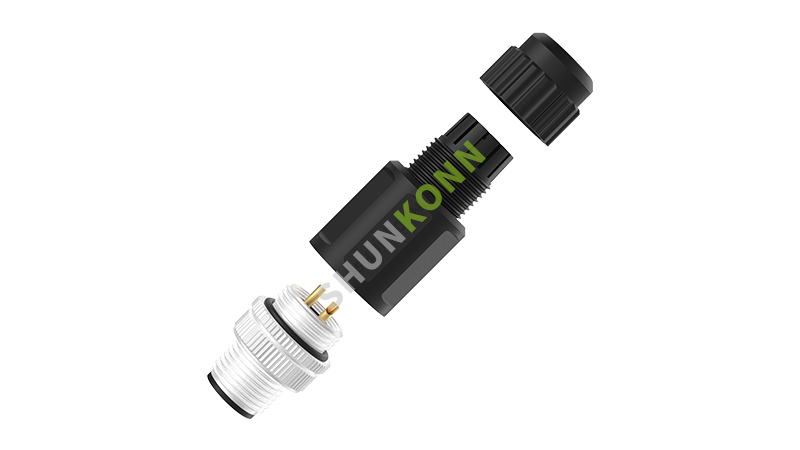

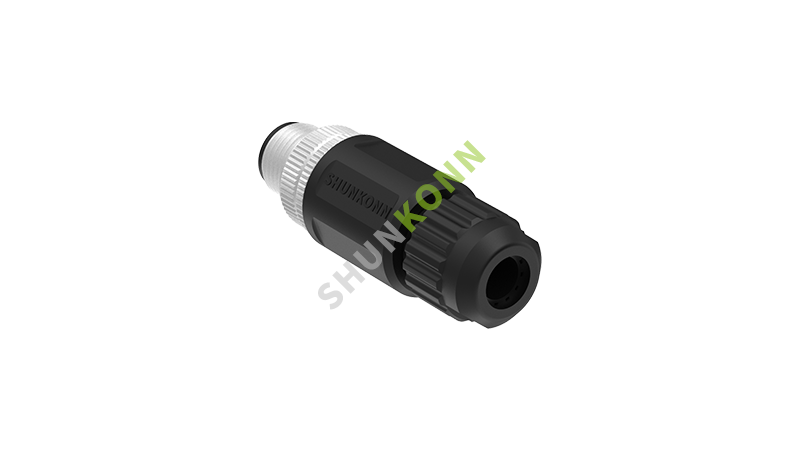

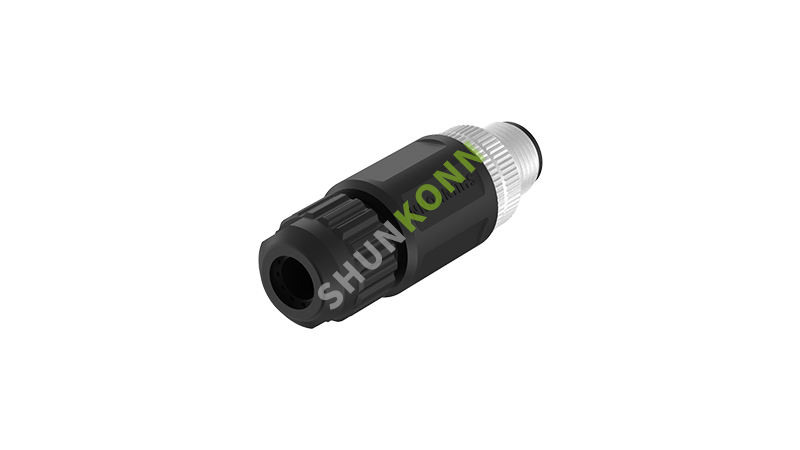

SKM12 A Series M12 A Coded Connectors Straight Plastic Assembled 4PIN Male Solder Type PG7

Product Code : MC12AM-04N1LSMNS601

Number of pins/holes core 4PIN

Plug Type Male Head

Dummy-proof keying A

Straight/ Elbow Straight

Terminal connection type Solder type

Mounting type Straight Plastic Assembled

Protection Rating IP68

Wire Gauge/Size 22AWG/0.34mm²

Operating Temperature -40°C Tо +80°C (Fixed Installation) -20°C Tо +80°C (flexible mounting)

Number of insertions and removals > 500 insertions and removals

Rated voltage 250V

Rated impulse voltage 1500V

Rated current 4A

Contact resistance 5mΩ

Insulation resistance 100 MΩ

Shielding structure non-shielded

Shell material copper nickel-plated

Connector core PA66 + GF

Pollution class III

Flame retardant grade UL94 V0

Industry Standard IEC61076-2-111
