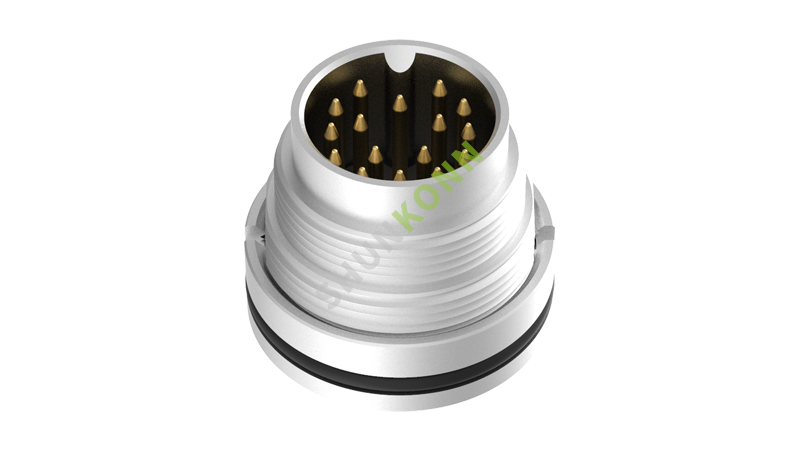

High and low temperature esistance, No oxidation, Corrosion and rust and other undesirable phenomena
Refuse short circuit, metal interface protection cable safety, Prevent pinhole contact, Aging oxidation
Transportation，Renewable Energy，Audio Equipment，Sensors，Pipe Connection，Small Electrical Equipment
Thickened new material outer cover, IP68 waterproof grade, Stable output current/signal, Not easy to short circuit
Insert correctly to prevent reverse insertion，Ensure the stability ，Reliability of the connector

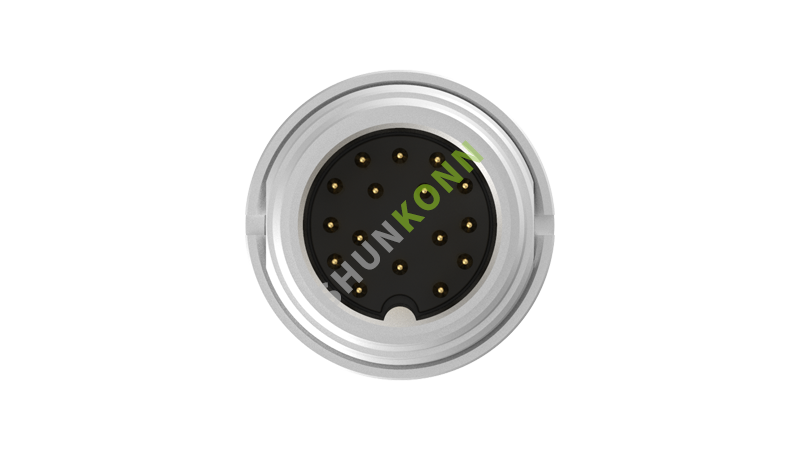

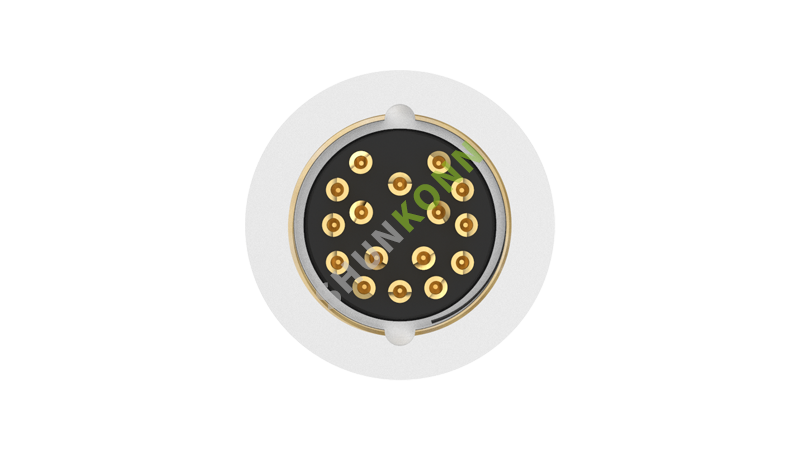

| Cores |
16PIN |
| Plug Type |
Male connector |
| Dummy-proof keying |
General-code |
| Terminal connection type |
Solder type |
| Mounting type |
front-facing nut |
| Protection Rating |
IP68 |
| Wire Gauge/Size |
24AWG/0.25mm² |
| Operating Temperature |
-40°C Tо +80°C (Fixed Installation) -20°C Tо +80°C (flexible mounting) |
| Number of insertions and removals |
> 500 insertions and removals |
| Rated voltage |
60V |
| Rated impulse voltage |
1500V |
| Rated current |
3A |
| Contact resistance |
5mΩ |
| Insulation resistance |
100 MΩ |
| Shielding structure |
non-shielded |
| Shell material |
copper nickel-plated |
| Connector core |
PA66 + GF |
| Pollution class |
III |
| Flame retardant grade |
UL94 V0 |
| Industry Standard |
IEC61076-2-111 |
Electrical parameter
| Product model | pins | Rated current | Rated voltage | Wire Gauge/Size | ||
| A/C | D/C | AWG | mm² | |||
| MC16NM-02R2LSLNS401 | 2 | 7A | 250V | 32V | 20 | 0.75 |
| MC16NM-03R2LSLNS401 | 3 | 7A | 250V | 32V | 20 | 0.75 |
| MC16NM-04R2LSLNS401 | 4 | 6A | 250V | 32V | 20 | 0.75 |
| MC16NM-05R2LSLNS401 | 5/5A | 6A | 60V | 32V | 20 | 0.75 |
| MC16NM-06R2LSLNS401 | 6 | 5A | 250V | 32V | 20 | 0.75 |
| MC16NM-07R2LSLNS401 | 7/7A | 5A | 125V | 32V | 20 | 0.75 |
| MC16NM-08R2LSLNS401 | 8 | 5A | 60V | 32V | 20 | 0.75 |
| MC16NM-12R2LSLNS401 | 12 | 3A | 60V | 32V | 24 | 0.25 |
| MC16NM-14R2LSLNS401 | 14/14A | 3A | 30V | 32V | 24 | 0.25 |
| MC16NM-16R2LSLNS401 | 16 | 3A | 30V | 32V | 24 | 0.25 |
| MC16NM-19R2LSLNS401 | 19 | 3A | 30V | 32V | 24 | 0.25 |
| MC16NM-24R2LSLNS401 | 24 | 1A | 30V | 32V | 26 | 0.14 |
Coding Parameter
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Male |
|
|
|
|
Male |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| Pins | 2 | 3 | 4 | 5 | Pins | 5A |
| Female |
|
|
|
|
Female |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
