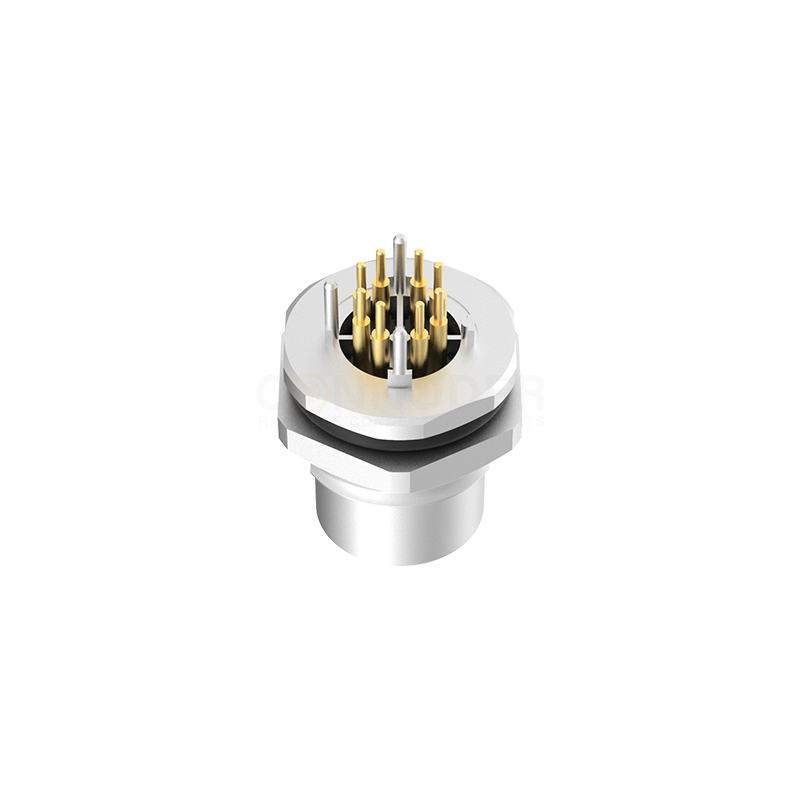

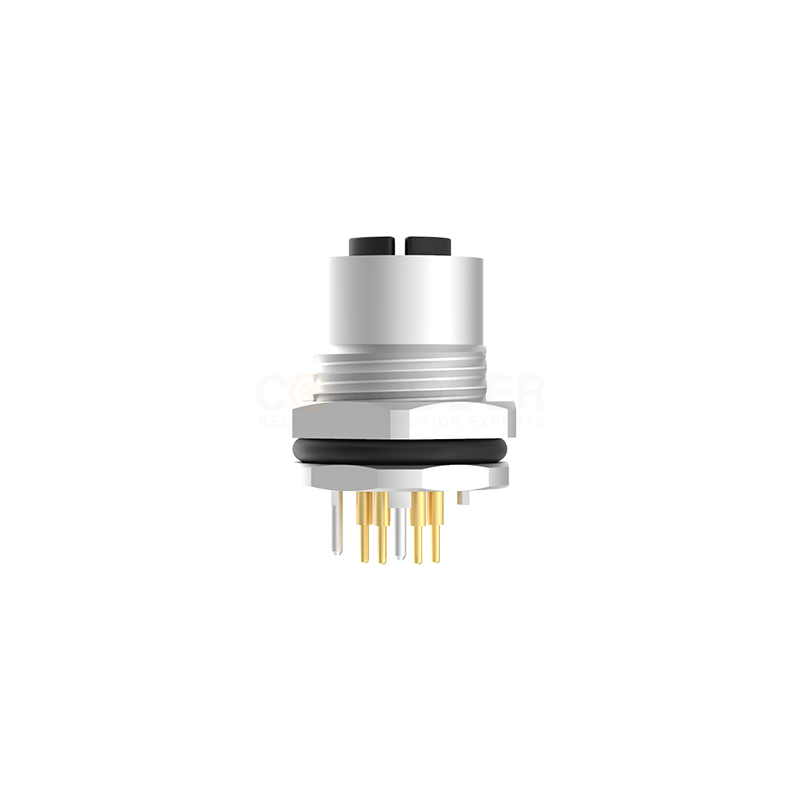

SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Plug plate type M16*1.5
SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Plug plate type M16*1.5
SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Plug plate type M16*1.5
SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Plug plate type M16*1.5
SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Plug plate type M16*1.5
SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Plug plate type M16*1.5
SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Plug plate type M16*1.5

SKM12 X Series M12 X Coded Connectors Plate Rear Mount 8PIN Female Plug plate type M16*1.5

Product Code : MC12XF-08R2LDLNS301

Product Specification

Core 8PIN
Plug Type Female connector
Dummy-proof keying X
Terminal connection type Plug plate type
Mounting type Front-facing nut
Protection Rating IP68
Wire Gauge/Size 26-24AWG/0.14-0.25mm²
Operating Temperature -40°C Tо +80°C (Fixed Installation) -20°C Tо +80°C (flexible mounting)
Number of insertions and removals > 500 insertions and removals
Rated voltage 50V
Rated impulse voltage 1500V
Rated current 0.5A
Contact resistance 5mΩ
Insulation resistance 100 MΩ
Shielding structure non-shielded
Shell material copper nickel-plated
Connector core PA66 + GF
Pollution class III
Flame retardant grade UL94 V0
Industry Standard IEC61076-2-111
