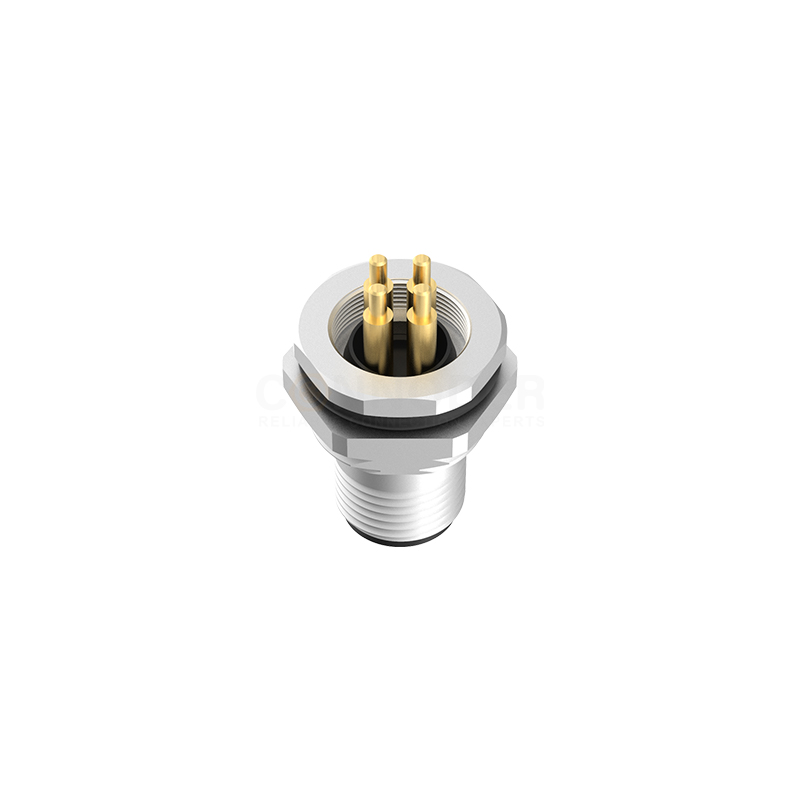

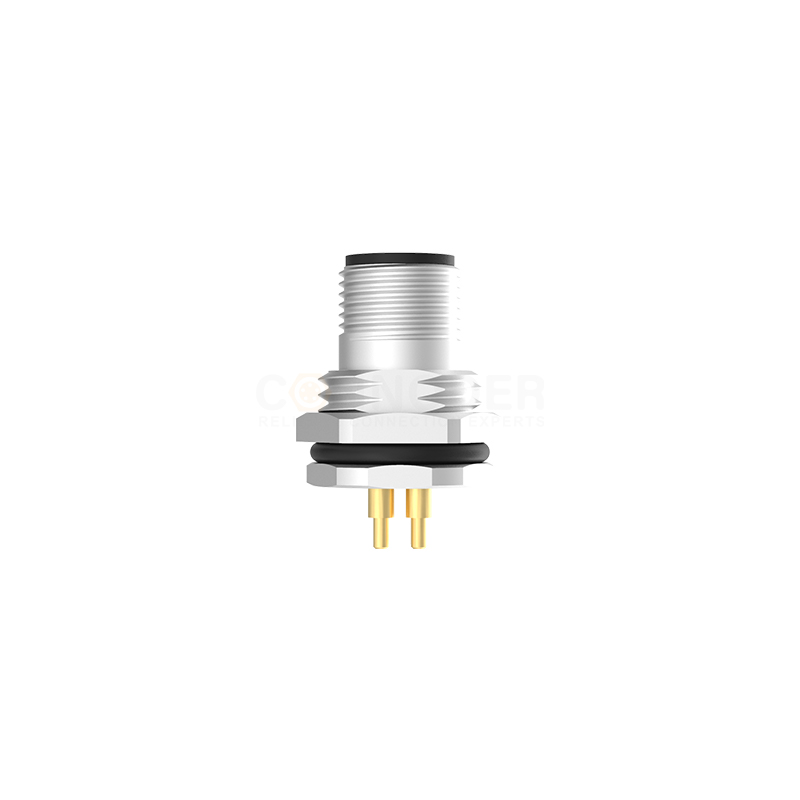

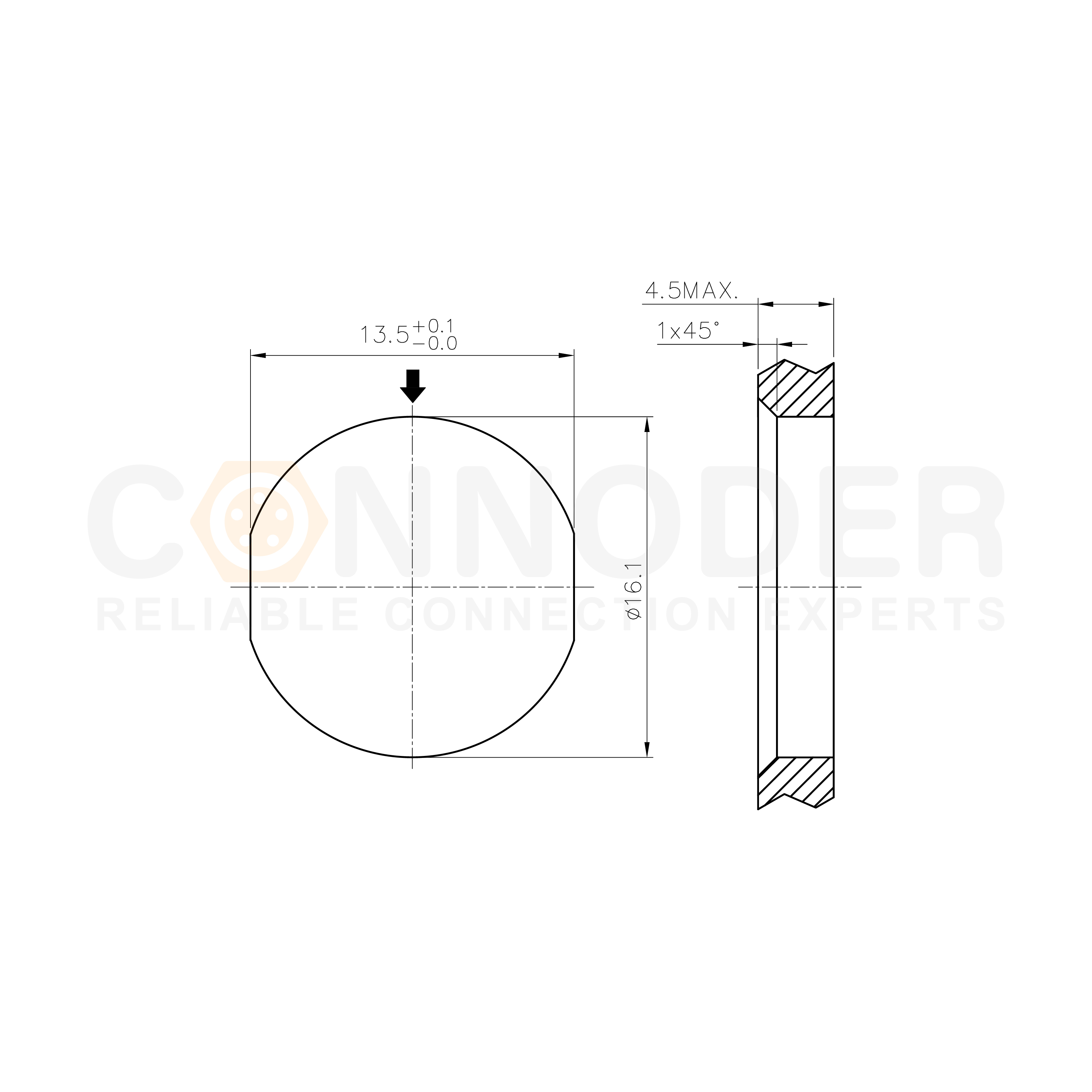

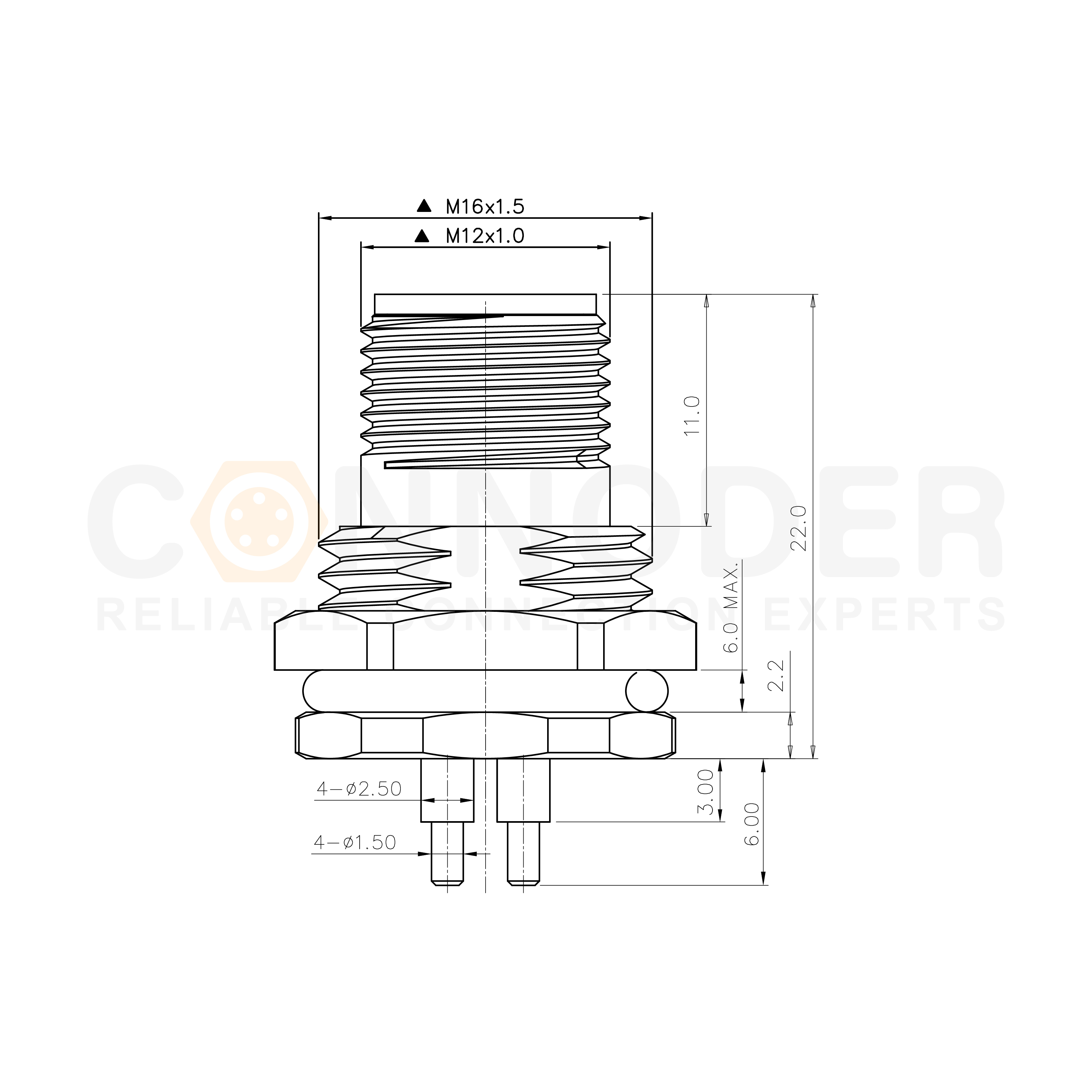

The M12 T coded circular connector is a high-performance connectivity solution specifically designed for DC power applications
☑ Standardized Design: M12 connectors comply with the international standard IEC 61076-2-101, ensuring interoperability and compatibility across different manufacturers.
☑ Compact Structure: Despite offering multiple core count options, M12 connectors maintain a sleek and compact form factor, making them ideal for space-constrained applications.
☑ Protection Rating: IP67 or higher ingress protection effectively prevents dust, water, and other contaminants from entering in harsh environments.
☑ Vibration Resistance: Equipped with a threaded locking mechanism, it ensures a stable electrical connection even under vibration and shock conditions.
☑ Current-Carrying Capacity: T-coded connectors support a rated current of up to 12A, suitable for applications requiring high-power transmission.
☑ Voltage Adaptability: Accommodates a maximum voltage rating of 60V DC, meeting diverse DC power supply requirements.
☑ Shielding and Anti-Interference: Many T-coded connectors feature shielding protection to reduce Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), guaranteeing stable and reliable data transmission.
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Male |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
|||
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Female |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
| 2+PE Pin Core Color S Code | 芯数 | 3+PE Pin Core Color S Code | ||
| BK1 |  |
1 | BK1 | |
| BK2 | |
2 | BK2 | |
| GNYE |  |
3 | BK3 | |
| 4 | GNYE | |
||
| - | ||||
| 4+PE Pin Core Color K Code | 芯数 | 4 Pin Pin Core Color T Code | ||
| BK1 | |
1 | BN |  |
| BK2 | |
2 | WH |  |
| BK3 | |
3 | BU |  |
| BK4 | |
4 | BK | |
| GNYE | |
|||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
| Pins | 2T | 3S | 3T | 4S |
| Male |  |
 |
 |
 |
| 4T | 3K/3L | 4K/4L | 5K/5L | |
 |
 |
 |
 |
|
| Pins | 2T | 3S | 3T | 4S |
| Female |  |
|
 |
 |
| 4T | 3K/3L | 4K/4L | 5K/5L | |
 |
 |
 |
 |
