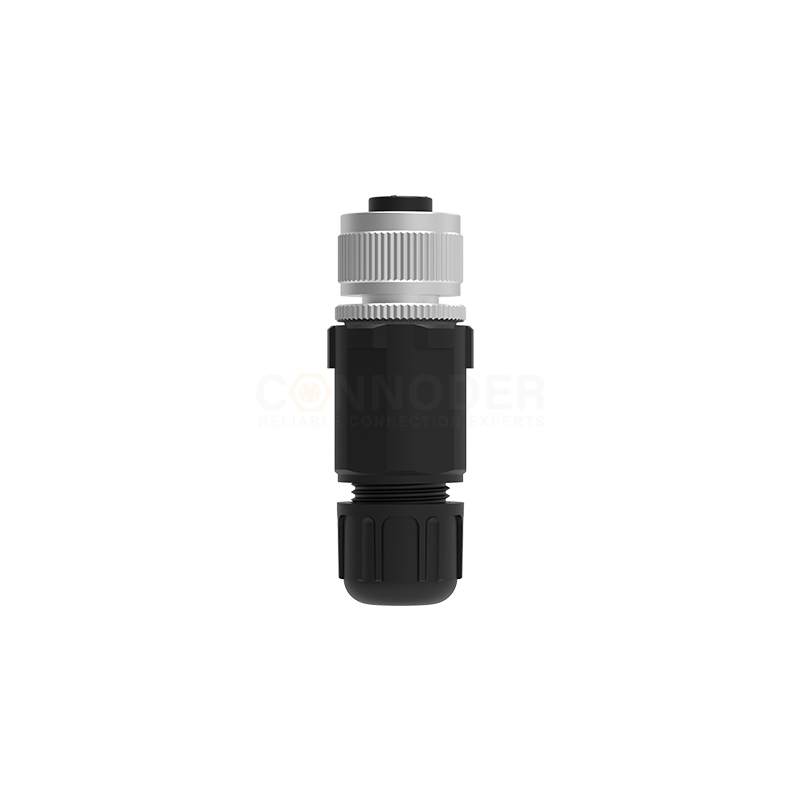

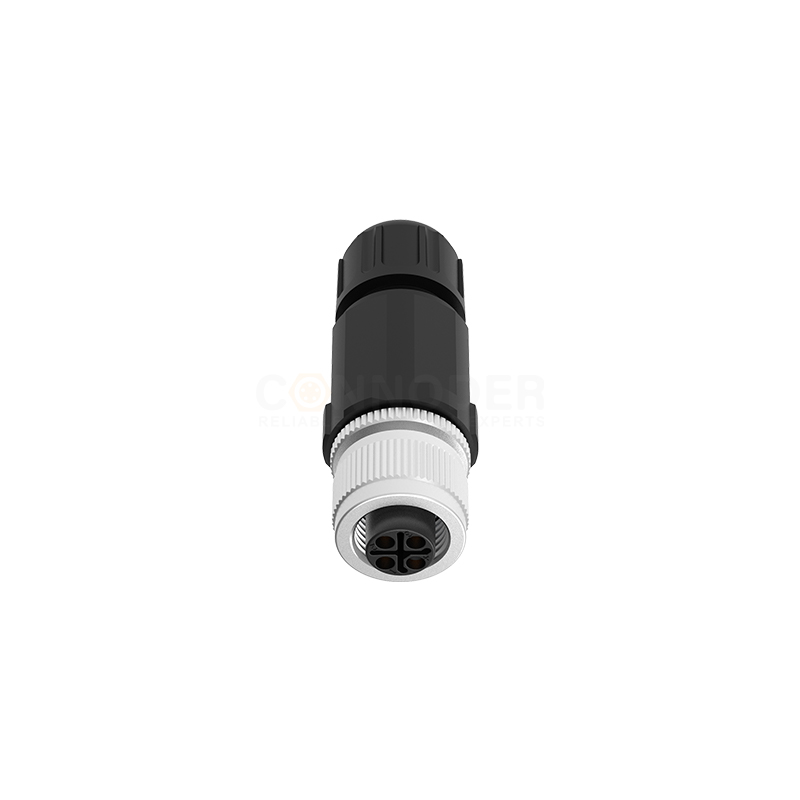

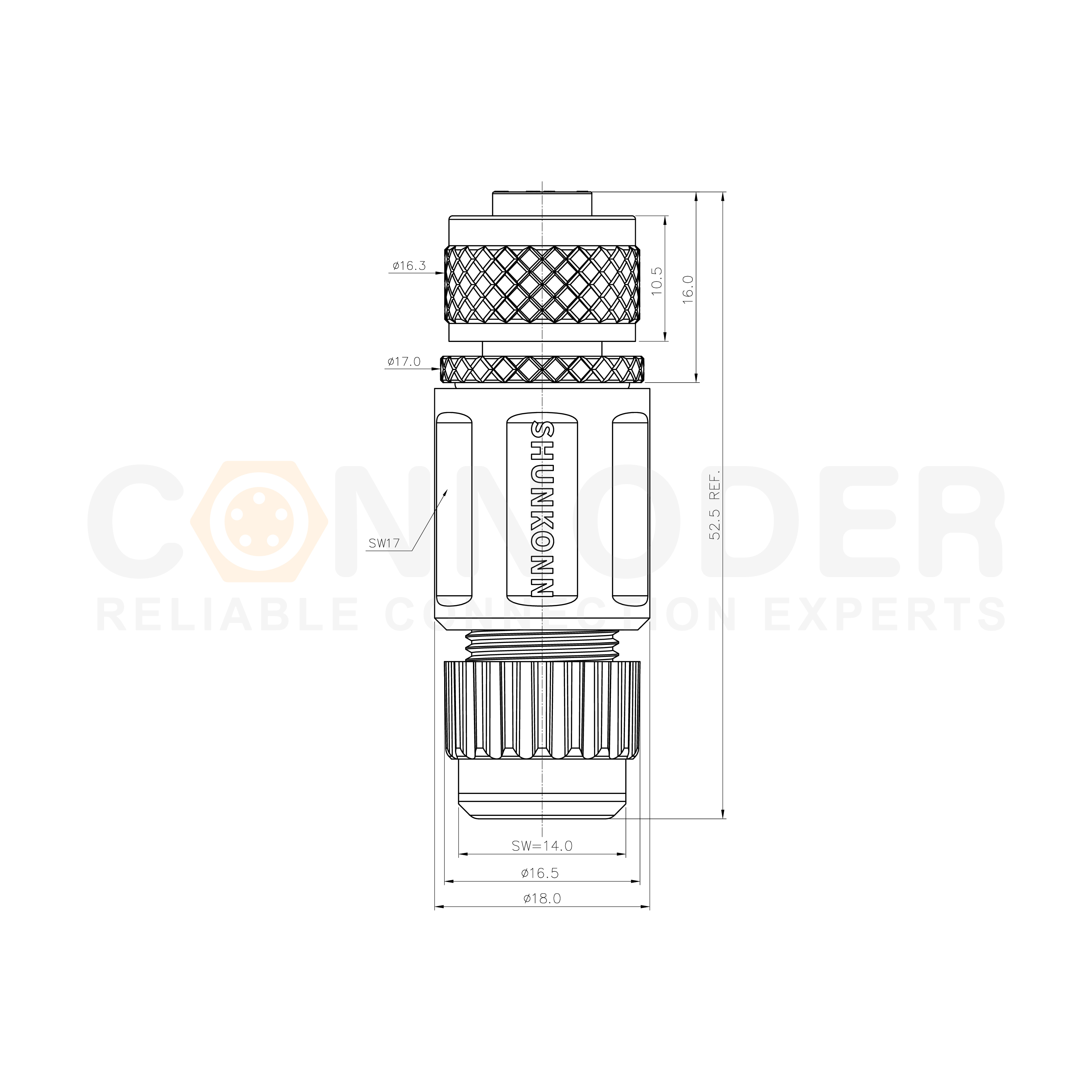

The M12 S code circular connector is specifically designed for AC power applications and provides a good shielding performance and level of protection to meet the high requirements of power connectors in industrial automation.
☑ Standardized Design: M12 connectors comply with the international standard IEC 61076-2-101, ensuring interchangeability and compatibility among different manufacturers.
☑ Protection Rating: Featuring an IP67 or higher protection rating, it can effectively prevent dust, water, and other contaminants from entering in harsh environments.
☑ Vibration Resistance: It adopts a thread-locking mechanism to ensure stable electrical connections are maintained under vibration and impact conditions.
☑ Diverse Coding Options: Multiple coding types (such as A, B, C, and D) are available to prevent incorrect insertion and meet different application requirements.
☑ Operating Temperature Range: Typically ranging from -25°C to +80°C, some products can operate normally in even lower or higher temperature ranges.
☑ Voltage and Current Ratings: Depending on different application scenarios, S-coded connectors can support a maximum current of 12A and an operating voltage of 630V AC, making them suitable for applications that require high-power transmission.
☑ Durability: High-quality brass or phosphor bronze terminals undergo solid gold plating, which provides strong oxidation resistance and ensures a mating cycle life of more than 500 times.
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Male |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
|||
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Female |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
| 2+PE Pin Core Color S Code | Pin | 3+PE Pin Core Color S Code | ||
| BK1 |  |
1 | BK1 | |
| BK2 | |
2 | BK2 | |
| GNYE |  |
3 | BK3 | |
| 4 | GNYE | |
||
| - | ||||
| 4+PE Pin Core Color K Code | Pin | 4 Pin Pin Core Color TCode | ||
| BK1 | |
1 | BN |  |
| BK2 | |
2 | WH |  |
| BK3 | |
3 | BU |  |
| BK4 | |
4 | BK | |
| GNYE | |
|||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
