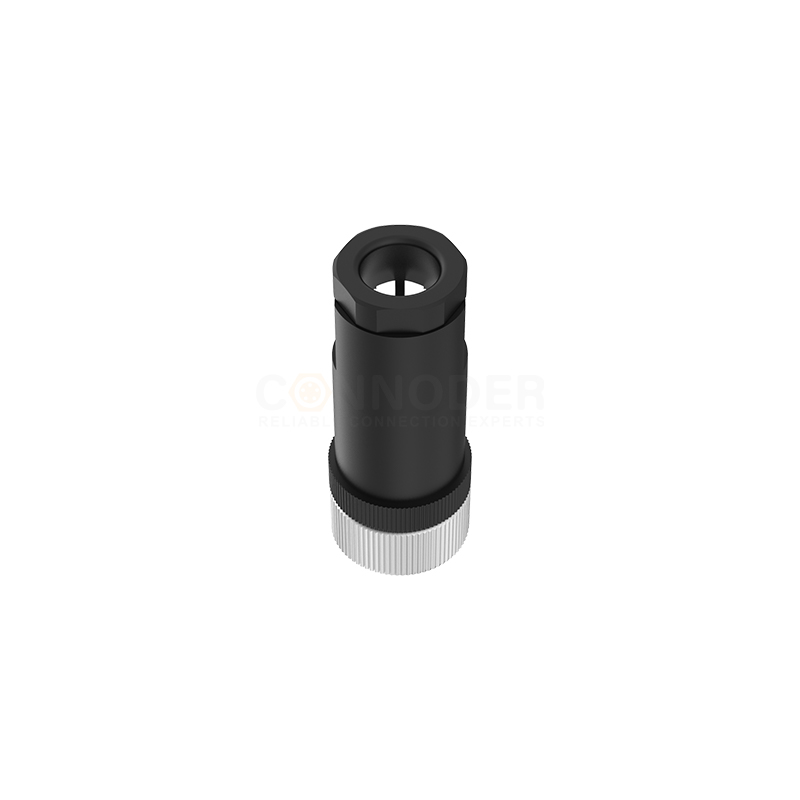

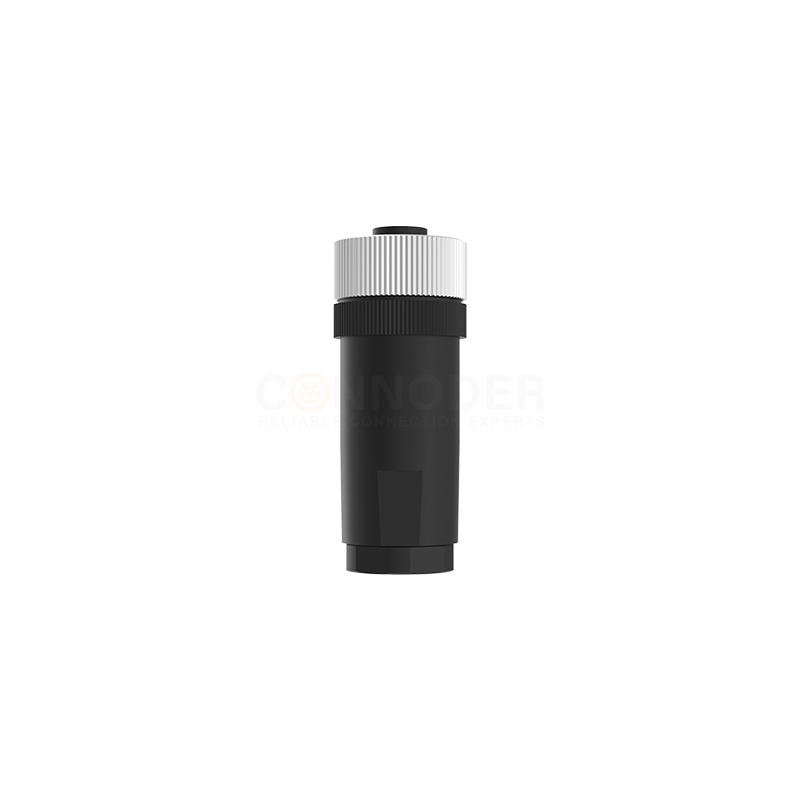

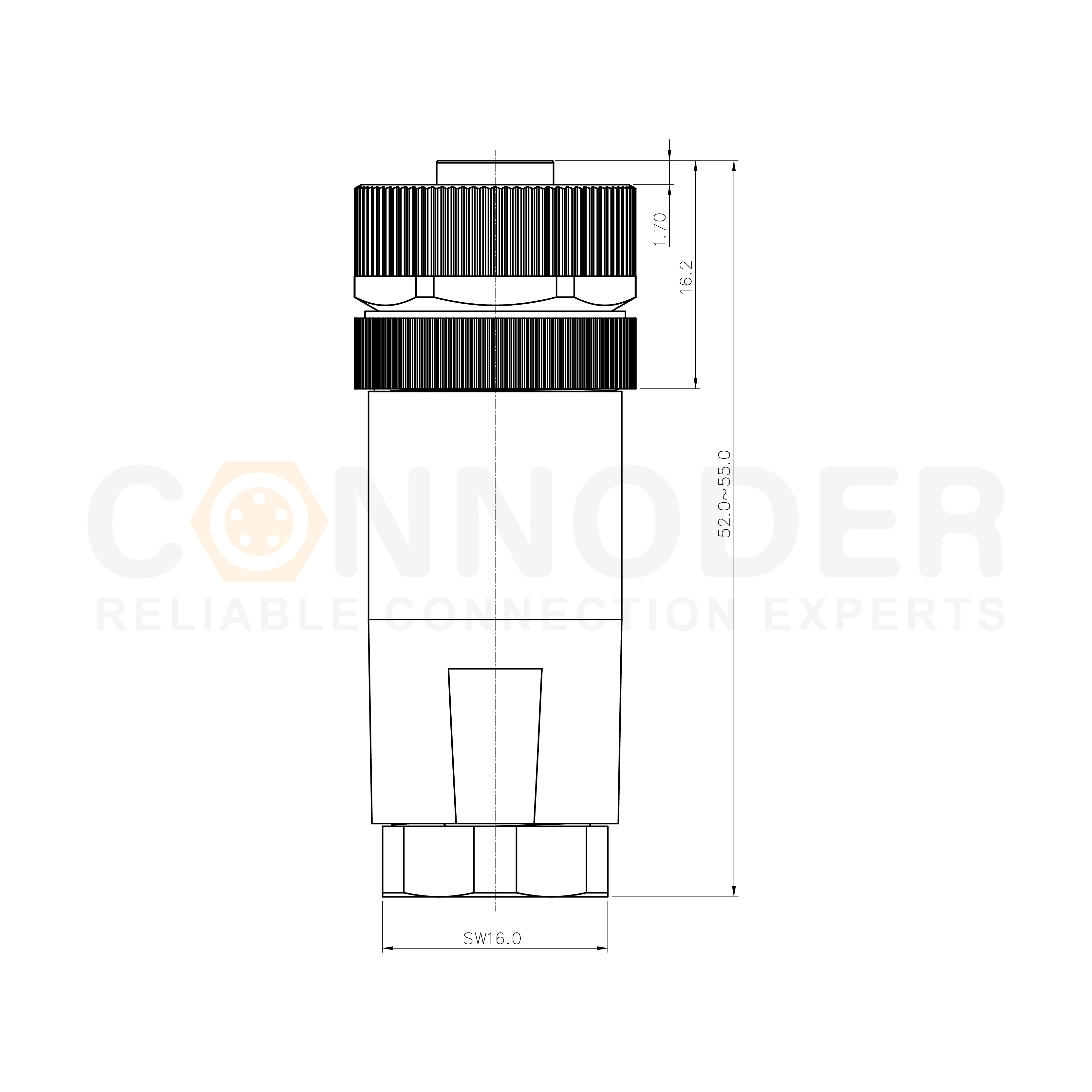

M12 connector Field Assembly is a connector designed for field installation and assembly, primarily in the fields of industrial automation, robotics and sensors.
☑ Modular Design: Users can assemble the product by themselves at the construction site according to actual needs. No special tools are required, or only simple hand tools are needed to complete the installation.
☑ Protection Level: It has an IP67 protection rating, which is dustproof and waterproof, making it suitable for outdoor or humid environments.
☑ Sturdiness and Durability: Made of high-quality materials, it can withstand mechanical impacts, vibrations and temperature changes.
☑ Standardization: It complies with international standards (such as IEC 61076-2-101/104), ensuring interchangeability between products of different brands.
☑ Operating Temperature Range: Generally, it ranges from -25°C to +80°C, and some products can work normally in even lower or higher temperature ranges.
☑ Voltage and Current Ratings: Depending on different application scenarios, S-coded connectors can support a maximum current of 12A and an operating voltage of 630V AC, which are suitable for application scenarios that require high-power transmission.
☑ Durability: High-quality brass or phosphor bronze terminals are treated with solid gold plating, which has strong oxidation resistance and ensures a mating cycle life of more than 500 times.
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Male |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
|||
| Pins | 2 K | 2+PE K | 3+PE K | 4+PE K |
| Female |
|
|
|
|
| 2 S | 2+PE S | 3+PE S | 2 T | |
|
|
|
|
|
|
| 2+PE T | 3+PE T | |||
|
|
|
| 2+PE Pin Core Color S Code | Pin | 3+PE Pin Core Color S Code | ||
| BK1 |  |
1 | BK1 | |
| BK2 | |
2 | BK2 | |
| GNYE |  |
3 | BK3 | |
| 4 | GNYE | |
||
| - | ||||
| 4+PE Pin Core Color K Code | Pin | 4 Pin Pin Core Color TCode | ||
| BK1 | |
1 | BN |  |
| BK2 | |
2 | WH |  |
| BK3 | |
3 | BU |  |
| BK4 | |
4 | BK | |
| GNYE | |
|||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
