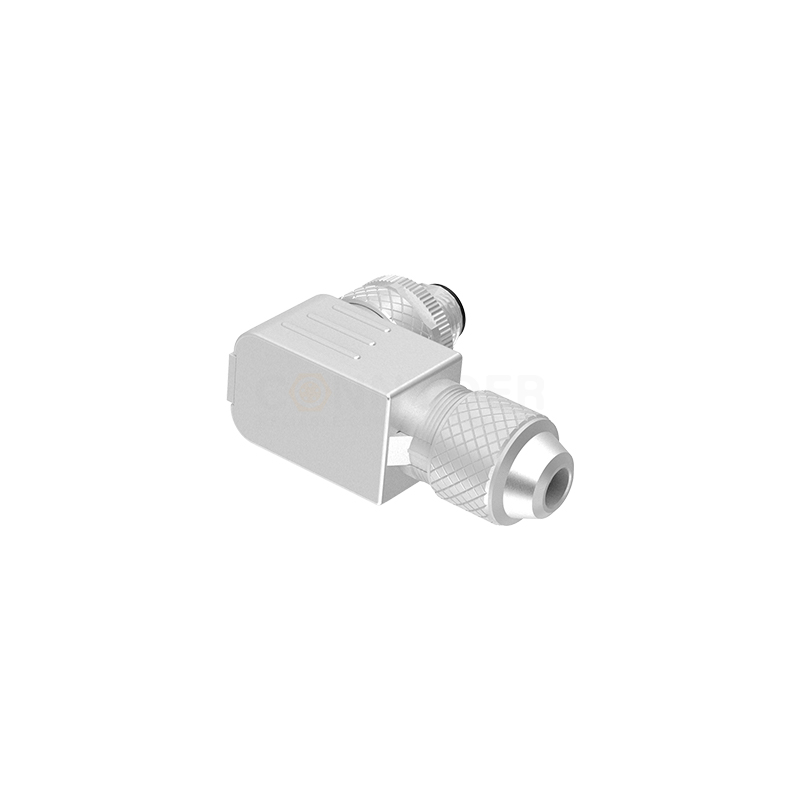

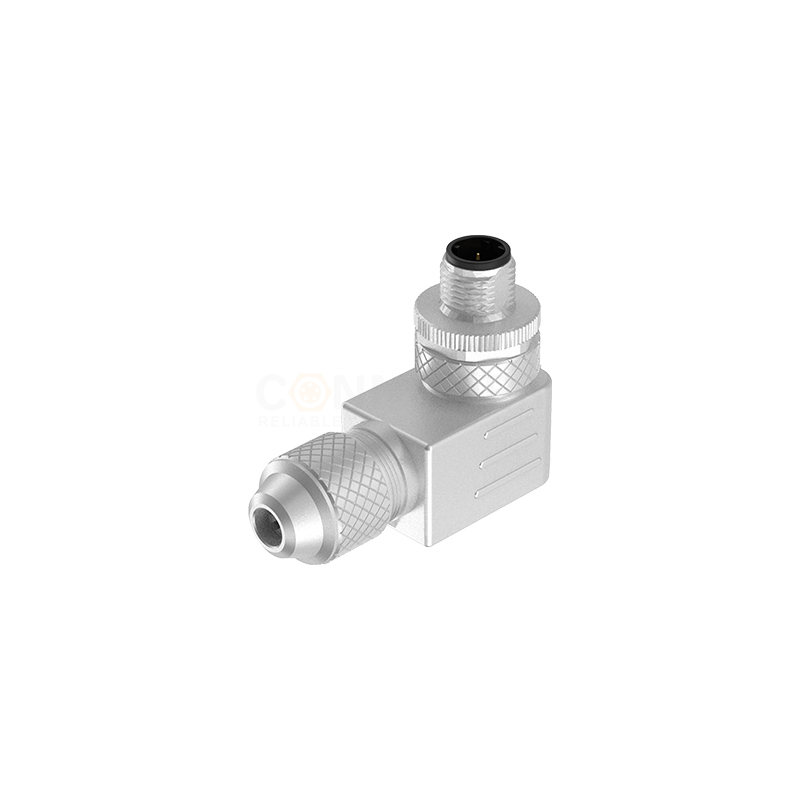

M12 D-coded Right Angle Metal Assembled Circular Connector are high performance connectivity solutions designed for use in industrial automation and communication networks.
☑Standardized Design: The M12 connector complies with the international standard IEC 61076-2-101, ensuring interchangeability and compatibility among different manufacturers.
☑Metal Housing Structure: Adopting a fully metal shielded housing, it features anti-vibration loosening design and industrial-grade protection ratings (IP67/IP68/IP69K), suitable for complex working conditions.
☑Vibration Resistance: The threaded locking mechanism ensures stable electrical connection even under vibration and shock conditions.
☑Coding Diversity: Providing multiple coding types such as A, B, C, D, etc., to prevent misplugging and meet different application requirements.
☑High Protection and Anti-interference Capability: The metal housing combined with shielded layer design effectively resists electromagnetic interference (EMI), as well as environmental dust and oil contamination.
☑Voltage/Current: Supporting a maximum voltage of 250V and current of 4A, it is suitable for industrial sensor signal transmission or low-power supply.
☑Voltage Withstand and Durability: Withstanding high and low temperatures (-40℃~+85℃), oil, and ultraviolet rays, it meets the long-term use requirements of harsh environments. The plugging and unplugging lifespan is ≥ 500 cycles, and the threaded connection ensures mechanical stability.
☑Transmission Performance: The contact resistance is ≤ 5mΩ, and the insulation resistance is ≥ 100MΩ (tested at 500V DC), ensuring low signal loss and high isolation.
| Pins | 4D | Pins | 4D |
| Male |  |
Female |  |
| Pins | 4 Pin Core Color D Code | |
| 1 | YE |  |
| 2 | WH |  |
| 3 | OG |  |
| 4 | BU |  |
