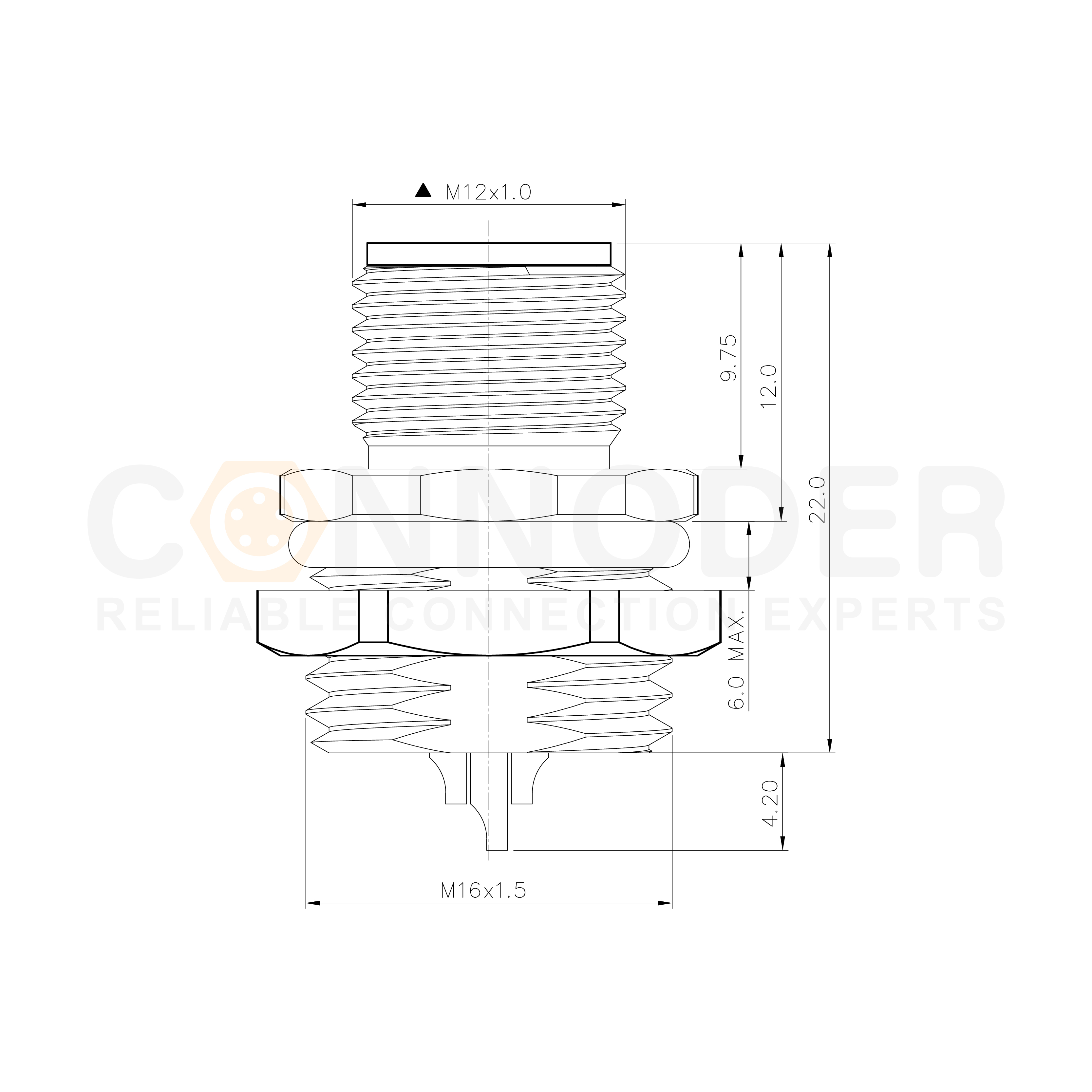

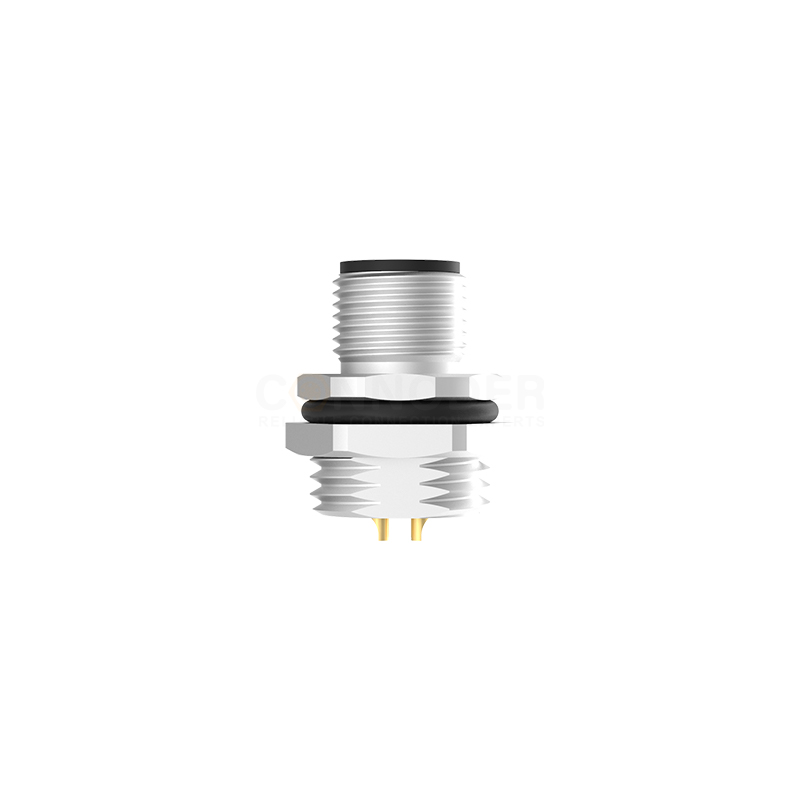

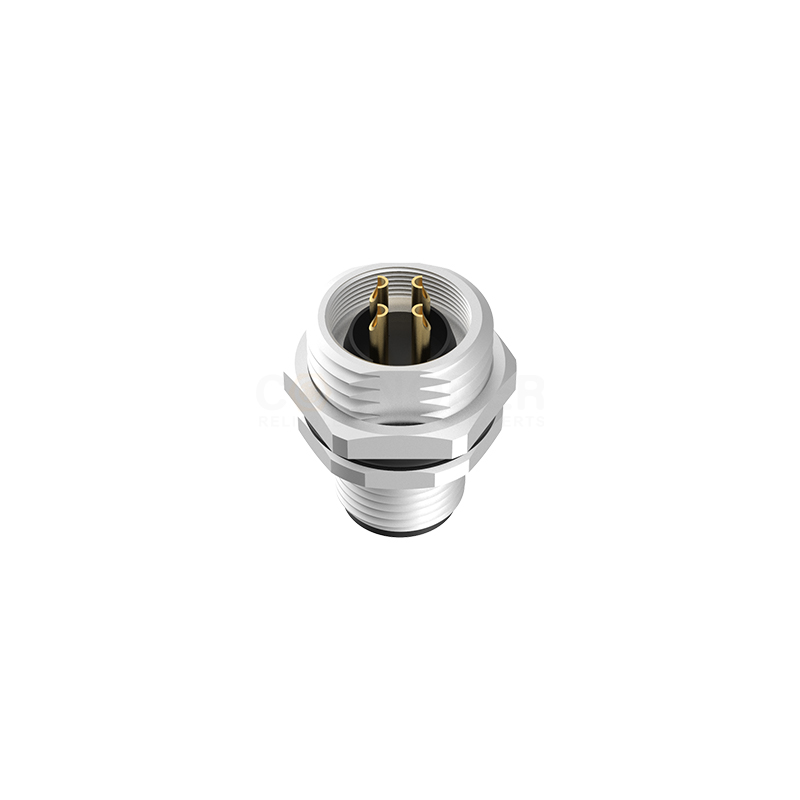

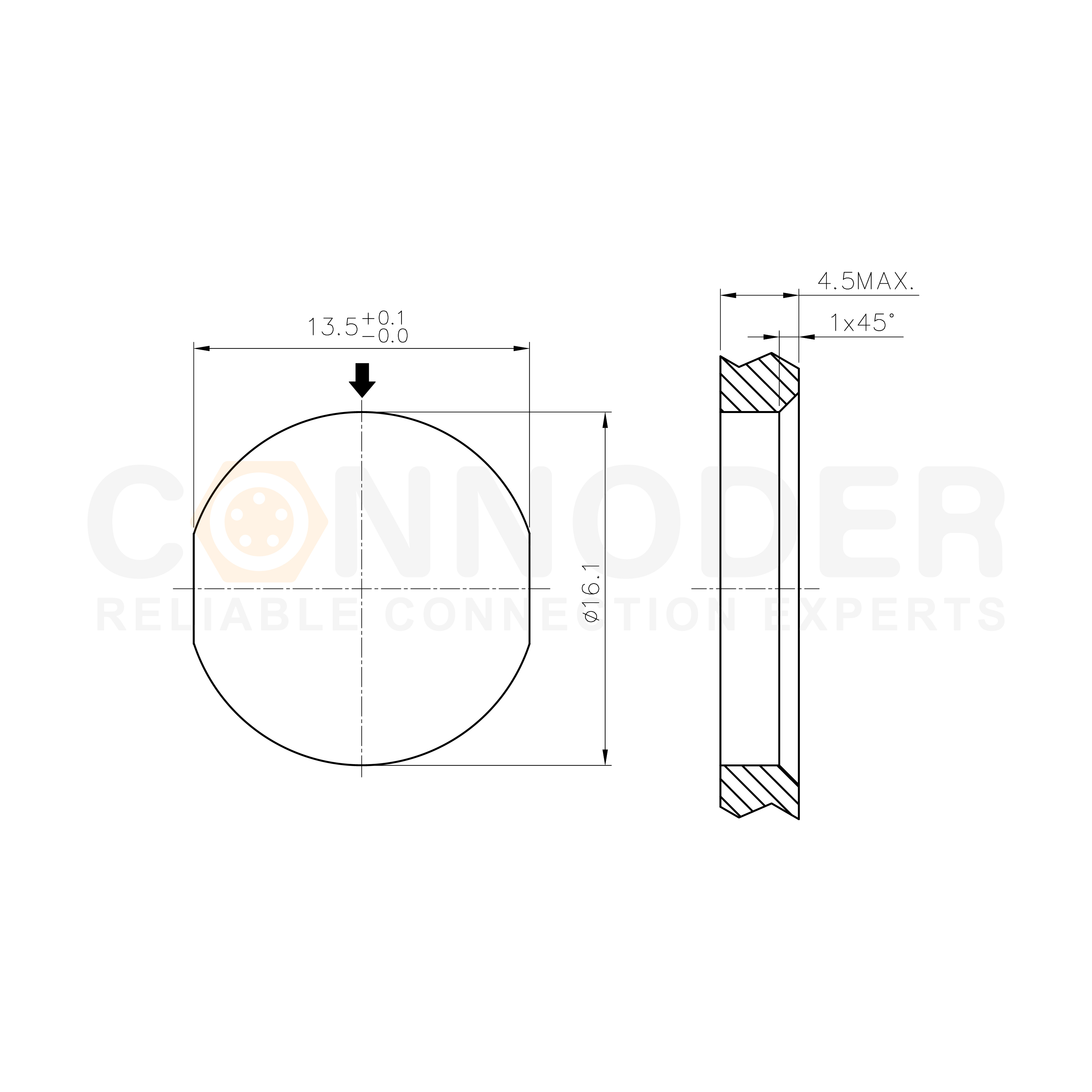

M12 D-coded circular connectors are high performance connectivity solutions designed for use in industrial automation and communication networks.
☑ D Coding: M12 connectors with D coding are mainly used to support Ethernet protocols, such as Profinet and EtherCAT. They usually adopt a 4-pin design and are suitable for medium-speed data transmission requirements.
☑ Compact Size: D-coded M12 connectors can provide sufficient space to accommodate necessary contacts. Due to their compact design, they are very suitable for use in environments with limited space.
☑ Durability: They have an IP67 or higher protection rating, which can effectively prevent dust, water and other contaminants from entering, ensuring long-term stable operation in harsh environments.
☑ Locking Mechanism: M12 connectors use a threaded locking mechanism. This not only ensures the safety of the connection but also provides anti-vibration capability, which is particularly important for mobile devices or environments with frequent vibrations.
☑ Number of Pins: The standard configuration is 4 pins, specifically designed for industrial Ethernet applications and capable of meeting the needs of most high-speed data transmission.
☑ Rated Voltage and Current: They support a maximum rated voltage of 250V and a maximum rated current of 4A.
☑ Bandwidth Capacity: D-coded M12 connectors usually support a transmission speed of 100Mbps, making them suitable for industrial Ethernet protocols like Profinet.
☑ Shielding Performance: To reduce electromagnetic interference (EMI), some D-coded M12 connectors are equipped with a shielding function, which is crucial for maintaining signal integrity.
| Pins | 4D | Pins | 4D |
| Male |  |
Female |  |
| Pins | 4 Pin Core Color D Code | |
| 1 | YE |  |
| 2 | WH |  |
| 3 | OG |  |
| 4 | BU |  |
