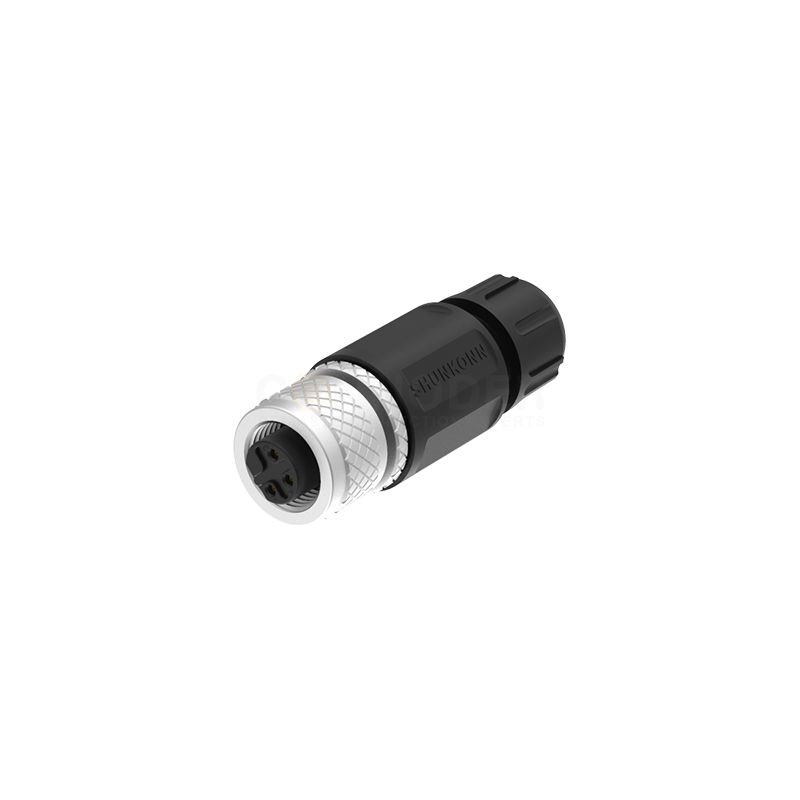

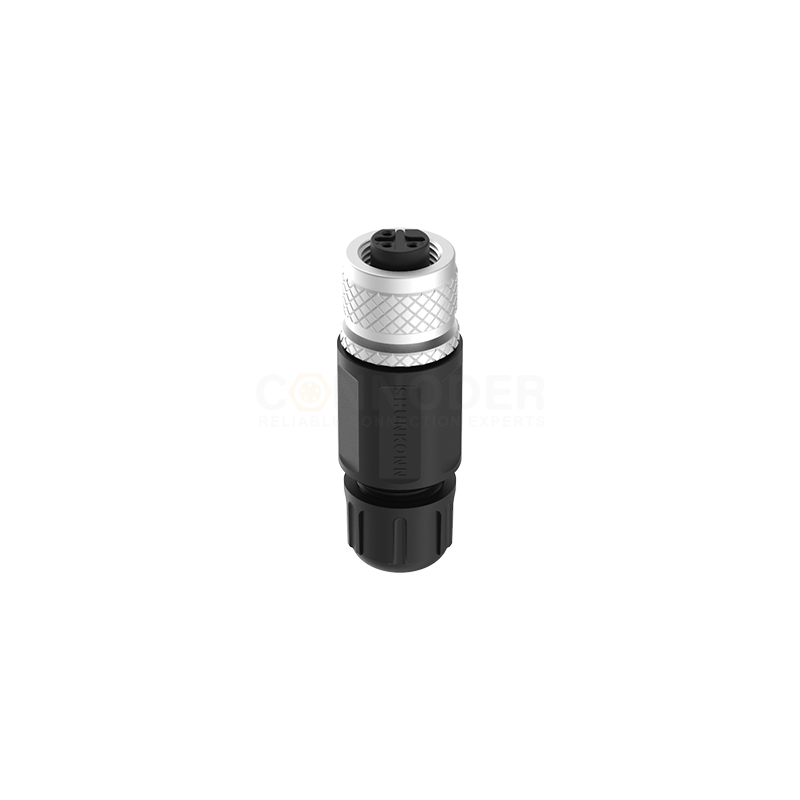

| core |
5PIN |
| Plug Type |
Female Head |
| Dummy-proof keying |
B |
| Terminal connection type |
Solder type |
| Mounting type |
Straight Plastic Assembled |
| Straight Metal Assembled |
IP68 |
| Wire Gauge/Size |
22AWG/0.34mm² |
| Operating Temperature |
-40°C Tо +80°C (Fixed Installation) -20°C Tо +80°C (flexible mounting) |
| Number of insertions and removals |
> 500 insertions and removals |
| Rated voltage |
60V |
| Rated impulse voltage |
1500V |
| Rated current |
4A |
| Contact resistance |
5mΩ |
| Insulation resistance |
100 MΩ |
| Shielding structure |
non-shielded |
| Shell material |
copper nickel-plated |
| Connector core |
PA66 + GF |
| Pollution class |
III |
| Flame retardant grade |
UL94 V0 |
| Industry Standard |
IEC61076-2-111 |
M12 B Coded Circular Connector Coding Parameter
| Pins | 3B | 4B | 5B |
| Male |
|
 |
 |
| Pins | 3B | 4B | 5B |
| Female |
|
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 B Coded Circular Connector Wire Definition
| Pins | 2 Pin Core Color | Pins | 3 Pin Core Color | Pins | 4 Pin Core Color A/B Code | |||
| 1 | BN |  |
1 | BN | |
1 | BN | |
| 2 | - |  |
2 | - | |
2 | WH |  |
| 3 | BU |  |
3 | BU | |
3 | BU | |
| 4 | BK |  |
4 | BK | |
|||
| - | ||||||||
| Pins | 4 Pin Core Color D Code | Pins | 5 Pin Core Color | Pins | 6 Pin Core Color | |||
| 1 | YE |  |
1 | BN | |
1 | BN | |
| 2 | WH | |
2 | WH | |
2 | WH | |
| 3 | OG |  |
3 | BU | |
3 | BU | |
| 4 | BU | |
4 | BK | |
4 | BK | |
| 5 | GY |  |
5 | - | |
|||
| 6 | GY | |
||||||
| 7 | RD |  |
||||||
| - | ||||||||
| Pins | 8 Pin Core Color | Pins | 12 Pin Core Color | Pins | 17 Pin Core Color | |||
| 1 | WH | |
1 | BN | |
1 | BN | |
| 2 | BN | |
2 | BU | |
2 | BU | |
| 3 | GN |  |
3 | WH | |
3 | WH | |
| 4 | YE | |
4 | GN | |
4 | GN | |
| 5 | GY | |
5 | PK |  |
5 | PK | |
| 6 | PK | |
6 | YE | |
6 | YE | |
| 7 | BU | |
7 | BK | |
7 | BK | |
| 8 | RD | |
8 | GY | |
8 | GY | |
| 9 | RD | |
9 | RD | |
|||
| 10 | VT |  |
10 | VT | |
|||
| 11 | OG | |
11 | OG | |
|||
| 12 | LTGN |  |
12 | LTGN | |
|||
| 13 | LTBU |  |
||||||
| 14 | BKWH |  |
||||||
| 15 | BNWH |  |
||||||
| 16 | RDWH |  |
||||||
| 17 | BUWH |  |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
