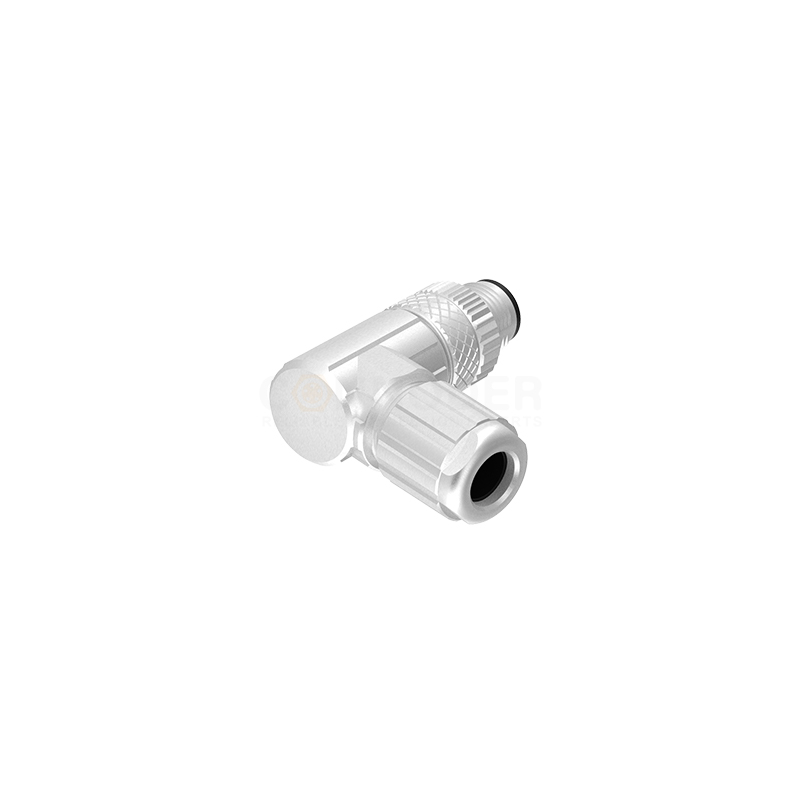

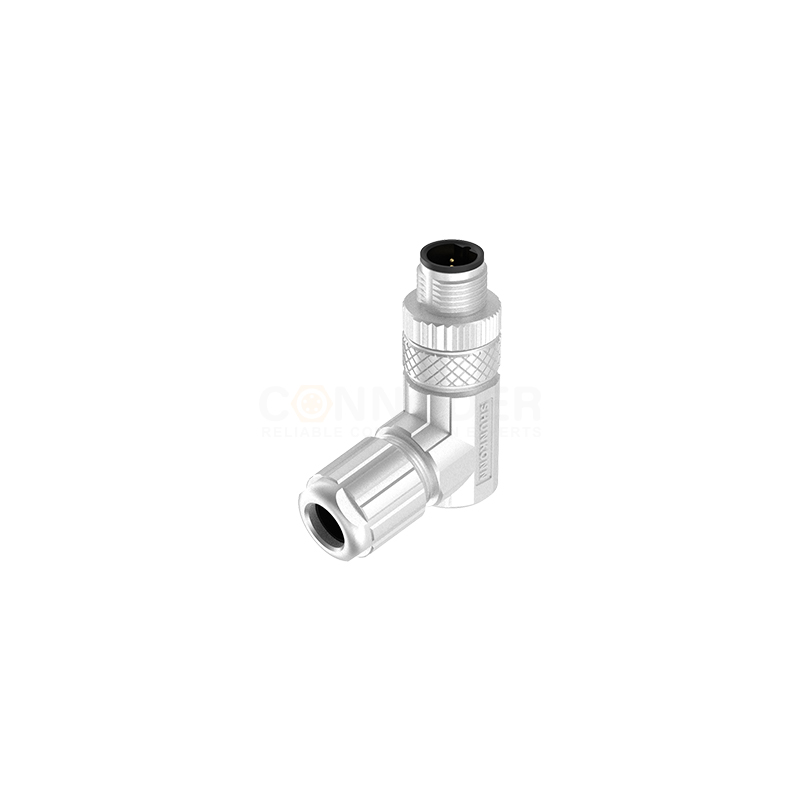

The M12B coded curved metal assembly circular connector adopts a full metal shielded shell, with an anti-vibration design and industrial-grade protection level (IP67/IP68/IP69K), suitable for complex industrial environments.
☑Encoding Keyway Structure:The B encoding adopts a unique keyway positioning system. Through a physical error-proof design, it achieves mutual incompatibility with encodings such as A/C/D/X, effectively preventing the risk of incorrect insertion when connecting fieldbus devices.
☑Standardized Design:M12 connectors comply with the international standard IEC 61076-2-101, ensuring interchangeability and compatibility among different manufacturers.
☑Metal Housing Structure:It uses a full-metal shielded housing, featuring an anti-vibration and anti-loosening design as well as industrial-grade protection ratings (IP67/IP68/IP69K), making it suitable for complex working conditions.
☑Vibration Resistance:A thread locking mechanism is adopted to ensure stable electrical connection even under vibration and impact conditions.
☑Signal Transmission Characteristics:It supports fieldbus protocols such as PROFIBUS DP/PA and INTERBUS.
☑Voltage and Current:It supports a rated voltage of 250V and a maximum carrying current of up to 4A, which is suitable for the needs of transmitting low-to-medium power signals.
☑Durability:High-quality brass or phosphor bronze terminals undergo solid gold plating treatment, featuring strong anti-oxidation ability and ensuring a plug-in life of more than 500 times.
| Pins | 3B | 4B | 5B |
| Male |
|
 |
 |
| Pins | 3B | 4B | 5B |
| Female |
|
 |
 |
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | Pins | 5 Pin Core Color | |||
| 1 | BN |  |
1 | BN | |
1 | BN | |
| 2 | - |  |
2 | WH |  |
2 | WH | |
| 3 | BU |  |
3 | BU | |
3 | BU | |
| 4 | BK |  |
4 | BK | |
4 | BK | |
| 5 | GY |  |
||||||
