Enhance transmission signal and reduce impedance
Protect dust penetration and short immersion, thickening needle, long life
Threaded connection line, safe and reliable; Pure copper electric shock, excellent conduction
Adopts industrial high flexible cable, resistant to bending and wear
Insert correctly to prevent reverse insertion to ensure the stability and reliability of the connector
| core |
3PIN |
| Plug Type |
Male connector |
| Dummy-proof keying |
B |
| Terminal connection type |
Solder type |
| Mounting type |
Rear-facing nut |
| Straight Metal Assembled |
IP68 |
| Wire Gauge/Size |
20AWG/0.75mm² |
| Operating Temperature |
-40°C Tо +80°C (Fixed Installation) -20°C Tо +80°C (flexible mounting) |
| Number of insertions and removals |
> 500 insertions and removals |
| Rated voltage |
250V |
| Rated impulse voltage |
1500V |
| Rated current |
4A |
| Contact resistance |
5mΩ |
| Insulation resistance |
100 MΩ |
| Shielding structure |
Shielded |
| Shell material |
copper nickel-plated |
| Connector core |
PA66 + GF |
| Pollution class |
III |
| Flame retardant grade |
UL94 V0 |
| Industry Standard |
IEC61076-2-111 |
Electrical parameter
|
Product model
|
Pins
|
Rated current
|
Rated voltage
|
Wire Gauge/Size
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12AM-02R2LDLNS101 |
2
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-03R2LDLNS101 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-04R2LDLNS101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-05R2LDLNS101 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| MC12AM-06R2LDLNS101 |
6
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AM-08R2LDLNS101 |
8
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AM-12R2LDLNS101 |
12
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
| MC12AM-17R2LDLNS101 |
17
|
1.5A
|
30V
|
30V
|
26
|
0.14
|

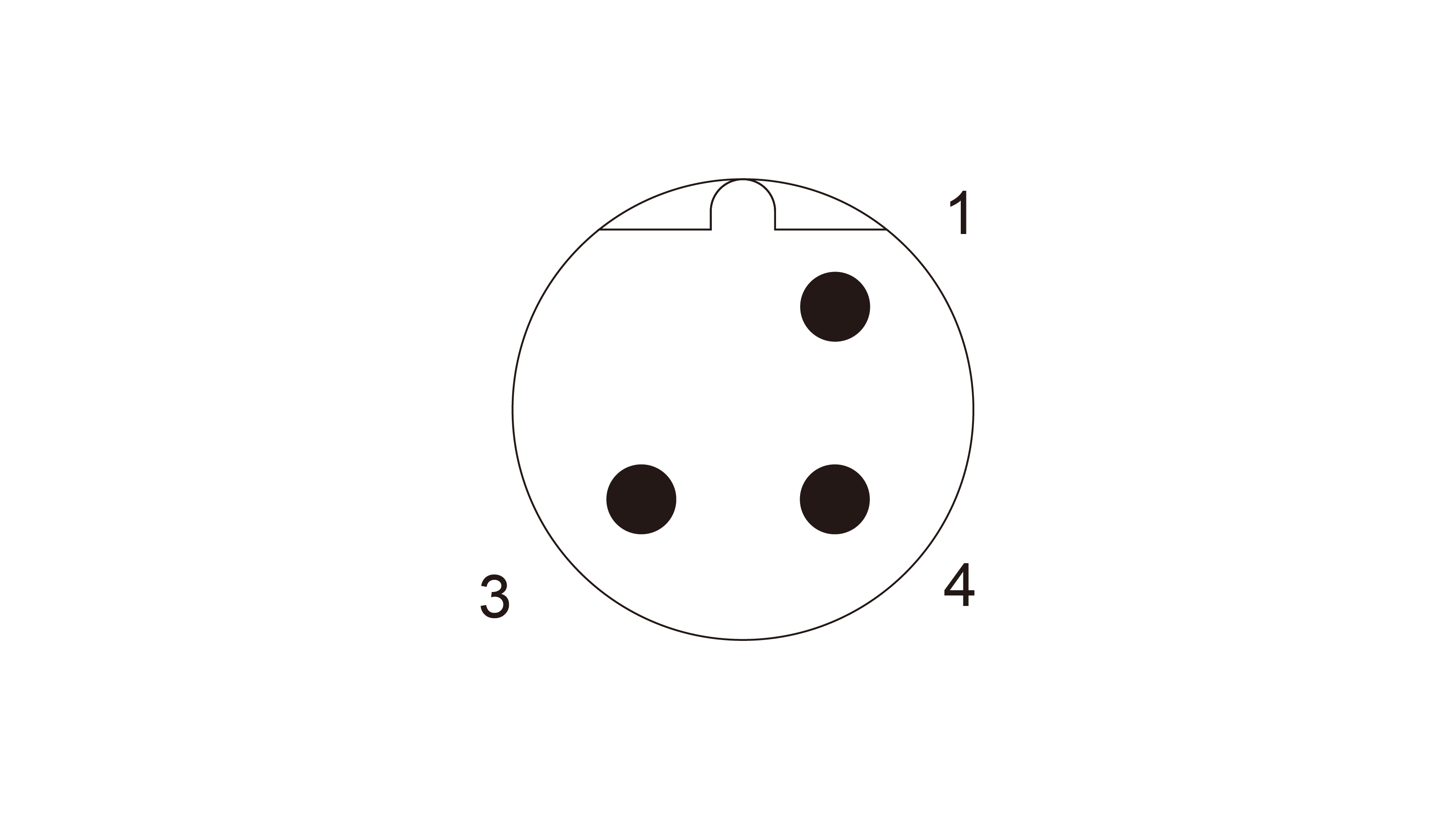

Coding Parameter
| Pins | 2A | 3A | 4A | 5A |
| Male |  |
 |
 |
 |
| 6A | 8A | 12A | 17A | |
 |
 |
 |
 |
|
| 4B | 5B | 3C | 4C | |
 |
 |
 |
 |
|
| 5C | 6C | 4D | ||
 |
 |
 |
||
| Pins | 2A | 3A | 4A | 5A |
| Female |  |
 |
 |
 |
| 6A | 8A | 12A | 17A | |
 |
 |
 |
 |
|
| 4B | 5B | 3C | 4C | |
 |
 |
 |
 |
|
| 5C | 6C | 4D | ||
 |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
Wire Definition
| Pins | 2 Pin Core Color | Pins | 3 Pin Core Color | Pins | 4 Pin Core Color A/B Code | |||
| 1 | BN |  |
1 | BN | |
1 | BN | |
| 2 | - |  |
2 | - | |
2 | WH |  |
| 3 | BU |  |
3 | BU | |
3 | BU | |
| 4 | BK |  |
4 | BK | |
|||
| - | ||||||||
| Pins | 4 Pin Core Color D Code | Pins | 5 Pin Core Color | Pins | 6 Pin Core Color | |||
| 1 | YE |  |
1 | BN | |
1 | BN | |
| 2 | WH | |
2 | WH | |
2 | WH | |
| 3 | OG |  |
3 | BU | |
3 | BU | |
| 4 | BU | |
4 | BK | |
4 | BK | |
| 5 | GY |  |
5 | - | |
|||
| 6 | GY | |
||||||
| 7 | RD |  |
||||||
| - | ||||||||
| Pins | 8 Pin Core Color | Pins | 12 Pin Core Color | Pins | 17 Pin Core Color | |||
| 1 | WH | |
1 | BN | |
1 | BN | |
| 2 | BN | |
2 | BU | |
2 | BU | |
| 3 | GN |  |
3 | WH | |
3 | WH | |
| 4 | YE | |
4 | GN | |
4 | GN | |
| 5 | GY | |
5 | PK |  |
5 | PK | |
| 6 | PK | |
6 | YE | |
6 | YE | |
| 7 | BU | |
7 | BK | |
7 | BK | |
| 8 | RD | |
8 | GY | |
8 | GY | |
| 9 | RD | |
9 | RD | |
|||
| 10 | VT |  |
10 | VT | |
|||
| 11 | OG | |
11 | OG | |
|||
| 12 | LTGN |  |
12 | LTGN | |
|||
| 13 | LTBU |  |
||||||
| 14 | BKWH |  |
||||||
| 15 | BNWH |  |
||||||
| 16 | RDWH |  |
||||||
| 17 | BUWH |  |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
PCB Pins Arrangement
| Pins | 2A | 3A | 4A | 4D | 5A |
| Male |  |
 |
 |
 |
 |
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
|
| Pins | 2A | 3A | 4A | 4D | 5A |
| Female |
|
|
|
 |
|
| 5B | 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
SKM12 B Series M12 B Coded Connectors Right Angle Metal Assembled 3PIN Female Screw type PG9
SKM12 B Series M12 B Coded Connectors Right Angle Metal Assembled 4PIN Female Screw type PG9
SKM12 B Series M12 B Coded Connectors Right Angle Metal Assembled 5PIN Female Screw type PG9
SKM12 B Series M12 B Coded Connectors Straight Metal Assembled 3PIN Female Screw type PG9
SKM12 B Series M12 B Coded Connectors Straight Metal Assembled 4PIN Female Screw type PG9
SKM12 B Series M12 B Coded Connectors Straight Metal Assembled 5PIN Female Screw type PG9
